mpn:
brand:
manufacturer:
MPN:
Weight:
0.041875
Weight:
0.041875 LB
Preferred Price:
107.53
Price:
107.53
Min Simple Price:
58.76
Absolute Min Price:
83.43
Min Price:
83.43
Dimensions:
[4.0, 3.0, 2.0]
qty:
1210
simpleSku:
DI0NTc:::XTCE009B01TD
sku:
DI0NTc::TH:XTCE009B01TD@y0
condition:
11
seller:
motorsandcontrol.com
amzMan:
cai - eaton
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Action | Non-Reversing |
| Amps | 9 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approvals | UL Listed ; CSA Certified ; IEC 60947 ; EN 60947 |
| Auxiliary Contact, Contact Configuration | 1 NC |
| Brand, Manufacturer | Eaton |
| Catalog Number, Part Number | XTCE009B01TD |
| Certification Listings | CSA, EN 60947, IEC 60947, UL |
| Coil Power, Coil Voltage | 24 Vdc |
| Coil Voltage | 24VDC |
| Coil Volts | 24 V DC |
| Contact Configuration | 1NC |
| Contact Current Rating, Full Load Amps-Inductive | 9 A |
| Control Voltage | 24 V |
| Country of Origin | Romania |
| Depth | 2.95 in |
| Frame Size, Size | B |
| Full Load Amps-Resistive | 22 A |
| Height | 2 Inch |
| Height, Width | 1.77 in |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1-1/2 |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| HP @ 230V (1ph) | 1.25 |
| HP @ 230V (3ph), Number of Poles, Poles (Closed) | 3 |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V | 3 hp |
| HP @ 460V (3ph) | 5 |

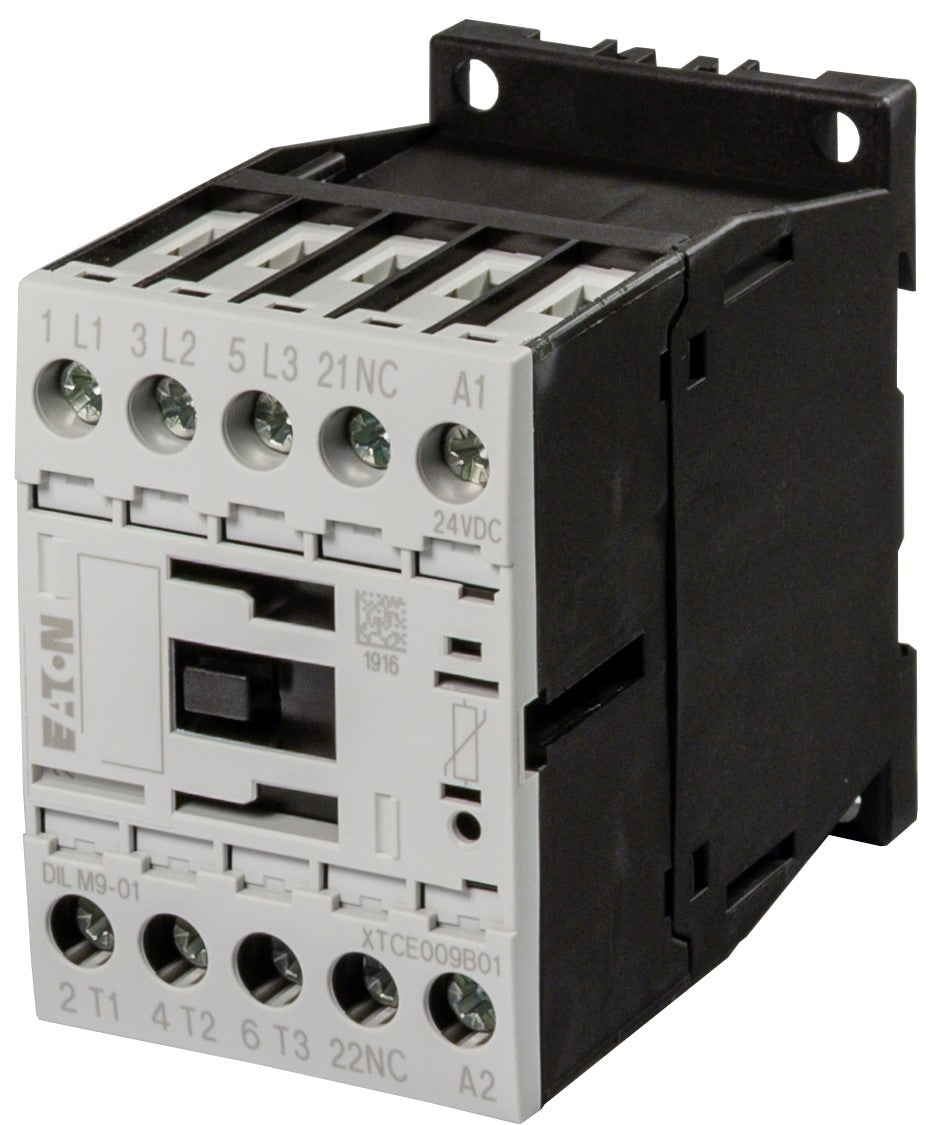

| Item | IEC Magnetic Contactor |
| Item Type | Contactors |
| Length, Overall Depth, Overall Width, Product Length/Depth, Product Width | 3 in |
| Made in USA, Reversing | No |
| Manufacturer | Eaton Cutler Hammer |
| Mounting Type | DIN Rail Mount |
| N/C Contacts | 1 |
| NEMA Size | Not Applicable |
| Overall Height, Product Height | 2 in |
| Primary Type | Contactor |
| Series | XT Series |
| Standard | CSA Certified,UL Listed,EN 60947,IEC 60947,RoHS Compliant,CE Marked |
| Terminals | Screw terminals |
| Termination | Screw |
| Type | IEC Contactor, Contactor, 1NC, Full voltage non-reversing contactor |
| UPC Code | 4015082767402 |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | motorsandcontrol.com | XTCE009B01TD | 58.76 | 58.76 | 1 | In Stock | Eaton Cutler Hammer | 58.76 @ Qty: 1+ | ||
| AmazonTP | B00VU3R1O4 | 76.26 | 76.26 | 1 | In Stock | 10 | Eaton Electrical | 76.26 @ Qty: 1+ | ||
 | controlparts.com | XTCE009B01TD | 85.6 | 85.6 | 1 | In Stock | Eaton | 85.6 @ Qty: 1+ | ||
 | Walker Industrial | XTCE009B01TD | 99.44 | 99.44 | 1 | In Stock | Eaton Cutler-Hammer | 99.44 @ Qty: 1+ | ||
 | Zoro | G2082087 | 104.99 | 104.99 | 1 | 62 | Eaton | 0.67 | 104.99 @ Qty: 1+ | |
 | sustainablesupply.com | C2883081 | 116.19 | 116.19 | 1 | In Stock | Eaton | 0.67 | 116.19 @ Qty: 1+ | |
 | Platt.com | 0898160 | 142.7 | 142.7 | 1 | In Stock | Eaton | 142.7 @ Qty: 1+ | ||
 | crescentelectric.com | 29519 | 174.22 | 174.22 | 1 | In Stock | Eaton | 174.22 @ Qty: 1+ | ||
| Newark | 48W3917 | 242.2 | 242.2 | 1 | 253 | EATON CUTLER HAMMER | 242.2 @ Qty: 1+ | |||
| us.rs-online.com | 70393988 | 243.48 | 243.48 | 1 | 15 | Eaton - Cutler Hammer | 243.48 @ Qty: 1+ | |||
 | cappusa.com | 3636678 | 245.86 | 245.86 | 1 | In Stock | Eaton | 245.86 @ Qty: 1+ | ||
| Airline Hydraulics | EATON XTCE009B01TD | 313.53 | 313.53 | 1 | 1210 | Eaton | 313.53 @ Qty: 1+ |
