| Finish | Dura Kote(TM) |
| Fitting Connection Type | JIC x Crimp |
| Fitting Material | Steel x Steel |
| Fitting Movement | Rigid |
| Fitting Shape | Straight |
| Fitting Size | 1-1/16 in x 3/4 in |
| For Hose Dash Size | -12 |
| For Hose I.D. | 3/4 in |
| For Use With Hose Series | EC525-12 to -32; EC600-12;-16; EC810-12;-16; FC254-12 to -32; FC273B-12;-16; FC500-12 to -24; FC636-12 to -32; FC736-12 to -32; GH493-12; GH506-12 to -32; H430-12 to -32; H430R-12 to -32; H464-12 to -32; H471-12 to -24; H485-16 |
| Hose Dash Size | 12 |
| Hose Fitting A Connection Type | JIC |
| Hose Fitting A Size | 1 1/16 in |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Size | 3/4 in |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Fitting Thread Size | 1-1/16"-12 |
| Hydraulic Fitting Thread Type | Male JIC |
| Hydraulic Hose I.D. | 3/4" |

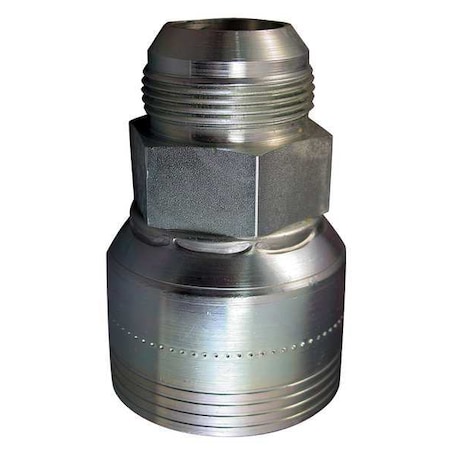

| Item | Hydraulic Crimp Fitting |
| Length (In.) | 3.42 |
| Standards | SAE J1176 |
| Thread Angle (Deg.) | 37 |
| Thread Size | 1-1/16"-12 |
| Thread Type | JIC |
