mpn:
brand:
manufacturer:
MPN:
Weight:
0.28125
Weight:
0.28125 LB
Preferred Price:
200.01
Price:
200.01
Min Simple Price:
113.0
Absolute Min Price:
160.44
Min Price:
160.44
Dimensions:
[25.0, 20.0, 2.0]
qty:
21
simpleSku:
ODM5Nw:::R2-16-60F
sku:
ODM5Nw::S2:R2-16-60F@y0
condition:
11
seller:
Zoro
amzMan:
eaton electrical
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water |
| Compatible With | Petroleum and Water Based Fluids |
| Country of Origin (subject to change) | United States |
| Cover, Hose Cover Material, Hose Tube Material, Tube | Synthetic Rubber |
| Dash Size | 16 |
| Fitting Material | Carbon Steel x Carbon Steel |
| Fitting Size | 1-5/16 in x 1-5/16 in |
| Fitting Type | FJIC x FJIC |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Hose Color | Black |
| Hose Configuration | Coupled Assembly |
| Hose Fitting A Material, Hose Fitting B Material, Hose Reinforcement Material | Carbon Steel |
| Hose Fitting A Size, Hose Fitting B Size | 1 5/16 in |
| Hose Fitting A Type, Hose Fitting B Type | FJIC |
| Hose Fittings | Carbon Steel 1-5/16"-12 FJIC x Carbon Steel 1-5/16"-12 FJIC |
| Hose Inside Dia. | 1 in |
| Hose Inside Dia. (In.) | 1" |
| Hose Length | 5 ft |
| Hose Outside Dia. | 1 3/8 in |
| Hose Outside Dia. (In.) | 1.36 |

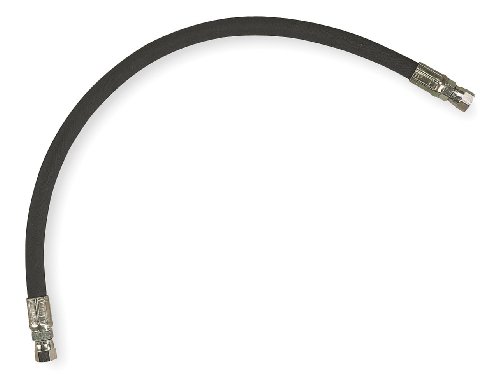

| Item | Hydraulic Hose Assembly |
| JIC Size | 1-5/16-12 |
| Max. Operating PSI | 2000 |
| Max. Working Pressure @ 70 F | 2,400 psi |
| Min. Bend Radius (In.) | 6.00 |
| Not Recommended Chemicals | 0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%) |
| NPT (In.) | - |
| Reinforcement | Braided Carbon Steel |
| Safety Factor | 4:1 |
| Series | EC215 |
| Standards | SAE J517C 100R2 |
| Temp. Range | -40 Degrees to 212 Degrees F |
| Temp. Range (F) | -40 to 212 |
| Type | High Pressure |
| Weight/Ft. (Lb.) | 0.71 |
