mpn:
brand:
manufacturer:
MPN:
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
2.5
Price:
2.5
Min Simple Price:
0.65
Absolute Min Price:
2.11
Min Price:
2.11
Dimensions:
[2.0, 2.0, 1.0]
qty:
116
simpleSku:
jk3ODM:::BK1-S501-100-R
sku:
jk3ODM::LS:BK1-S501-100-R@y0
condition:
11
seller:
Waldom
amzMan:
cooper bussman
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating, Rated voltage | 250V AC |
| Alternate Mfr Part Number | BK1-S501-100-R |
| Amps | 100 |
| Amps, Fuse Amps | 100mA |
| Approval Agency | CSA, cULus |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Brand | Eaton Bussmann series |
| Brand, Manufacturer | Eaton Bussmann |
| Breaking capacity, Breaking Capacity @ Rated Voltage, Interrupt Rating DC | 1.5kA |
| Breaking characteristics | 1.5I |
| Catalog Number, Mpn | S501-100-R |
| Category | Circuit Protection, Glass Body Fuses |
| Color, Operating Temperature | - |
| Compatible Fuse Block Series | HTB |
| Contact material | brass |
| Contact plating | silver plated |
| Country of Origin | China, CN |
| Current rating | 0.1A |
| Current Rating (Amps) | 100 mA |
| Current Stock | 9 |
| DC Cold Resistance | 20 Ohms |
| DC Voltage Rating | Not Rated |

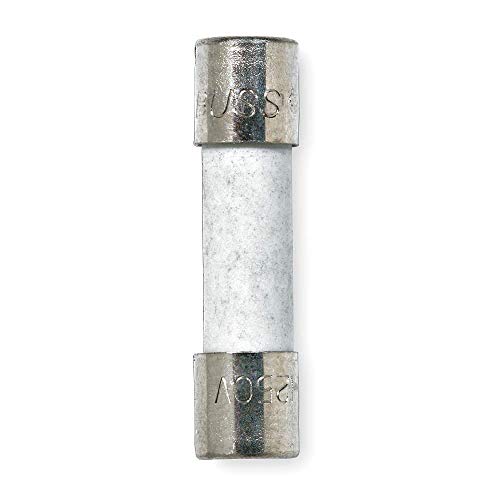

| Description | FUSE CERAMIC 100MA 250VAC 5X20MM |
| Detailed Description | 100 mA 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm |
| Diameter | 5 mm |
| Digi-Key Part Number | 283-BK1/S501-100-R-ND |
| Element | Single |
| Energy I2t | 0.0018A |
| Equivalent Brand and Series | Bussmann GDA, Bussmann S501, Littelfuse 216, Mersen GSD |
| Equivalent Series | 216, GDA, GSD, S501 |
| Fits Fuse Block Style | Nonrejection |
| Fuse characteristics | quick blow |
| Fuse Holder Code | E |
| Fuse Size | 20mm L x 5mm dia |
| Fuse size | 5x20mm |
| Fuse Speed, Speed | Fast Acting |
| Fuse Type | Cartridge, Ceramic |
| Fuse Voltage Rating | 250VAC |
| International Shipping, Made in USA | No |
| Interrupt Rating | 1.5kA at 250V AC |
| Item, Type of fuse | fuse |
| Kind of fuse | ceramic, |
| Kind of package | bag |
| Lead Time | Expected to ship in 1-2 business days |
| Length, Length (Straight Wireway) | 20 mm |
| Manufacturer | Cooper Bussmann, EATON/BUSSMANN |
| Manufacturer Product Number | BK1/S501-100-R |
| Manufacturer series, Series | S501 |
| Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer, Mfr | Eaton - Electronics Division |
| Melting I?t | 0.0018 |
| Mounting Type | Requires Holder |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Product Status | Active |
| Resistance | 20? |
| Response Time | Fast Blow |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| SKU | ZO-G1805571 |
| Standards | CE, CSA Certification, UL Guide JDYX2 |
| Sub Brand | Bussmann Series |
| SubCategory | Electrical |
| UNSPSC | 39121607 |
| UPC | 051712648813 |
| Visual Indication | Nonindicating |
| Voltage drop | 2.3V |
| Voltage Rating - AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | EATON BK1/S501-100-R | 0.65 | 19.76 | 1 | 50 | Eaton | 0.65 @ Qty: 50+ | |||
| TME | BK1-S501-100-R | 0.83 | 356.9 | 1000 | 50 | EATON/BUSSMANN | 0.83 @ Qty: 1000+ | |||
| us.rs-online.com | 74057096 | 0.86 | 369.8 | 1000 | 50 | Eaton Electronics | 0.86 @ Qty: 1000+ | |||
 | Digi-Key | 2173086 | 1.3636 | 41.45344 | 1 | 295 | Eaton - Electronics Division | 1.3636 @ Qty: 50+ | ||
| RS Delivers | 537-1537 | 1.5792 | 48.00768 | 1 | 1980 | Eaton | 1.5792 @ Qty: 50+ | |||
 | Newark | 29AJ4159 | 1.6 | 48.64 | 1 | 1568 | EATON BUSSMANN | 1.6 @ Qty: 50+ | ||
| Radwell | S501-100-R | 1.62 | 51.84 | 5 | 50 | BUSSMANN | 1.62 @ Qty: 50+ | |||
| i-components | S501-100-R | 1.959 | 62.688 | 5 | 14629 | Bussmann (Eaton) | 1.959 @ Qty: 50+ | |||
| Onlinecomponents.com | S501-100-R | 2.17 | 65.968 | 1 | 50 | BUSSMANN / EATON | 2.17 @ Qty: 50+ | |||
 | Walker Industrial | S501-100-R | 2.26 | 72.32 | 5 | 50 | 10 | Cooper Bussmann | 2.26 @ Qty: 50+ | |
 | AI Consolidated | S501-100-R-BUSSMANN | 2.47 | 75.088 | 1 | 50 | Bussmann Eaton Cooper Fuses | 0.0194 | 2.47 @ Qty: 50+ | |
| Dale-Electric | S501-100-R | 2.48 | 75.392 | 1 | 50 | Cooper Bussmann | 2.48 @ Qty: 50+ | |||
 | crescentelectric.com | 229629 | 5.22 | 158.688 | 1 | 50 | Eaton Bussmann series | 5.22 @ Qty: 50+ | ||
 | Platt.com | 0966660 | 5.42 | 164.768 | 1 | 50 | Eaton/Bussmann Series | 5.42 @ Qty: 50+ | ||
| specialtycontrolsystems.com | S501-100-R | 5.72 | 173.888 | 1 | 280 | BUSSMAN | 5.72 @ Qty: 50+ | |||
 | Zoro | G1805571 | 14.65 | 445.36 | 1 | 50 | Eaton Bussmann | 0.02 | 14.65 @ Qty: 50+ | |
 | sustainablesupply.com | C1168249 | 17.4 | 528.96 | 1 | 50 | Eaton | 0.02 | 17.4 @ Qty: 50+ | |
 | simsupply.com | ZO-G1805571 | 23.31 | 708.624 | 1 | 50 | Eaton Bussmann | 23.31 @ Qty: 50+ | ||
 | electricalparts.com | S501-100-R | 25.2672 | 768.12288 | 1 | 50 | Eaton\/Bussmann Series | 25.2672 @ Qty: 50+ | ||
 | Raptor Supplies | AB3XUZ | 42.5151675 | 1292.461092 | 1 | 50 | BUSSMANN | 42.5151675 @ Qty: 50+ |
