| AC Voltage Rating | Not Rated |
| Amps | 8 A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Class | gPV/UL PV |
| DC Voltage Rating | 1000V DC |
| Diameter | 13/32" |
| Element | Single |
| Equivalent Brand and Series | Bussmann PV-F, Littelfuse SPF, Mersen HP10M, SPFS |
| Equivalent Series | HP10M, PV-F, SPF, SPFS |
| Fits Fuse Block Style | Nonrejection |
| Fuse Amps | 8A |
| Fuse Size | 1-1/2" L x 13/32" dia |
| Fuse Voltage Rating | 1000VDC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Interrupt Rating | 33kA at 1000V DC |

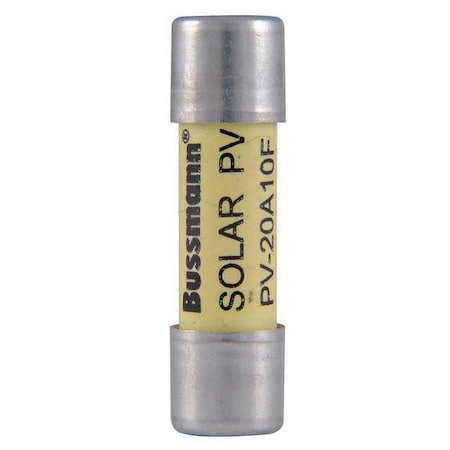

| Item | Solar Fuse |
| Length | 1-1/2" |
| Length (Straight Wireway) | 1 1/2 in |
| Rejection / Nonrejection | Nonrejection |
| Series | PV-F |
| Speed | Fast Acting |
| Standards | CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File number E335324) |
| Visual Indication | Nonindicating |
