Eaton PDG23M0150TFFJ

mpnPDG23M0150TFFJ
brandname: EATON CUTLER HAMMER
manufacturername: EATON CUTLER HAMMER

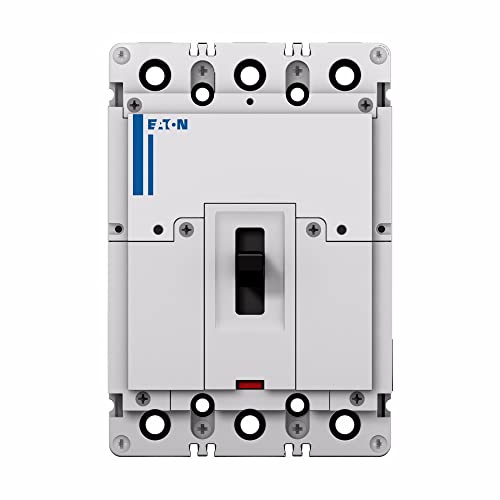

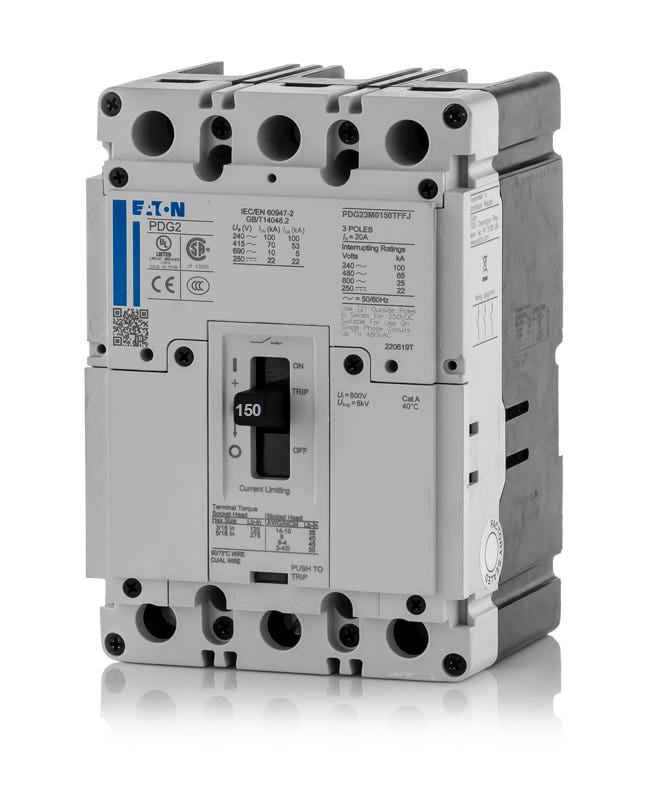

Eaton Electrical - PDG23M0150TFFJ - Eaton PDG23M0150TFFJ Power Defense MC Breaker, 3P, 150A, 65kA/480V

Eaton Electrical - PDG23M0150TFFJ - Eaton PDG23M0150TFFJ Power Defense MC Breaker, 3P, 150A, 65kA/480V

zoom

Brand: Eaton
PartNumber: PDG23M0150TFFJ
PackageQuantity: 1
Manufacturer: Eaton Electrical
Label: Eaton Electrical

Attributes

Key	Value
AC Voltage Rating	600V AC
Amperage	150
Amps	150, 150 A
Application	Generation - Convention.
Approval	IEC, CSA, CCC, UL
Brand	Eaton
Catalog Number	PDG23M0150TFFJ
Circuit Breaker Type	PD2, Standard
Connection Type	Feed-Thru
Country of Origin	Dominican Republic
Current Rating	150 A
Curve Type	A
DC Voltage Rating	Not Rated
Depth	3.5 in
Display	PDG23M0150TFFJ PD, 150A
Frame	2
Frame Size	225A/Frame 2
Frame Type	Complete Breaker
Functions	LI - Long Time and Inst.
Height	6 in
Instantaneous Trip	Fixed
Interrupt Rating	65 kAIC at 480 Vac, 65 .
Interrupt Rating AC	25 kA
Interrupting Rating	65kAIC at 480VAC
Item	Circuit Breaker
Item Type	Molded case circuit bre.
Made in USA	No
Manufacturer	Eaton Cutler Hammer, Ea.
Max Wire Size	1/0 AWG
Max. AIR Rating	65 kA at 480V AC
Max. Operating Temp.	158 Degrees F
Max. Wire Size	1/0 AWG
Min Wire Size	14 AWG
Min. Operating Temp.	-4 Degrees F
Min. Wire Size	14 AWG
Mounting	Panel
Mounting Type	Din Rail
Mpn	PDG23M0150TFFJ
Number of Poles	3
Part Number	PDG23M0150TFFJ
Phase	3, Three
Phase Connection	ABC
Poles	3
Protection	Thermal Magnetic
Series	PD
Standard	CCC Marked,IEC 60947-2,.
Standards	RoHS, CCC, CSA, IEC 609.
Temperature Rating	-4 to 158?F
Terminal Connection	Standard Line and Load .
Trip Type	Thermal Magnetic, T-M (.
UPC	786679237083
Upc	786679237083
Voltage	600VAC, 250VDC
Voltage Rating	600 Vac
Volts AC	600
Width	4.11 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G400901829	1058.99	1	In Stock		Eaton	4.0	1058.99 @ 1
	Platt.com	1532935	1153.7	1	3		Eaton		1153.7 @ 1
	motorsandcontrol.com	PDG23M0150TFFJ	1227.33	1	In Stock		Eaton Cutler Hammer		1227.33 @ 1
	superbreakers.com	PDG23M0150TFFJ	1297.8	1	11		Eaton		1297.8 @ 1
	crescentelectric.com	1126857	1354.03	1	In Stock		Eaton		1354.03 @ 1
	midwestapplianceparts.com	PDG23M0150TFFJ-CU-P	1502.82	1	In Stock		Cutler Hammer		1502.82 @ 1
	us.rs-online.com	71939212	1592.72	1	1		Eaton - Cutler Hammer		1592.72 @ 1
	Newark	73AH7378	1656.43	1	In Stock		EATON CUTLER HAMMER		1656.43 @ 1
