| AC Voltage Rating | 125V AC |
| Alarm Contact | No |
| Alternate Mfr Part Number | GMC-7-R |
| Amperage Rating: | 7 A |
| Amps | 7A |
| Application | Electronic Circuits |
| Approval Agency | MITI, UL |
| Approvals | CSA, UL |
| Body Material | Glass |
| Body Style | Cylindrical |
| Brand | Eaton Bussmann series, Eaton Bussmann |
| Breaking Capacity @ Rated Voltage | 200A |
| Catalog Number | GMC-7-R |
| Category | Circuit Protection, Glass Body Fuses |
| Characteristic | Time Delay |
| Color | - |
| Compatible Fuse Block Series | HTB |
| Connection | Ferrule End X Ferrule End |
| Connection: | Ferrule End X Ferrule End |
| Country of Origin | CN - China, China, CN |
| Current Rating | 7 A |
| Current Rating (Amps) | 7 A |
| Current Stock | 47 |
| DC Cold Resistance | 0.012 Ohms |
| DC Voltage Rating | Not Rated |

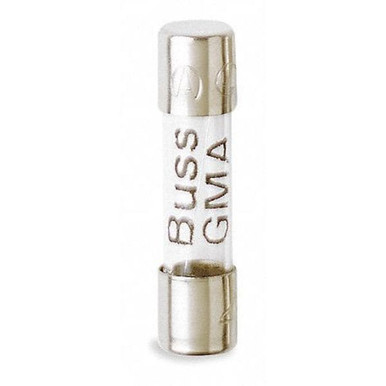

| Description | FUSE GLASS 7A 125VAC 5X20MM |
| Detailed Description | 7 A 125 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm |
| Diameter | 5 mm |
| Diameter (in) | 0.2 " |
| Diameter (mm) | 5 mm |
| Digi-Key Part Number | GMC-7-R-ND |
| ECCN | EAR99 |
| Element | Single |
| End Type | Ferrule |
| Equivalent Brand and Series | Bussmann GMC, Littelfuse 239, Mersen GSC |
| Equivalent Series | 239, GMC, GSC |
| Family Series | Bussmann Fuses, GMC Series |
| Fits Fuse Block Style | Nonrejection |
| Functionally Equal To | Littelfuse 239, Mersen/Ferraz Shawmut GSC |
| Fuse Amps | 7A |
| Fuse Dimension | 5 Dia. x 20 L mm |
| Fuse Holder Code | E |
| Fuse Interrupt Rating | 200A |
| Fuse Size | 20mm L x 5mm dia |
| Fuse Type | Cartridge, Glass, Time Delay Fuse |
| Gross Weight | 8 lbs |
| In Line Fuseholder | E |
| International Shipping | No |
| Interrupt Rating | 200A at 125V AC |
| Item | Fuse |
| Item Number | GMC-7-R |
| Item Type | Electronic, Medium Time Delay |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 20 mm |
| Length (In) | 0.8 " |
| Length (mm) | 20.32 mm |
| Length (Straight Wireway) | 20 mm |
| Made in USA | No |
| Manufacturer | Eaton - Electronics Division, Eaton Bussmann, Cooper Bussmann, Bussmann |
| Manufacturer Part Number | GMC-7-R |
| Manufacturer Product Number | GMC-7-R |
| Manufacturer Standard Lead Time | 6 Weeks |
| Material | Glass |
| Melting I?t | 150 |
| Mfr | Eaton - Electronics Division |
| Mounting Type | Requires Holder |
| Mpn | GMC-7-R |
| Net Weight | 0.005 lbs |
| Operating Temperature | - |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Package Type | Cartridge |
| Product Series | GMC |
| Product Status | Active |
| Rated Voltage | 125V |
| Rejection / Nonrejection | Nonrejection |
| Response Time | Medium Blow, 60 Min Maximum at 135%, 2 Min Maximum at 200% |
| Response Time: | 120/3.6k s |
| RoHS | Yes |
| Series | GMC, GMC Series |
| Size | 5.20 mm Diameter X 20.00 mm Height |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Size: | 5.20 mm Diameter X 20.00 mm Height |
| SKU | ZO-G0994034 |
| Special Features | Low Breaking Capacity, Interrupt Rating 200 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Speed | Time Delay |
| Standard | UL 248-14, CSA, CE |
| Standard: | UL 248-14, CSA, CE |
| Standards | UL Guide JDYX2, File E19180, MITI Approval |
| SubCategory | Electrical |
| Trip Indicator | No |
| Type | Fuse, Electronic, Time Delay |
| Type: | Electronic, Medium Time Delay |
| UNSPSC | 39121607 |
| UPC | 051712643054 |
| Visual Indication | Glass Fuse |
| Voltage (AC) | 125 VAC |
| Voltage Rating | 125 VAC |
| Voltage Rating - AC | 125 V |
| Voltage Rating: | 125 VAC |
