| AC Voltage Rating | 250V AC |
| Alternate Part No. | 504-GDA-630MA |
| Amperage Rating:, Current Rating, Current Rating (Amps) | 630 mA |
| Amps | 0.630, 630mA |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems, Electronic circuits |
| Approval Agency | CSA, UR |
| ASIN | B00FV20HZU |
| Body Material, Material | Ceramic |
| Body Style | Cylindrical |
| Brand | Bussmann / Eaton, Eaton Bussmann series |
| Brand, Manufacturer | Eaton Bussmann |
| Breaking Capacity @ Rated Voltage, Interrupt Rating AC | 1.5kA |
| Case Diameter | 5.2 mm |
| Case Length, Length, Length (Straight Wireway) | 20 mm |
| Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, Mpn | GDA-630MA |
| Category | Circuit Protection, Ceramic Fuses |
| Color, Operating Temperature | - |
| Compatible Fuse Block Series | HTB |
| Connection, Connection:, End Type | Ferrule End X Ferrule End |
| Country of Origin | CN - China, China, CN |
| Current Rating | 0.63 A |
| Current Stock | 97 |
| DC Cold Resistance | 0.34 Ohms |
| DC Voltage Rating | Not Rated |

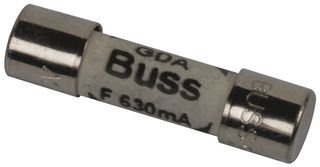

| Description | FUSE CERAMIC 630MA 250VAC 5X20MM |
| Detailed Description | 630 mA 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm |
| Diameter | 5 mm |
| Digi-Key Part Number | GDA-630MA-ND |
| Dimensions | 0.5625 x 2 in, 20 mm L x 5.2 mm D |
| ECCN | EAR99 |
| Element | Single |
| Equivalent Brand and Series | Bussmann GDA, Bussmann S501, Littelfuse 216, Mersen GSD |
| Equivalent Series | 216, GDA, GSD, S501 |
| Family Series | Bussmann Miscellaneous |
| Fits Fuse Block Style | Nonrejection |
| Frequency Rating, Frequency Rating: | 50 Hz |
| Functionally Equal To | Littelfuse 216, Mersen/Ferraz Shawmut GSD |
| Fuse Amps | 0.630A |
| Fuse Dimension | 20 L x 5 mm Dia. |
| Fuse Interrupt Rating | 1.5kA at 250VAC, 15kA at 250 V ac |
| Fuse Size | 20mm L x 5mm dia |
| Fuse Size/Group | 5 mm x 20 mm |
| Fuse Speed, Speed | Fast Acting |
| Fuse Type | Cartridge, Ceramic |
| Fuse Type, Response Time | Fast Blow |
| Gross Weight | 0.0706 lbs |
| Height, Width | 0.1969 in. |
| Indicating / Nonindicating, Visual Indication | Nonindicating |
| Indicator Style | Without Indicator |
| International Shipping, Made in USA | No |
| Interrupt Rating | 1.5kA at 250V AC, 1.5 kA, 1.5 kAIC at 250 Vac |
| Item | Fuse |
| Item Package Quantity | 1 |
| Item Type | Fast-acting fuse |
| Lead Time | Expected to ship in 1-2 business days |
| Length | 0.7874 in. |
| Manufacturer | Eaton, Cooper Bussmann, Bussmann |
| Manufacturer Part No., Part Number | BK/GDA-630MA |
| Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer, Mfr | Eaton - Electronics Division |
| Material | Ceramic tube|Nickel-plated brass end cap construction, Ceramic Tube, Nickel-Plated Brass Endcap |
| Melting I?t | 0.064 |
| Mounting | Cartridge |
| Mounting Style | Holder / Clip |
| Mounting Type | Requires Holder |
| Net Weight | 0.005 lbs |
| Opening | Fast-Acting |
| Package / Case | 5mm x 20mm |
| Package, Packaging | Bulk |
| Part # Aliases | BK-GDA-630MA |
| Product | Specialty Fuses |
| Product Category | Cartridge Fuses |
| Product Status | Active |
| Product Type | Ceramic Fuse |
| Rated Voltage | 250V ac/32V dc |
| Resistance | 340 mOhms |
| Series | GDA |
| Shape | Rectangular |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Size, Size: | 5.20 mm Diameter X 20.00 mm Height |
| SKU | ZO-G0579801 |
| Special Features | High Breaking Capacity, Interrupt Rating 1500 Amp at 250 Vac, Material Ceramic Tube, Nickel Plated Brass Endcap |
| Standard | VDE,CCC Marked,CE Marked |
| Standard: | UL, CSA |
| Standards | CE, CSA Certification File 53787, UL Guide JDYX2, UR |
| Sub Brand | Bussmann Series |
| SubCategory | Electrical |
| Termination Style | Clip |
| Type | Fast Acting High Breaking Capacity Fuse |
| Type: | Electronic, Fast Acting |
| Unit Weight | 1.361 g |
| UNSPSC | 39121611 |
| UPC | 051712431279 |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
| Voltage Rating - AC, Voltage Rating AC | 250 V |
| Voltage Rating: | 250 VAC |
| Volts AC | 250 |
