mpn:
brand:
manufacturer:
MPN:
Description:

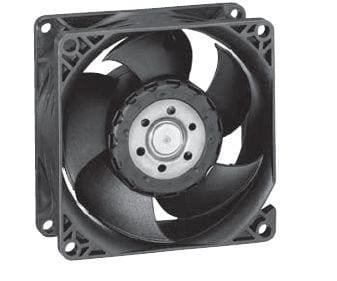

DC Fan, 24V, 80x80x38, 112FM, 66dBA, 25W, Wire Leads
Weight:
0.0275
Weight:
0.0275 LB
Preferred Price:
114.1
Price:
114.1
Min Simple Price:
62.35
Absolute Min Price:
88.53
Min Price:
88.53
Dimensions:
[4.0, 4.0, 2.0]
qty:
21
simpleSku:
TYzODg:::8214JH3
sku:
TYzODg::AU:8214JH3@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
ebm-papst
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Air Flow | 112.0 CFM (3.14m?/min), 112 CFM |
| Approval Agency, Current Rating (Amps), Features, Ingress Protection, Static Pressure | - |
| Approvals | CSA, UL, VDE |
| Approximate Size | 3.2 x 3.2 in. ; 80 x 80 mm |
| Approximate Thickness | 1.5 in. ; 38 mm |
| Base Product Number | 8214J |
| Bearing Type | Ball |
| Category | Fans, Thermal Management |
| Configuration, Type | Square |
| Description | FAN AXIAL 80X38MM 24VDC WIRE |
| Detailed Description | Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 112.0 CFM (3.14m?/min) 2 Wire Leads |
| Digi-Key Part Number | 381-3007-ND |
| Dimensions | 3.2 x 3.2 x 1.5 . ; 80 x 80 x 38 in ; mm |
| Family Series | ebm-papst, Inc. Fans, DC INPUT SQUARE Series |
| Fan Type | Tubeaxial, DC |
| Gross Weight | 0 lbs |
| Impeller Material, Material | Plastic |
| Item Number, Manufacturer Part Number, Manufacturer Product Number | 8214JH3 |
| Lifetime @ Temp. | 55000 Hrs @ 40?C |
| Manufacturer | ebm-papst, Inc. |
| Manufacturer Standard Lead Time | 71 Weeks |
| Manufacturer, Mfr | ebm-papst Inc. |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Maximum Operating Temperature | 70 C |
| Minimum Operating Temperature | -20 C |
| Net Weight | 0.44 lbs |
| Noise | 66.0dB(A) |
| Noise Level | 66 dBA, 66 dB |
| Nominal Depth | 38 mm |
| Nominal Height, Nominal Width | 80 mm |
| Nominal Voltage, Operating Voltage | 24 VDC |
| Operating Temperature | -4 ~ 158?F (-20 ~ 70?C) |
| Package | Bulk |
| Power (Watts) | 26 W |
| Power Consumption, Power Rating | 25 W |
| Product Series | DC INPUT SQUARE |
| Product Status | Active |
| RoHS | Yes |
| Rotation | Clockwise, CW |
| RPM | 12000 RPM |
| Series | 8200J, 8200J Series |
| Size | 3.2 x 1.5 (80 x 38) In. (mm) |
| Size / Dimension | Square - 80mm L x 80mm H |
| Special Features | Impeller with Winglets |
| Tachometer Output | No |
| Termination | Wire Leads, 2 Wire Leads |
| Voltage - Rated | 24VDC |
| Voltage Range | 12 ~ 27.6VDC |
| Voltage Rating | 24 V |
| Weight | 0.44 Lbs., 0.353 lb (160.12 g) |
| Width | 38.00mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 8214JH3 | 62.35 | 62.35 | 1 | 49 | EBM-PAPST | 62.35 @ Qty: 1+ | |||
 | Galco | 8214JH3-EBM | 76.49 | 76.49 | 1 | In Stock | ebm-papst, Inc. | 0.44 | 76.49 @ Qty: 1+ | |
| Master Electronics | 8214JH3 | 80.74 | 80.74 | 1 | 27 | ebm-papst | 80.74 @ Qty: 1+ | |||
| us.rs-online.com | 70105255 | 85.02 | 85.02 | 1 | In Stock | ebm-papst | 0.44 | 85.02 @ Qty: 1+ | ||
 | Digi-Key | 7100960 | 85.2 | 85.2 | 1 | 82 | ebm-papst Inc. | 0.353 | 85.2 @ Qty: 1+ | |
| Newark | 05R8850 | 87.13 | 1306.95 | 36 | In Stock | EBM-PAPST | 87.13 @ Qty: 25+ | |||
| RS Delivers | 826-0853 | 96.18 | 96.18 | 1 | In Stock | ebm-papst | 96.18 @ Qty: 1+ | |||
 | Radwell | 8214JH3 | 135.0 | 135.0 | 1 | In Stock | EBM PAPST | 135.0 @ Qty: 1+ |
