- mpnW1G250-HH37-52
- brandname: ebm-papst
- manufacturername: ebm-papst

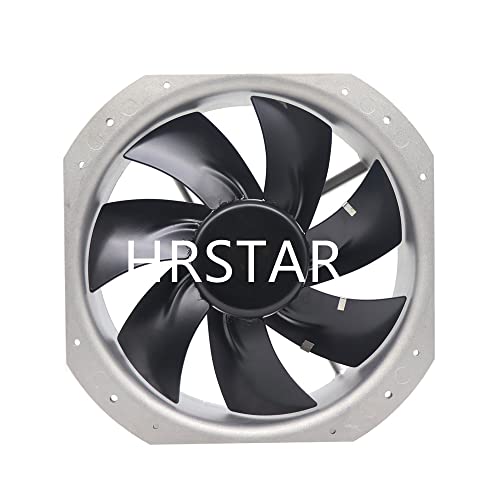

HRSTAR for Ebmpapst W1G250-HH37-52 24VDC 2750RPM 5A Axial Compact Fans
- Brand: Generic
- PartNumber: W1G250-HH37-52
- Manufacturer: ebmpapst
- Label: ebmpapst
Attributes
| Key | Value |
|---|
| AC or DC Operation | DC |
| Air Flow | 1,130.1 CFM, -, 1920m?/. |
| Approval Agency | CSA, EAC, UL |
| Approvals | CSA, UL, VDE |
| Approximate Size | 11 x 11 in. ; 280 x 280. |
| Approximate Thickness | 3.2 in. ; 81 mm |
| Base Product Number | W1G250 |
| Bearing Type | Ball |
| Brand | ebm-papst |
| Category | Fans, Thermal Management |
| Configuration | Square |
| Current Rating | 5 A |
| Current Rating (Amps) | 5.00A |
| Depth | 80mm |
| Dimensions | 11 x 11 x 3.2 . ; 280 x. |
| Direction of Curve | Backward |
| Family Series | ebm-papst, Inc. Fans, D. |
| Fan Speed | 2750rpm |
| Fan Type | Tubeaxial, DC |
| Features | Locked Rotor Protection. |
| Gross Weight | 5.17 lbs |
| Height | 320mm |
| Impeller Material | Metallic |
| Ingress Protection | IP42 |
| Item Number | W1G250-HH37-52 |
| Lifetime @ Temp. | - |
| Manufacturer | ebm-papst, Inc. |
| Manufacturer Part Number | W1G250-HH37-52 |
| Material | Diecast Aluminum |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Maximum Current | 5A |
| Maximum Operating Tempe. | 80 C |
| Mfr | ebm-papst Inc. |
| Minimum Operating Tempe. | -40 C |
| Net Weight | 5.17 lbs |
| Noise | - |
| Noise Level | 70 dBA, 70 dB |
| Nominal Depth | 80 mm |
| Nominal Height | 280 mm |
| Nominal Voltage | 24 VDC |
| Nominal Width | 280 mm |
| Operating Temperature | -13 ~ 140?F (-25 ~ 60?C) |
| Operating Voltage | 24 VDC |
| Package | Bulk |
| Part Status | Active |
| Power (Watts) | 105 W |
| Power Consumption | 105 W, 105W |
| Power Rating | 105 W |
| Product Series | DC INPUT SQUARE |
| RoHS | Yes |
| Rotation | CCW, Counter Clockwise |
| RPM | 2750 RPM |
| Series | W1G250, W1G250 Series |
| Size | 11 x 3.2 (280 x 80) In.. |
| Size / Dimension | Square - 280mm L x 280m. |
| Speed | 2750 RPM |
| Static Pressure | 0.36 in H2O (89.7 Pa), . |
| Supply Voltage | 24 V dc |
| Tachometer Output | No |
| Termination | Terminal Block |
| Type | Square |
| Voltage - Rated | 24VDC |
| Voltage Range | 16 ~ 28VDC |
| Voltage Rating | 24 V |
| Weight | 5.52 Lbs. |
| Width | 280mm, 80.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | W1G250-HH37-52 | 364.99 | 1 | In Stock | | EBM-PAPST | | 364.99 @ 1 |
| Digi-Key | 8612043 | 452.15 | 10 | In Stock | | ebm-papst Inc. | | 452.15 @ 1 |
 | Galco | W1G250-HH37-52-EBM | 458.4 | 1 | 3 | | ebm-papst, Inc. | 5.17 | 458.4 @ 1 |
 | Newark | 83H2896 | 461.93 | 1 | 56 | | EBM-PAPST | | 461.93 @ 1 |
| AmazonTP | B005T8L250 | 489.28 | 1 | In Stock | 2 | Ebm-Papst | | 489.28 @ 1 |
| AmazonSC | B005T8L250 | 554.98 | 1 | In Stock | | Ebm-Papst | | 554.98 @ 1 |
| Master Electronics | W1G250-HH37-52 | 570.066 | 1 | 6 | | ebm-papst | | 570.066 @ 1 |
 | Radwell | W1G250-HH37-52 | 580.0 | 1 | In Stock | | EBM PAPST | | 580.0 @ 1 |
| us.rs-online.com | 70105160 | 590.56 | 1 | In Stock | | ebm-papst | 5.52 | 590.56 @ 1 |
 | RS Delivers | 825-7973 | 738.024 | 1 | In Stock | | ebm-papst | | 738.024 @ 1 |
