- mpnDRKAD2217402
- brandname: Elkay
- manufacturername: Elkay

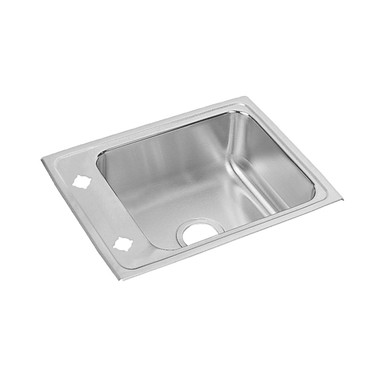

Elkay DRKAD2217402 Sink, Stainless Steel
- Brand: Elkay
- PartNumber: DRKAD2217402
- Model: DRKAD2217402
- Color: Stainless Steel
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Elkay
- Label: Elkay
Attributes
| Key | Value |
|---|
| 1 faucet hole | /elkay-lustertone-class. |
| 2 faucet holes | /elkay-lustertone-class. |
| ADA | Yes |
| ADA Compliant | Yes |
| ANSI Specifications | ANSI A117.1 |
| Application | Classroom |
| ASME Compliant | Yes |
| ASME Specifications | ASME A112.19.3 |
| Basin Depth | 3-7/8 in |
| Basin Length | 16 in |
| Basin Width | 13-1/2 in |
| Body Material | Stainless steel |
| Bowl 1 Depth | 3.88 |
| Bowl 1 Length | 16.00 |
| Bowl 1 Shape | Rectangular |
| Bowl 1 Width | 13.50 |
| Bowl 3 Depth | 0 |
| Bowl Depth | 3-7/8" |
| Bowl Depth (in) | 3.875 |
| Bowl Depth Range (in) | 3 to 4 |
| Bowl Length (in) | 16 |
| Bowl Shape | Rectangle |
| Bowl Size | 16 in L x 13-1/2 in W x. |
| Bowl Width (in) | 13.5 |
| Brand | Elkay |
| Built In The Usa | Yes |
| Buy American Act Compli. | Yes |
| Capacity | 3.2 gal |
| CARB OTC LEED Compliant | No |
| Center Size | 11 in |
| Certifying Agency | IAPMO (cUPC_sinks) |
| Collection | Lustertone?, Lustertone. |
| Color | Lustrous Satin |
| Color Finish | Lustrous Highlighted Sa. |
| Color Finish Category | Stainless steel |
| Color/Finish Family | Stainless steel |
| Countertop Cut Out Dim | 21-3/8'' x 16-3/8'' (54. |
| Country of Origin (subj. | United States |
| CSA Certified | CSA B45.4 |
| Current Stock | Out Of Stock |
| Depth | 4.00", 4", 4 in, 4 Inch |
| Description: | 18 Gauge Stainless Stee. |
| Domestic/Import | Domestic |
| Drain Diameter | 3-1/2 in |
| Drain Location | Center |
| Drain Opening | 3-1/2", 3-1/2 in |
| Drain Opening Size | 3-1/2 in |
| Drain Placement | Center |
| Drain Position | Center |
| Drain Size Bowl 1 | 3.50 |
| Faucet Hole Config Of S. | 2 |
| Faucet Hole Drilling | 1-1/2 in |
| Faucet Hole Size | 1.5 |
| Faucet Hole Spacing | 11 in |
| Faucet Holes | 2 |
| Finish | Lustrous Satin |
| Finish/Color | Lustertone |
| Gauge | 18 |
| GSA Approved | No |
| Hardware Included | Yes |
| Height | 4.00", 4 in |
| Height (in) | 4 |
| Holes | 2 |
| IAPMO Listed | Yes |
| Installation Sheet | Installation Sheet |
| Installation Type | Drop-In, Top Mount |
| Installation Type Sinks | Drop in |
| Introduction Date | 6/3/12 |
| Item | Classroom Sink |
| Length | 22.00", 22 in, 22", 22 . |
| Length (in) | 22 |
| Made In | United States |
| Made in USA | Yes |
| Maintenance Sheet | Maintenance Sheet |
| Manufacturer | Elkay, ELKAY MFG COMPANY |
| Material | Stainless steel, 18 ga.. |
| Material Gauge | 18 Gauge |
| Material Type | 304 |
| MFG Part #: | DRKAD2217402 |
| Minimum Cabinet Size | 27 |
| Minimum Order Quantity | 1 |
| Minimum Purchase | 1 unit |
| Mount Type | Drop in |
| Mounting Hardware Inclu. | Part No. 64090012 inclu. |
| Mounting Type | Drop-In, Top |
| No. of Bowls | 1 |
| NSF Certified | No |
| Number of Basins | 1 |
| Number Of Bowls | 1 |
| Number of Bowls | 1, One Bowl |
| Number of Faucet Holes | 2 |
| Number of Holes | 2, 2 Hole |
| Origin | Domestic |
| Overall Dimensions | 17 in W x 4 in H |
| Overall Height | 4" |
| Overall Length | 22" |
| Overall Sink Size | 22 in x 17 in |
| Overall Width | 17" |
| Overflow Included Yes o. | No |
| Product | Sink |
| Product Collection | Lustertone |
| Product Compliance | ICC A117.1,ASME A112.19. |
| Product Line | Elkay Residential |
| Reference ID | 83251 |
| Room | Classroom |
| Room Designation | Classroom |
| Series | 2 Faucet Holes |
| Shape | Rectangle, Rectangular |
| Shipping | L:23.31"x W:8.94"x H:23. |
| Side Spray | No |
| Sink Bowl Size | 16 in x 13-1/2 in x 3-7. |
| Sink Depth | 4 in |
| Sink Installation Type | Drop-In |
| Sink Size Range | 21 in - 25 in |
| SKU | DRKAD2217402, ELK_DRKAD. |
| Sound Deadening | Bottom only pads, Full . |
| Spec Sheet | Spec Sheet |
| Stock Status | Currently Out of Stock |
| Style | Traditional |
| Suggested Accessories | LKWBG1316SS/LKSB16EA/LK. |
| Supplier: | ELKAY MFG COMPANY |
| Thickness | 0.0461 in |
| Type | Classroom Sink |
| Unit Of Measure | Each |
| UPC | 094902296111 |
| UPC: | 094902296111 |
| Warranty Sheet | Warranty Sheet |
| Weight (lb) | 12.75 |
| Width | 17.00", 17 in, 17", 17 . |
| With Faucet / Without F. | Without Faucet |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | PlumbersStock | 74462 | 433.66 | 1 | In Stock | | Elkay | 12.75 | 433.66 @ 1 |
 | Zoro | G8826102 | 438.47 | 1 | In Stock | 25 | Elkay | 14.03 | 438.47 @ 1 |
 | Faucet Shark | ELKAY-DRKAD2217402 | 439.2 | 1 | In Stock | | Elkay | | 439.2 @ 1 |
 | kbauthority.com | DRKAD2217402 | 495.94 | 1 | In Stock | | Elkay | | 495.94 @ 1 |
 | plumbing-deals.com | ELKDRKAD2217402 | 545.69 | 1 | In Stock | | Elkay | | 545.69 @ 1 |
| Chicago Faucet Shoppe | ELK-DRKAD2217402 | 548.4 | 1 | In Stock | | Elkay | | 548.4 @ 1 |
 | Bath1 | ELK_DRKAD2217402 | 567.52 | 1 | In Stock | | Elkay | 12.75 | 567.52 @ 1 |
 | citysupplygroup.com | DRKAD2217402 | 591.82 | 1 | In Stock | | Elkay | | 591.82 @ 1 |
| kscdirect.com | ELK DRKAD2217402 | 616.46 | 1 | In Stock | | ELKAY MFG COMPANY | | 616.46 @ 1 |
 | sustainablesupply.com | C2957803 | 682.09 | 1 | In Stock | | Elkay | 12.75 | 682.09 @ 1 |
| ferguson.com | 1679928 | 685.5 | 1 | In Stock | | Elkay | | 685.5 @ 1 |
 | Edge Supply | DRKAD2217402 | 914.0 | 1 | In Stock | | Elkay | | 914.0 @ 1 |
