Emerson / Nidec / US Motors EEQ750

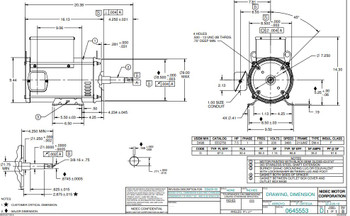

EEQ750 US Motors Close Coupled Pump Motor 7.5 HP 3600 RPM 213JMZ FRAME SINGLE PHASE 230 VOLT 30.4 FLA 1.15 S.F. SINGLE SPEED ODP RIGID BASE OUTLINE: https://apps.motorboss.com/dimensions/0645553.pdf Pool and Spa motors - Close Coupled Pumps. Pentair EQ Series Replacement Pool Motors. Premium Efficient, Full Service Factor, Full Rated. Continuous duty, Class F Insulated, Black Paint, Special Ground Lug, 300 Series Stainless Steel Shaft. Permanently Lubricated Bearings: Opposite End Bearing 6205-2Z-JC3, Shaft End Bearing 6309-2Z-J/C3 CROSS REFERENCE: DA98
