Description:

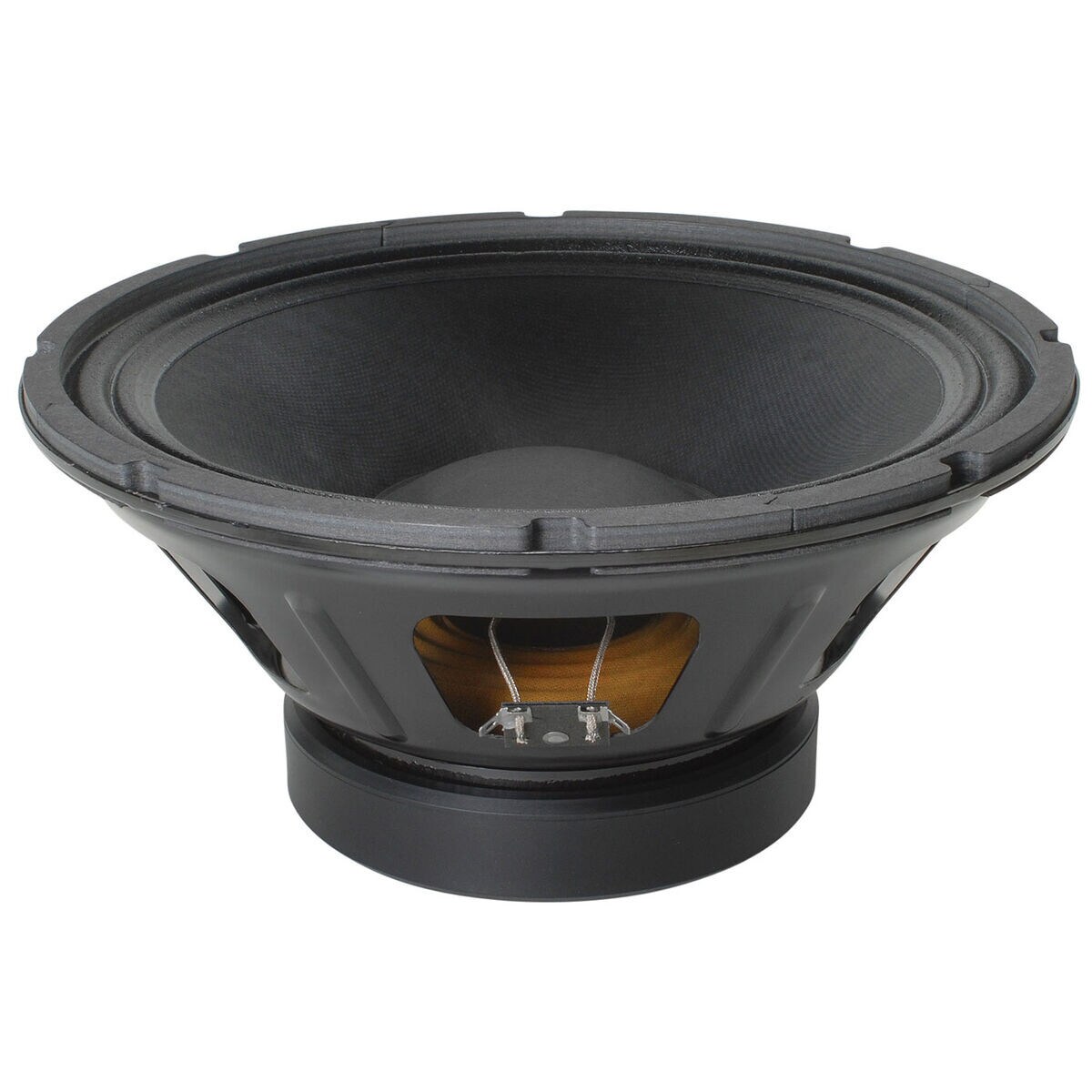

Eminence Delta-12LFC 12" Driver 4 Ohm. Part Number: 290-464 by Eminence Speaker.
Attributes
| Key ^ | Value |
|---|---|
| # Mounting Holes | 8 |
| Baffle Cutout Diameter | 10.95" |
| Basket / Frame Material | Steel |
| BL Product (BL) | 10.9T?m |
| Brand | Eminence Speaker |
| Compliance Equivalent Volume (Vas) | 2.25ft? |
| Cone Material | Paper |
| DC Resistance (Re) | 3.2? |
| Depth | 5.88" |
| Diaphragm Mass Inc. Airload (Mms) | 53g |
| Electromagnetic Q (Qes) | 0.47 |
| Frequency Response | 45 to 2,300Hz |
| Impedance | 4? |
| Magnet Material | Ferrite |
| Maximum Linear Excursion (Xmax) | 4.8mm |
| Mechanical Compliance of Suspension (Cms) | 0.17mm/N |
| Mechanical Q (Qms) | 8.21 |
| Model | Delta-12LFC |
| Nominal Diameter | 12" |
| Overall Outside Diameter | 12.03" |
| Part Number | 290-464 |
| Power Handling (MAX) | 1000 Watts |
| Power Handling (RMS) | 500 Watts |
| Resonant Frequency (Fs) | 52Hz |
| Sealed F3 | 108Hz |
| Sealed Volume | 1.25ft? |
| Sensitivity | 93.1dB 2.83V/1m |
| Surface Area of Cone (Sd) | 506.7cm? |
| Surround Material | Cloth |
| Total Q (Qts) | 0.44 |
| Unit of Measure | Each |
| UPC | 876358001712 |
| Vented F3 | 45Hz |
| Vented Volume | 2.9ft? |
| Voice Coil Diameter | 2.5" |
| Voice Coil Former | Kapton? / Polyimide |
| Voice Coil Inductance (Le) | 0.94mH |
| Voice Coil Wire Material | Copper |
| Weight | 14 |
