- mpnZE4320SB
- brandname: Enerpac
- manufacturername: Enerpac

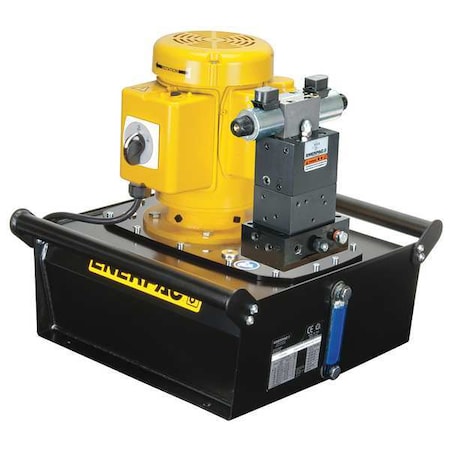

Enerpac ZE4320SB Hydraulic Pump, Electric, Induction, Solenoid 3-Position Valve with Electric Box and LCD, Usable Oil Capacity 5 gallons, 1.5 hp
- Brand: Enerpac
- PartNumber: ZE4320SB
- Model: ZE4320SB
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Enerpac
- Label: Enerpac
Attributes
| Key | Value |
|---|
| Amps AC | 13.6 A |
| Application | Production and Lifting |
| Brand Name | ENERPAC? |
| Control Pendant Size (F. | 10 |
| Control Pendant Voltage | 24V DC |
| Control Valve | Remote, 3 Way, 3 Positi. |
| Country of Origin (subj. | United States |
| Cylinder Compatability | Single-acting |
| Cylinder compatability | Single-acting |
| dBA | 75 |
| Duty cycle | Extended |
| Fluid Port NPT (In.) | 3/8 |
| HP | 1.5 hp |
| Includes | LCD Readout |
| Item | Hydraulic Pump |
| Manufacturer | Enerpac Tool Group |
| Manufacturer Part Number | ZE4320SB |
| Max flow at rated press. | 60 in3/min |
| Max operating pressure . | 10,000 |
| Maximum Flow at Rated P. | 60 in?/min |
| Maximum Operating Press. | 10,000 |
| Maximum Pressure | 10,000 psi |
| Motor Electrical Specif. | 115 V, 1 Ph, 50/60 Hz |
| Motor electrical specif. | 115 V, 1 Ph, 50/60 Hz |
| Motor hertz | 50/60 Hz |
| Motor Hertz | 50/60 Hz |
| Motor phases | 1 Ph |
| Motor size (HP) | 1.5 |
| Motor Size (HP) | 1.5 |
| Motor size (RPM) | 1,750 |
| Motor Size (rpm) | 1,750 |
| Motor Type | Induction |
| Motor voltage | 115 V |
| Oil Displacement @ 0-20. | 645 cu in/min |
| Oil Displacement @ 10,0. | 60 cu in/min |
| Oil Displacement @ 100 . | 650 cu in/min |
| Oil Displacement @ 1000. | 625 cu in/min |
| Oil Displacement @ 200-. | 60 to 645 cu in/min |
| Oil Displacement @ 5000. | 62 cu in/min |
| Oil Displacement @ 5000. | 62 cu in/min |
| Oil Displacement @ 700 . | 600 cu in/min |
| Operating Pressure Rang. | Up to 10000 |
| Output flow rate 100 (p. | 650 |
| Output flow rate 10000 . | 60 |
| Output flow rate 5000 (. | 62 |
| Output flow rate 700 (P. | 600 |
| Package Quantity | 1/Each |
| Promotion Restriction | Not eligible for promot. |
| Pump Control | Pendant |
| Pump control | Pendant |
| Pump power source | Electric |
| Pump Power Source | Electric |
| Pump valve type | 3-way, 3-position, Tand. |
| Pump Valve Type | 3-way, 3-position, Tand. |
| Relief valve adjustment. | 1,000 - 10,000 |
| Relief Valve Adjustment. | 1,000 - 10,000 |
| Relief Valve Range | 1000 to 10,000 psi |
| Reservoir Capacity (Cu.. | 1,155 |
| Reservoir Capacity (Gal. | 5 |
| Reservoir capacity (in3) | 1,201 |
| Reservoir Material | Steel |
| Series | ZE |
| Soleniod valve voltage | 24 VDC |
| Soleniod Valve Voltage | 24 VDC |
| Sound Level | 75 |
| Sound leveld (Ba) | 75 |
| Suitable For Use With | ZPF,SBZ4,ZRC20,ZPTU4,ZL. |
| Type | Electric Pump - High Fl. |
| UPC | 662005131150 |
| Usable oilcapacity gal | 5 |
| Valve Function | Advance / Hold / Retract |
| Valve function | Advance / Hold / Retract |
| Valve model | VE33 |
| Valve Model | VE33 |
| Valve Operation | Solenoid |
| Valve operation | Solenoid |
| Voltage | 115, 115V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | ENPZE4320SB | 8257.21179766 | 1 | In Stock | | ENERPAC | 200.37 | 8257.21179766 @ 1 |
 | hanessupply.com | ZE4320SB-10764 | 10083.17 | 1 | In Stock | | Enerpac Tool Group | | 10083.17 @ 1 |
 | MRO Supply | 5767352 | 10825.2 | 1 | In Stock | | Enerpac | | 10825.2 @ 1 |
| Turner Supply | 283531143 | 11677.0 | 1 | In Stock | | Enerpac | | 11677.0 @ 1 |
 | Zoro | G4367995 | 12199.09 | 1 | In Stock | 13 | Enerpac | 200.4 | 12199.09 @ 1 |
 | sustainablesupply.com | C2982124 | 12643.24 | 1 | In Stock | | Enerpac | 200.4 | 12643.24 @ 1 |
 | Raptor Supplies | AF8KQV | 20163.9997845 | 1 | In Stock | | ENERPAC | | 20163.9997845 @ 1 |
