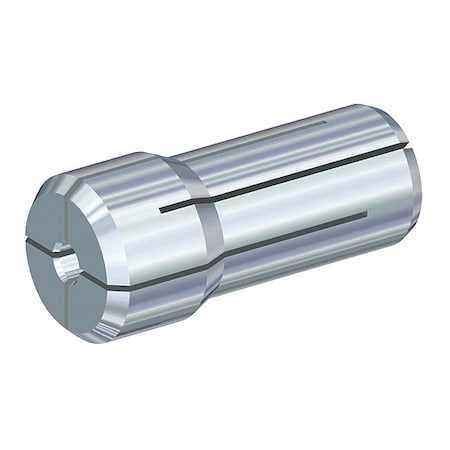

Attributes
| Key ^ | Value |
|---|---|
| Clamping Hole Length, Overall Length | 16.76mm |
| Collet Series | DA000 |
| Collet Type | DA Double Angle |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | United Kingdom |
| Face Shape | Round |
| Features | Double-Angle Collet, For Bonded Collet DAC Only - Rubber-Filled Slots Seal Collet for Coolant-Fed Tool Applications, Provides 1:1 Grip for Most Drilling, Reaming, and Tapping Applications |
| For Shank Type | Straight |
| Head Dia. | 8.50mm |
| Item, Product Type | Collet |
| Max. Body Dia. | 3.00mm |
| Max. Bore Dia. | 6.85mm |
| Measurement System | Metric |
| Min. Size | 0.1043 in |
| Number of Slots | 2 |
| Range | 0.1181"-0.1043" |
| TIR Max. | 0.025mm |
