Description:

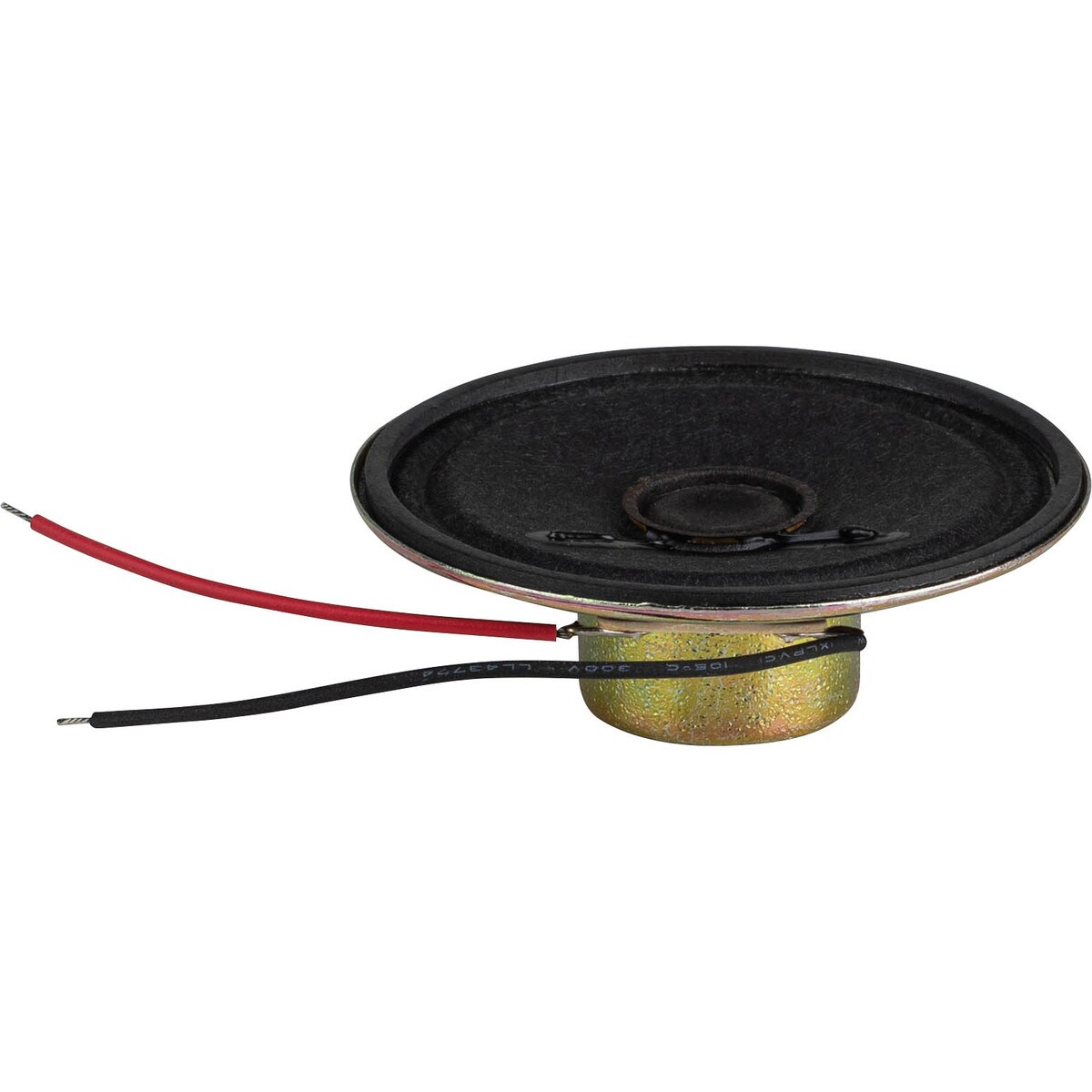

5009574EO1 2-1/4" 1W Paper Cone Mini Speaker 8 Ohm - Part Number: 299-4168 by Factory Buyouts.
Attributes
| Key ^ | Value |
|---|---|
| Baffle Cutout Diameter, Nominal Diameter | 2" |
| Basket / Frame Material | Steel |
| Brand | Factory Buyouts |
| Compliance Equivalent Volume (Vas) | 0.0029ft? |
| Cone Material, Surround Material, Voice Coil Former | Paper |
| DC Resistance (Re) | 7.488? |
| Depth | 0.75" |
| Diaphragm Mass Inc. Airload (Mms) | 0.4283g |
| Electromagnetic Q (Qes) | 10.45 |
| Frequency Response | 500-15,000Hz |
| Impedance | 8? |
| Magnet Material | Neodymium |
| Mechanical Q (Qms) | 6.776 |
| Model | 5009574EO1 |
| Overall Outside Diameter | 2.25" |
| Part Number | 299-4168 |
| Power Handling (MAX) | 2 Watts |
| Power Handling (RMS) | 1 Watts |
| Resonant Frequency (Fs) | 500.4Hz |
| Sensitivity | 81.92dB 2.83V/1m |
| Surface Area of Cone (Sd) | 15.9cm? |
| Total Q (Qts) | 4.11 |
| Unit of Measure | Each |
| UPC | 848864073316 |
| Voice Coil Diameter | 0.5" |
| Voice Coil Wire Material | Copper |
| Weight | 0.1 |
