- mpn3209-BD-2Z-TVH
- brandname: FAG
- manufacturername: FAG

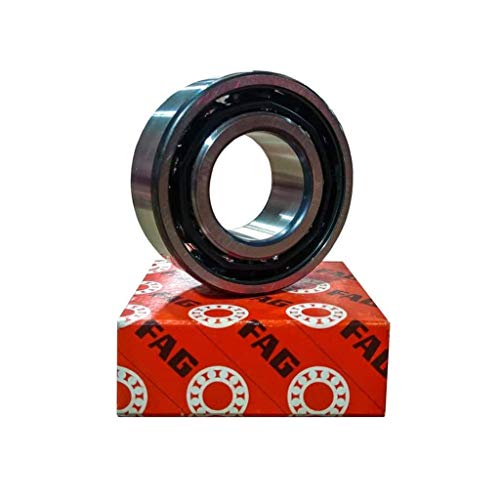

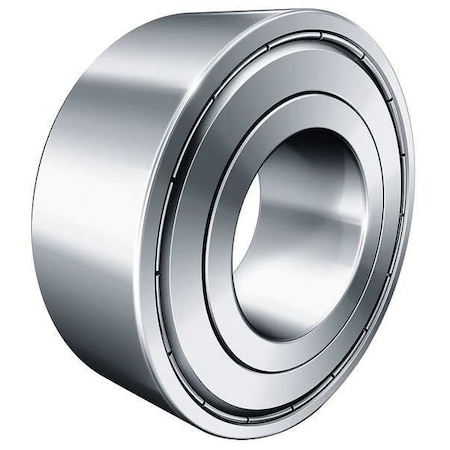

FAG Bearings DOUBLE ROW ANGULAR CONTACT BALL BREARINGS (3209-BD-2Z-TVH)
- Brand: FAG Bearings
- PartNumber: 3209-BD-2Z-TVH
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: FAG Bearings
- Label: FAG Bearings
Attributes
| Key | Value |
|---|
| ABEC Tolerance | 3 |
| Availability: | In Stock |
| Bore | 1.772 Inch | 45 Millime. |
| Bore Dia. | 45 mm |
| Brand | FAG BEARING |
| Cage Material | Polyamide, PA66 |
| Cage Type: | Plastic |
| Category | Angular Contact Ball Be. |
| Clearance: | Standard |
| Condition: | New |
| Contact Angle (Degree) | 30, 30 Degrees |
| Country of Origin (subj. | Slovakia |
| Dynamic Load Capacity (. | 11,240, 11,240 lb |
| Dynamic Load Capacity (. | 50,000, 50,000 N |
| Dynamic Load Rating (kN. | 50 |
| EAN | 4012802477931 |
| Enclosure | 2 Metal Shields |
| Fatigue Load Rating (kN. | 2.65 |
| Harmonized Tariff Code | 8482.10.50.28 |
| I.D. | 1.772 |
| Inch - Metric | Metric |
| Inside Diameter (mm): | 45mm |
| Item | Angular Contact Ball Be. |
| Limiting Speed Rating (. | 8400 |
| Lubrication | Fuchs Renolit GA3 |
| Manufacturer Name | SCHAEFFLER GROUP USA INC |
| Max. RPM | 8,300 RPM |
| O.D. | 3.346 |
| Outside Dia. | 85 mm |
| Outside Diameter | 3.346 Inch | 85 Millime. |
| Outside Diameter (mm): | 85mm |
| Precision Class | ABEC 1 | ISO P0 |
| price | $ 94.24 / each |
| Reference Speed Rating . | 6300 |
| Seal Material | Steel Shield |
| Seal Type | 2 Metal Shields |
| Seals Or Shields: | Two Metal Shields |
| Shipping: | Calculated at Checkout |
| Static Load Capacity (L. | 8,768, 8,768 lb |
| Static Load Capacity (N) | 39,000, 39,000 N |
| Static Load Rating (kN): | 39 |
| Temp. Range (F) | -68 Degrees to 248 Deg. |
| title | 3209-BD-2Z-TVH |
| Type | Double Row |
| UNSPSC | 31171531 |
| Width | 30.2 mm, 1.189 Inch | 3. |
| Width (mm): | 30.2mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Lily Bearing | 3209-BD-2Z-TVH | 80.1 | 1 | In Stock | | FAG BEARING | | 80.1 @ 1 |
 | MRO Supply | 2174412 | 80.23 | 1 | In Stock | | FAG Bearing | | 80.23 @ 1 |
 | Zoro | G8798307 | 171.03 | 1 | In Stock | | Fag Bearings | 1.64 | 171.03 @ 1 |
| Grainger | 32PH53 | 186.1 | 1 | In Stock | | FAG BEARINGS | | 186.1 @ 1 |
 | sustainablesupply.com | C1646957 | 188.25 | 1 | In Stock | | Fag Bearings | 1.64 | 188.25 @ 1 |
