Faital Pro M5N8-80

B00WQAQQ1Y

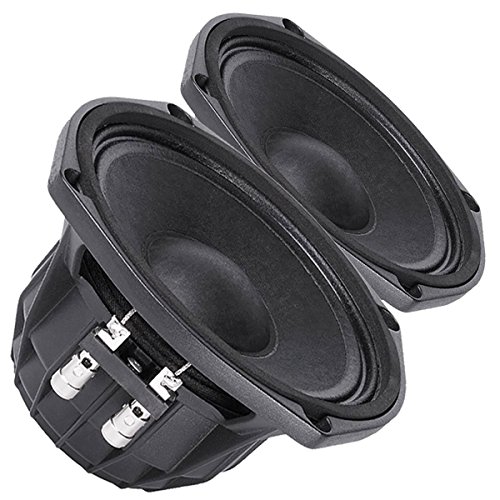

Pair Faital Pro M5N8-80 12ohm Neodymium 5" High SPL Midrange Line Array Speaker

Pair Faital Pro M5N8-80 12ohm Neodymium 5" High SPL Midrange Line Array Speakerzoom

Attributes

Key Value
# Mounting Holes4
Baffle Cutout Diameter5"
Basket / Frame MaterialCast Aluminum
BL Product (BL)9.6T?m
Bolt Circle Diameter5.47
BrandFaitalPRO
Compliance Equivalent V.0.01ft?
Cone MaterialTreated Paper
DC Resistance (Re)5.5?
Depth3.16"
Diaphragm Mass Inc. Air.6.8g
Electromagnetic Q (Qes)0.45
Frequency Response180 to 8,000Hz
Impedance8?
Magnet MaterialNeodymium
Maximum Linear Excursio.2.75mm
Mechanical Compliance o.0.11mm/N
Mechanical Q (Qms)1.9
ModelM5N8-80
Nominal Diameter5"
Overall Outside Diameter6.02" across the mounti.
Part Number294-1142
Power Handling (MAX)160 Watts
Power Handling (RMS)80 Watts
Resonant Frequency (Fs)180Hz
Sealed F3344.9Hz
Sealed Volume0.04ft?
Sensitivity99dB 2.83V/1m
Surface Area of Cone (S.94.2cm?
Surround MaterialCloth
Total Q (Qts)0.45
Unit of MeasureEach
UPC848864011059
Vented F3145.6Hz
Vented Volume0.05ft?
Voice Coil Diameter1.26"
Voice Coil FormerKapton? / Polyimide
Voice Coil Inductance (.0.22mH
Voice Coil Wire MaterialCopper
Weight2.09
