Description:

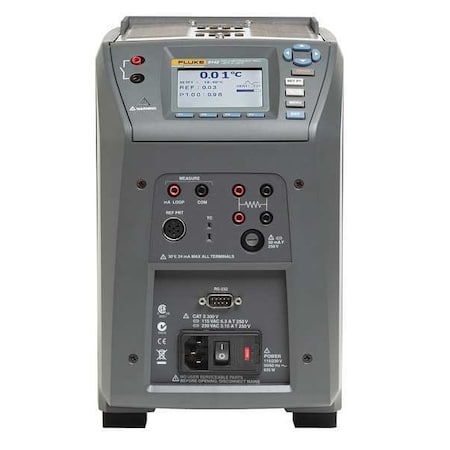

Drywell, Field Metrology Well, Fluke 9142, -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C, Calibration Details NVLAP Accredited Calibration Included, Interface RS-232, Number of Set Points Variable, 11 13/32 in H x 7 5/16 in W x 11 39/64 in D
Attributes
| Key ^ | Value |
|---|---|
| Accuracy, Stability | +/-0.01 Degrees C |
| Agency Compliance | CE, CSA, C-TICK, ROHS, WEEE |
| Application | Field Testing |
| Calibration Certificate, Standards | NVLAP accredited |
| Calibrator Application | Industrial Process Environment |
| Display | LCD |
| For Stem Diameter | (3) 3 mm, (2) 4 mm, (2) 6 mm |
| Includes | 9142 Field Metrology Well, Insert for Configuration Ordered, Power Cord, RS-232 Cable, User Guide, Technical Manual CD, Report of Calibration, Calibration Label, Well Insulator, Tongs (insert removal tool), 9930 Interface-it Software and User's Guide |
| Includes NIST-Traceable Certificate | No |
| Interface | RS-232 |
| Item | Drywell |
| Overall Depth | 11.61 in |
| Overall Dimensions | 11 13/32 in H x 7 5/16 in W x 11 39/64 in D |
| Overall Height | 11.41 in |
| Overall Width | 7.31 in |
| Power Source Details | 100 to 115V, 230V |
| Promotion Restriction | Not eligible for promotion |
| Temperature Range | -196 Degrees to 660 Degrees C, 0 Degrees to 1,480 Degrees C |
| Typical Heating Time | 16 min (23 Degrees to 140 Degrees C), 23 min (23 Degrees to 150 Degrees C), 25 min (-25 Degrees to 150 Degrees C) |
| Typical Uniformity | +/-0.05 Degrees C, +/-0.01 Degrees C |
| Well Depth | 5.91 in |
| Well Size | 5 29/32 D Well |
