| Alarm | Yes |
| Ambient Temp. Range | 14 Degrees to 122 Degrees F (-10 Degrees to 50 Degrees C) |
| Ambient Temp. Range (F) | 14 Degrees to 122 Degrees |
| Country of Origin (subject to change) | United States |
| Data Logging | Yes |
| Data Logging - Instrument | Yes |
| Detector Resolution - Infrared | 320 x 240 Pixels |
| Display | 3.6" High Contrast Landscape LCD |
| Display - IR Camera | 3.6" High Contrast Landscape Color LCD |
| Display Resolution - IR Camera | 640 x 480 Pixels |
| Display Size | 3.6" |
| Display Type | High Contrast Landscape LCD |
| Drop Tested | 2m (6-1/2 ft.) |
| Emissivity | Adjustable 0.10 to 1.00 |
| Field of View | 11.5 Degrees Horizontal x 8.7 Degrees Vertical |
| Field of View - IR Camera | 11.5 Degrees Horizontal x 8.7 Degrees Vertical |
| File Formats | Radiometric is2, Non-radiometric bmp or jpg |
| Focus Distance - Infrared | 0.15m to Infinity |
| Focus Method | Manual |
| Focus Range | 0.15m to Infinity |
| Focus Range - Infrared | 0.15m to Infinity |
| Frame Rate - IR Camera | 60 Hz |
| Image Frequency | 60 Hz |
| Includes | 20 mm Infrared Lens, AC Power Supply/Battery Pack Charger with outlet Adapters, (2) Lithium Ion Smart Battery Packs, SD Memory Card, Card Reader, SmartView(R) Software, Hard Carrying Case, Soft Transport Bag, Hand Strap, Interactive Training DVD and Printed |
| IR Detector Resolution | 320 x 240 Pixels |

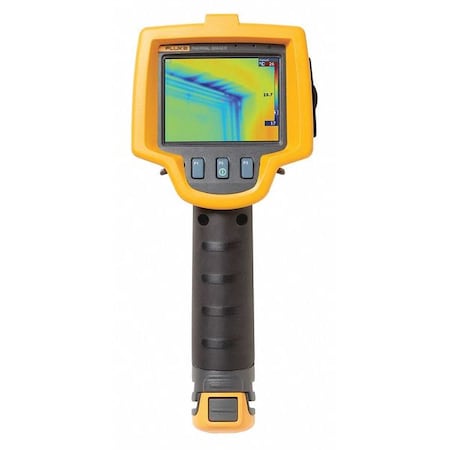

| Item | Building Diagnostic Infrared Camera |
| Item - Infrared Camera | Building Diagnostic Infrared Camera |
| Manufacturers Warranty Length | 2 yr. |
| Multiple Lens Option | Yes |
| NIST Certified | No |
| Promotion Restriction | Not eligible for promotion |
| Removable Memory Card | SD |
| Spectral Response | 7.5 to 14um |
| Spectral Response - Infrared | 7.5 to 14.0um |
| Temp. Accuracy | +/-3.6 F or +/-2% Whichever is Greater |
| Temp. Accuracy (C) - Infrared | +/-2.0% or +/-2.0 Degrees Whichever is Greater at 25.0 Degrees Nominal |
| Temp. Accuracy (F) | +/-3.6 Degrees or +/-2% Whichever is Greater |
| Temp. Accuracy (F) - Infrared | +/-2.0% or +/-3.6 Degrees Whichever is Greater |
| Temp. Range (C) | -20 Degrees to 150 Degrees |
| Temp. Range (C) - Infrared | -20 Degrees to 150 Degrees |
| Temp. Range (F) | -4 Degrees to 302 Degrees |
| Temp. Range (F) - Infrared | -4 Degrees to 302 Degrees |
| Thermal Resolution | 76,800 Pixels |
| Thermal Sensitivity | 40 mK |
| Thermal Sensitivity - IR Camera | 40 mK |
| Visual Light Resolution | 2 MP |
| Wireless | No |
