mpn:
brand:
manufacturer:
MPN:
Weight:
1.5625
Weight:
1.5625 LB
Preferred Price:
40257.87
Price:
40257.87
Min Simple Price:
947.69
Absolute Min Price:
32297.27
Min Price:
32297.27
Dimensions:
[28.0, 23.0, 9.0]
qty:
1
simpleSku:
zQyNzU:::223-30-THSS-240V
sku:
zQyNzU::U0:223-30-THSS-240V@x24
condition:
11
seller:
sustainablesupply.com
amzMan:
fostoria
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amperage | 11.6A/20A |
| Amps @ 1 Phase | 20 |
| Amps @ 3 Phase | 11.60 |
| Beam Pattern | 30 Degrees |
| Brightness | 38,400 lm |
| BtuH Output | 16,378 |
| Cord Type | Hard Wired |
| Country of Origin (subject to change) | United States |

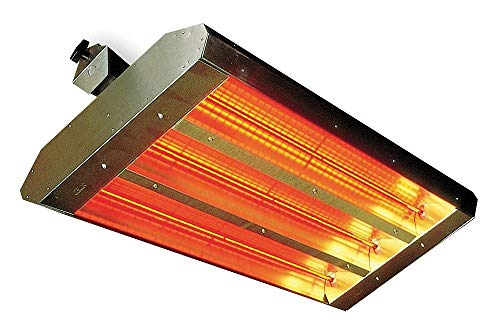

| Electric Heater Item, Item | Electric Infrared Heater |
| Electric Heater Phase | 1/3 |
| Electrical Connection, NEMA Plug Configuration | Hardwired |
| Element Type | Quartz Lamp |
| Finish, Housing Finish | Stainless steel |
| For Use Outdoors, Indoor/Outdoor Usage | Indoor/Outdoor |
| Frequency | 50/60Hz |
| Heat Pattern Coverage @ Floor (10 Ft.) | 6-1/2 x 6-1/2 |
| Heat Pattern Coverage @ Floor (12 Ft.) | 7-1/2 x 7-1/2 |
| Heat Pattern Coverage @ Floor (14 Ft.) | 8-1/2 x 8-1/2 |
| Heat Pattern Coverage @ Floor (16 Ft.) | 9-1/2 x 9-1/2 |
| Heat Pattern Coverage @ Floor (18 Ft.) | 11 x 11 |
| Heat Pattern Coverage @ Floor (20 Ft.) | 12 x 12 |
| Heat Pattern Coverage @ Floor (8 Ft.) | 5-1/2 x 5 |
| Heater Mounting Position | Horizontal Burn |
| Heater Mounting Type | Ceiling, Suspended |
| Heater Voltage | 240VAC |
| Heating Capacity | 16,832 BtuH |
| Heating Method | Radiant |
| Height | 11" |
| Housing Color | Silver |
| Housing Material | 304 Stainless Steel |
| Housing Material, Housing Color | 304 Stainless Steel, Silver |
| Includes | (6) High Temperature Leads, 3 in Spacer Brackets, Elements |
| Infrared Electromagnetic Wave Type | Short Wave |
| Length | 24" |
| Lumens | 38,400 |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Mobility | Stationary |
| Number of Lamps | 3 |
| Overall Depth | 11 in |
| Overall Dimensions - L x W x D | 24 in x 21-1/2 in x 11 in |
| Overall Length | 24 in |
| Overall Width | 21 1/2 in |
| Phase | 1 or 3 |
| Radiant Efficiency | 96 % |
| Reflector Material | Aluminum, Gold Anodized |
| Standards | ETL Listed for US & Canada |
| Voltage | 240V AC |
| Voltage, Phase | 240V AC, 1 or 3-phase |
| Wattage Output | 4800W |
| Watts | 4800 |
| Watts Delivered/Sq.-Ft. 10 | 113.6 |
| Watts Delivered/Sq.-Ft. 12 | 85.3 |
| Watts Delivered/Sq.-Ft. 14 | 66.4 |
| Watts Delivered/Sq.-Ft. 16 | 53.2 |
| Watts Delivered/Sq.-Ft. 18 | 43.5 |
| Watts Delivered/Sq.-Ft. 20 | 34.8 |
| Watts Delivered/Sq.-Ft. 8 | 174.5 |
| Width | 21-1/2" |
