Description:

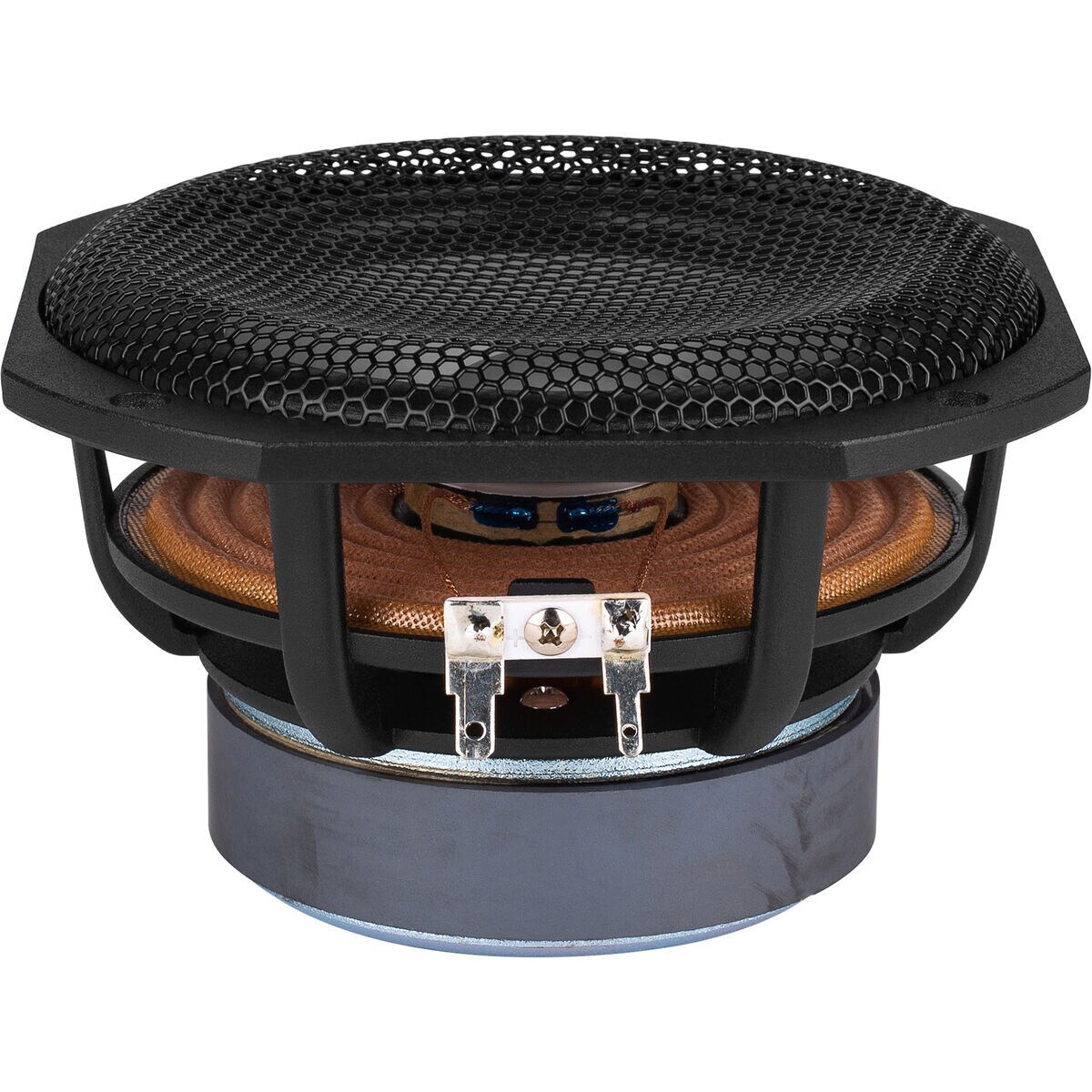

Fountek FW135H 5-1/4" Aluminum Cone Midrange Driver. Part Number: 296-735 by Fountek.
Attributes
| Key | Value |
|---|---|
| # Mounting Holes | 4 |
| Baffle Cutout Diameter | 5.09" |
| Basket / Frame Material | Cast Aluminum |
| BL Product (BL) | 6.98T?m |
| Bolt Circle Diameter | 5.51 |
| Brand | Fountek |
| Compliance Equivalent Volume (Vas) | 0.24ft? |
| Cone Material | Aluminum |
| DC Resistance (Re) | 6.8? |
| Depth | 3.05" |
| Electromagnetic Q (Qes) | 0.61 |
| Frequency Response | 70 to 5.5KHz |
| Impedance | 8? |
| Magnet Material | Ferrite |
| Maximum Linear Excursion (Xmax) | 5mm |
| Mechanical Compliance of Suspension (Cms) | 0.65mm/N |
| Mechanical Q (Qms) | 1.94 |
| Model | FW135H |
| Nominal Diameter | 5-1/4" |
| Overall Outside Diameter | 5.35" |
| Part Number | 296-735 |
| Power Handling (MAX) | 60 Watts |
| Power Handling (RMS) | 30 Watts |
| Resonant Frequency (Fs) | 59.1Hz |
| Sealed F3 | 108.4Hz |
| Sealed Volume | 0.09ft? |
| Sensitivity | 86.6dB 2.83V/1m |
| Surface Area of Cone (Sd) | 86.59cm? |
| Total Q (Qts) | 0.46 |
| Unit of Measure | Each |
| UPC | 848864053943 |
| Vented F3 | 53.03Hz |
| Vented Volume | 0.3ft? |
| Voice Coil Diameter | 1.41" |
| Voice Coil Former | Aluminum |
| Voice Coil Wire Material | Copper |
| Weight | 2.8 |
