mpn:
brand:
manufacturer:
MPN:
Weight:
12.7
Weight:
0.8125 LB
Preferred Price:
532.29
Price:
532.29
Min Simple Price:
300.74
Absolute Min Price:
427.05
Min Price:
427.05
Dimensions:
[22.0, 16.0, 4.0]
qty:
2
simpleSku:
DkwMDU:::FURCN1800S
sku:
DkwMDU::II:FURCN1800S@y0
condition:
11
seller:
PCNation
amzMan:
furman sound
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Cord | 3/14AWG, 10', black, fixed, NEMA 5-15P plug |
| AC Overvoltage Protection | EVS, 145VAC+/-5VAC |
| AC Overvoltage Reset Modes | Manual and Auto-reset (configurable) |
| AC Surge Protection | SMP |
| AC Undervoltage Protection | EVS, 77VAC+/-3VAC |
| AC Voltage Input Range | 90-139VAC, 50/60Hz |
| Ammeter | Available with RS-232/Ethernet option, 1A accuracy |
| Brand | Furman |
| Brand Name | Furman Sound |
| Circuit Breaker | Front panel, push-button, 15A Thermal Breaker |
| Depth | 10.5 |
| Dimensions (WxLxH) | 17" x 10.5" x 1.75" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Faceplate with integrated rack ears | 19" Wide |
| Force Off/Delay 3 Terminal | Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring) |
| Form Factor | Rack-mountable |
| Front Panel | One NEMA 5-15R Convenience Outlet, Unswitched |

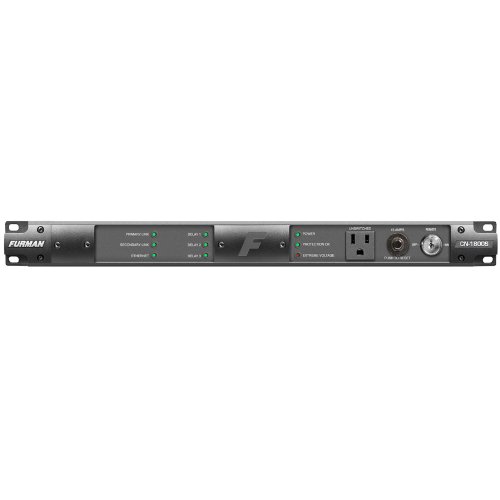

| Front panel diagnostic indicators | Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage |
| Front Panel DIP Switches | Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual |
| Height | 1.8 |
| Information | Power / Device Type: Power Conditioner |
| IP Addressability | Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLT |
| Item Weight | 12.45 |
| Key-switch | Front panel, 3-position key-switch (On, Off, Remote) |
| Keys | Included, 1 pair |
| LiFT Noise Attenuation | Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz |
| Limited Warranty | 15 Year |
| Manufacturer | Furman Sound, Inc |
| Manufacturer Part Number, Manufacturer Stock No., Product Model | CN-1800S |
| Manufacturer Website Address | http://www.furmansound.com |
| Maximum AC Current Rating | 15 amps (Thermal breaker) |
| Maximum Surge Current | 6,500 Amps |
| Model# | CN1800S |
| MPN | FURCN1800S |
| Potentiometer | Front panel, hidden by security cover, fine tune delay adjust |
| Power Consumption (No Load) | 10 Watts |
| Product Line | SmartSequencer |

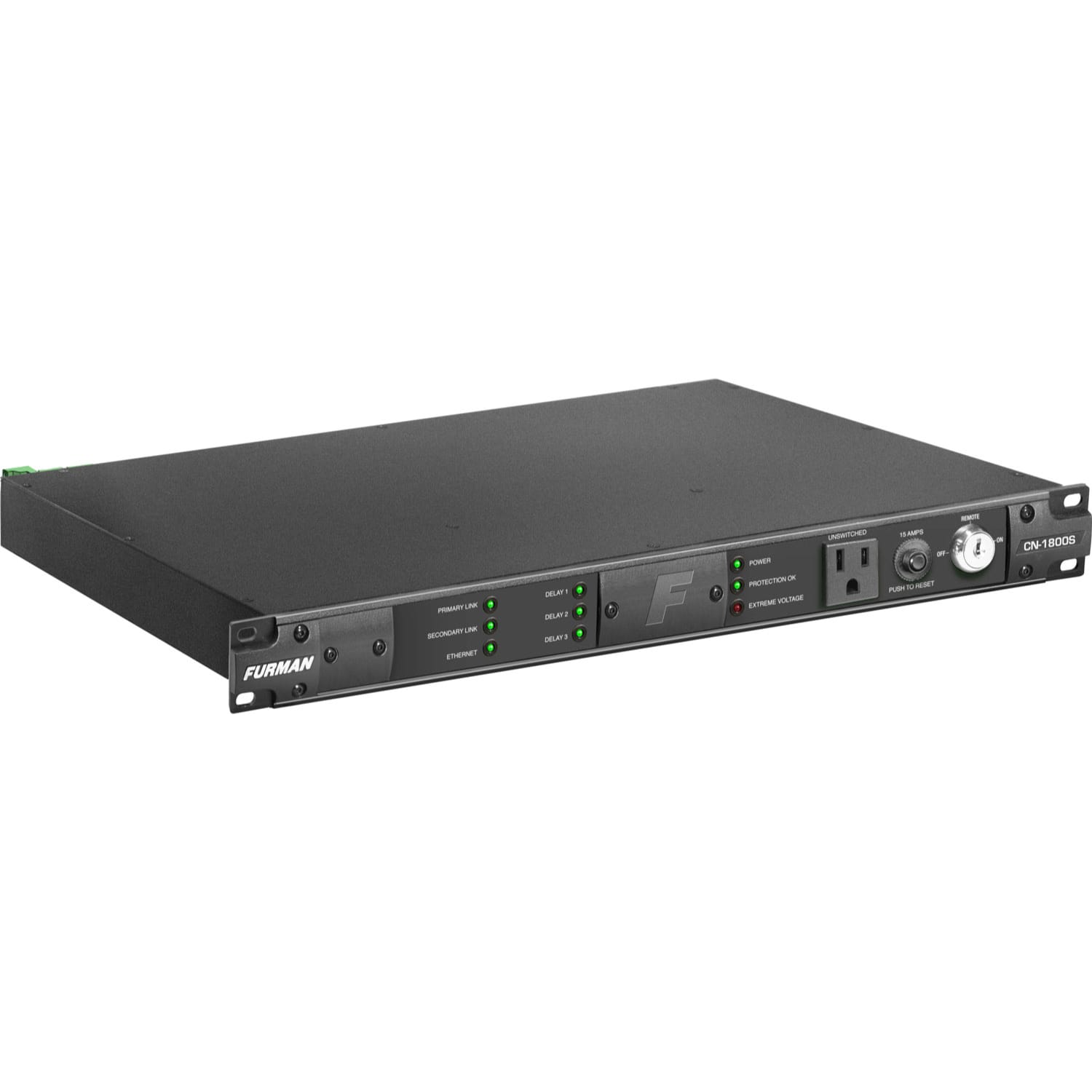

| Product Name | 15 Amp Bidirectional Sequencer |
| Product Series | Contractor |
| Product Type | Power Sequencer |
| Push-button Switch | Front panel, hidden by security cover |
| Rear Panel Outlets | 2 Unswitched NEMA 5 15R's (1 duplex), 6 Sequenced NEMA 5-15R's (3 duplexes each controlled by separate relay) |
| Remote Terminal | +5-30VDC In, 12VDC (12mA) Out, Phoenix 4-Pin Connector With Screw Terminals |
| Response Time | 1 nanosecond |
| RS-232 Compatible | Yes, DB-9 Connector |
| Safety Agency | NRTL-C, RoHS Compliant |
| Ships via UPS | Y |
| SmartSequencing | Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal) |
| Spike Clamping Voltage | 188VAC peak @ 6,000 volts/3,000 amps |
| Spike Protection Mode | Line to neutral, zero ground leakage |
| UNSPSC Code | 0 |
| UPC Code | 654061028451 |
| Voltmeter | Available with RS-232/Ethernet option, 2VAC accuracy |
| Warranty | 15 years |
| Weight | 12lbs. |
| Weight (Approximate) | 12 lb |
| Width | 17 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | PCNation | 1579AN | 300.74 | 300.74 | 1 | In Stock | FURMAN | 13.0 | 300.74 @ Qty: 1+ | |
 | bluedogsupplies | FURCN1800S | 318.99 | 318.99 | 1 | In Stock | Furman | 318.99 @ Qty: 1+ | ||
| Adorama | FUCN1800S | 549.0 | 549.0 | 1 | In Stock | Furman Sound | 549.0 @ Qty: 1+ | |||
 | conferenceroomav.com | CN-1800S | 599.95 | 599.95 | 1 | In Stock | FURMAN | 12.0 | 599.95 @ Qty: 1+ | |
 | bhphotovideo.com | FUCN1800S | 693.28 | 693.28 | 1 | In Stock | Furman | 693.28 @ Qty: 1+ | ||
 | Full Compass | CN1800S | 799.95 | 799.95 | 1 | In Stock | FURMAN | 799.95 @ Qty: 1+ | ||
| exertisalmo.com | CN-1800S | 799.95 | 799.95 | 1 | In Stock | Furman | 799.95 @ Qty: 1+ | |||
 | Markertek | FUR-CN-1800S | 799.95 | 799.95 | 1 | In Stock | Furman | 799.95 @ Qty: 1+ | ||
 | primebuy.com | CN-1800S | 799.95 | 799.95 | 1 | In Stock | Furman | 799.95 @ Qty: 1+ | ||
 | Performance Audio | FUR CN1800S | 799.95 | 799.95 | 1 | 2 | FURMAN | 799.95 @ Qty: 1+ |
