| Application | Aeration, Photographic Processing, Business Machines, Packaging, Beverage Dispensing and Various OEM, Requiring Intermittent and Continuous Duty |
| Country of Origin (subject to change) | United States |
| Cylinder Material | Aluminum |
| Design, Lubrication Type | Oil-less |
| Finish | Gray Paint |
| Free Air CFM @ 0 In. Hg | 0.98 |
| Free Air CFM @ 0 PSI | 0.85 |
| Free Air CFM @ 10 In. Hg | 0.54 |
| Free Air CFM @ 100 PSI | 0.39 |
| Free Air CFM @ 20 In. Hg | 0.22 |
| Free Air CFM @ 20 PSI | 0.7 |
| Free Air CFM @ 40 PSI | 0.58 |
| Free Air CFM @ 50 PSI | 0.53 |
| Full Load Amps | 3 |
| HP | 1/6 |
| Hz | 60 |
| Inlet Size, Outlet Size | 1/4" NPT |

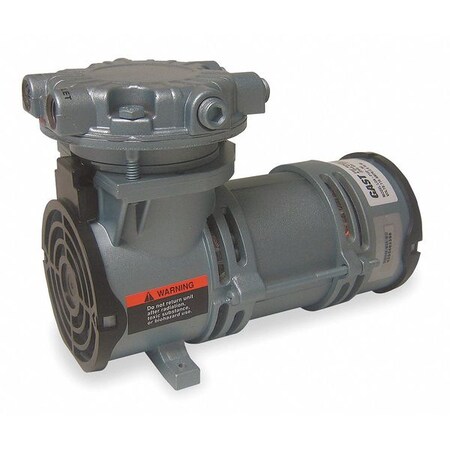

| Item | Piston Air Compressor/Vacuum Pump |
| Max. PSI Cont./Int. | 100/100 |
| Max. Vacuum | 27 in Hg |
| Motor Type | Permanent Split Capacitor |
| Number of Cylinders, Phase | 1 |
| Overall Height | 6" |
| Overall Length | 8" |
| Overall Width | 5-3/4" |
| RPM | 1575 |
| Sound Rating | Less Than70 dBA |
| Standards | UR, CUR |
| Temp. Range | 32 Degrees to 100 Degrees F |
| Thermal Protection | Automatic |
| Valve | High Strength, Low Lift Stainless Steel |
| Voltage | 115VAC |
