Description:

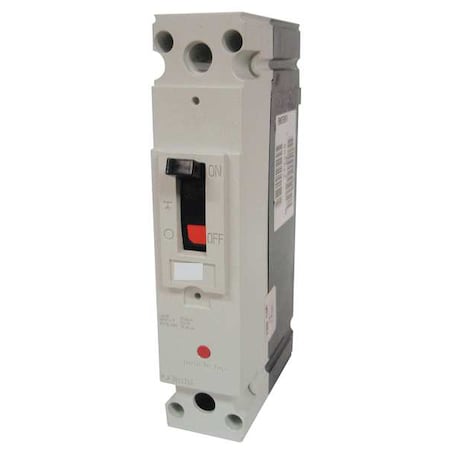

Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 347/600V AC, Max. AIR Rating 65kA at 240/277V AC, For Use With GE Panelboards, Series FBN, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Any, Frame Size 100A/FB, Circuit Breaker Mounting Style Free Standing, Height 6.45 in, Width 1.36 in, Depth 3.88 in, Min. Wire Size 4 AWG, Max. Wire Size 1/0 AWG
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 347/600V AC |
| Amps | 90 A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style, Mounting | Free Standing |
| Circuit Breaker Type | Standard |
| DC Voltage Rating | Not Rated |
| Depth | 3.88 in |
| For Use With | GE Panelboards |
| Frame Size | 100A/FB |
| Height | 6.45 in |
| Instantaneous Trip | Fixed |
| Item | Molded Case Circuit Breaker |
| Max. AIR Rating | 65kA at 240/277V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 4 AWG |
| Number of Poles | 1 |
| Phase | Single |
| Phase Connection | Any |
| Series | FBN |
| Standards | UL Listed |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Width | 1.36 in |
