Description:

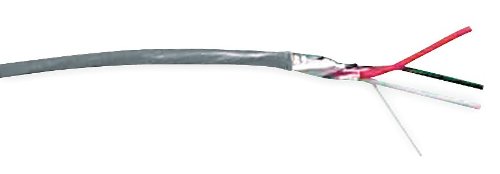

Multiple Conductor
Attributes
| Key ^ | Value |
|---|---|
| Approvals | CSA, cULus, NEC, UL |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Comments | NEC 800 CMR, UL 2464, CSA CMG |
| Conductor Insulation, Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand, Stranding | 7/30 |
| Conductor Type | Stranded |
| Country of Origin (subject to change) | Unknown |
| Drain Wire | Single |
| Family Series | General Cable Wire & Cable, Computer Wire Series |
| Features | Drain Wire |
| Gross Weight, Net Weight | 0 lbs |
| Insulation Material | PVC |
| Insulation Thickness | 0.01 " |
| Item Number | C0761A.41.10 |
| Jacket (Insulation) Diameter | 0.177" (4.50mm) |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Jacket Color | Gray |
| Jacket Thickness | 0.032 " |
| Length | 50.00' (15.24m) |
| Manufacturer | General Cable |
| Manufacturer Part Number | C0761A |
| Mfr | General Cable/Carol Brand |
| Nominal Capacitance C-C | 36 pF/ft |
| Nominal DCR | 16.5 Ohm/kft |
| Number of Conductors | 3 |
| Operating Temperature | -20?C ~ 80?C |
| Outer Diameter | 0.177 " |
| Package | Bulk |
| Part Status | Active |
| Plenum or Riser? | Riser |
| Product Series | Computer Wire |
| Ratings | ASTM B-33 |
| RoHS Compliant | Yes |
| Series | - |
| Shield Coverage | 100% |
| Shield Material | Flexfoil? |
| Shield Type | Foil |
| Shielding | Overall |
| Shielding Material | Aluminum Polyester Foil |
| Temperature Rating | -4-176 ?F |
| Usage | Computer |
| Voltage, Voltage Rating | 300 V |
| Wire Gauge | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | C0761A.41.10-GNCC | 0.48 | 1.056 | 1 | 3 | General Cable | 0.48 @ Qty: 3+ | ||
| Digi-Key | 5887028 | 28.78 | 166.924 | 10 | 11 | General Cable/Carol Brand | 28.78 @ Qty: 3+ | |||
| Hotenda | H140977 | 271.44 | 597.168 | 1 | 3 | General Cable | 271.44 @ Qty: 3+ | |||
| absupply.net | GENERAL CABLE CMP. C0761A.41.10 | 306.26 | 673.772 | 1 | 3 | General Cable | 306.26 @ Qty: 3+ | |||
 | Carlton Bates Company | 07940739033 | 310.0 | 682.0 | 1 | 3 | GENERAL CABLE | 310.0 @ Qty: 3+ | ||
 | Zoro | G1162647 | 400.54 | 881.188 | 1 | 3 | 35 | General Cable | 400.54 @ Qty: 3+ |
