Genteq 3S049

B00IMMYVAI

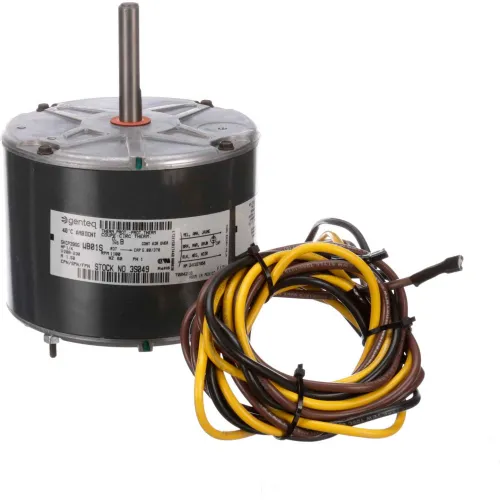

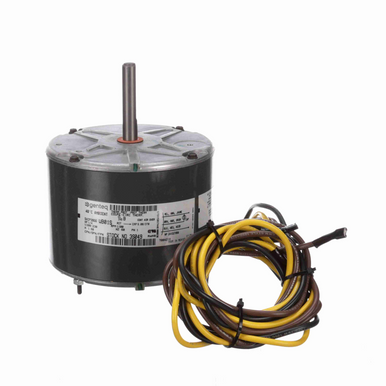

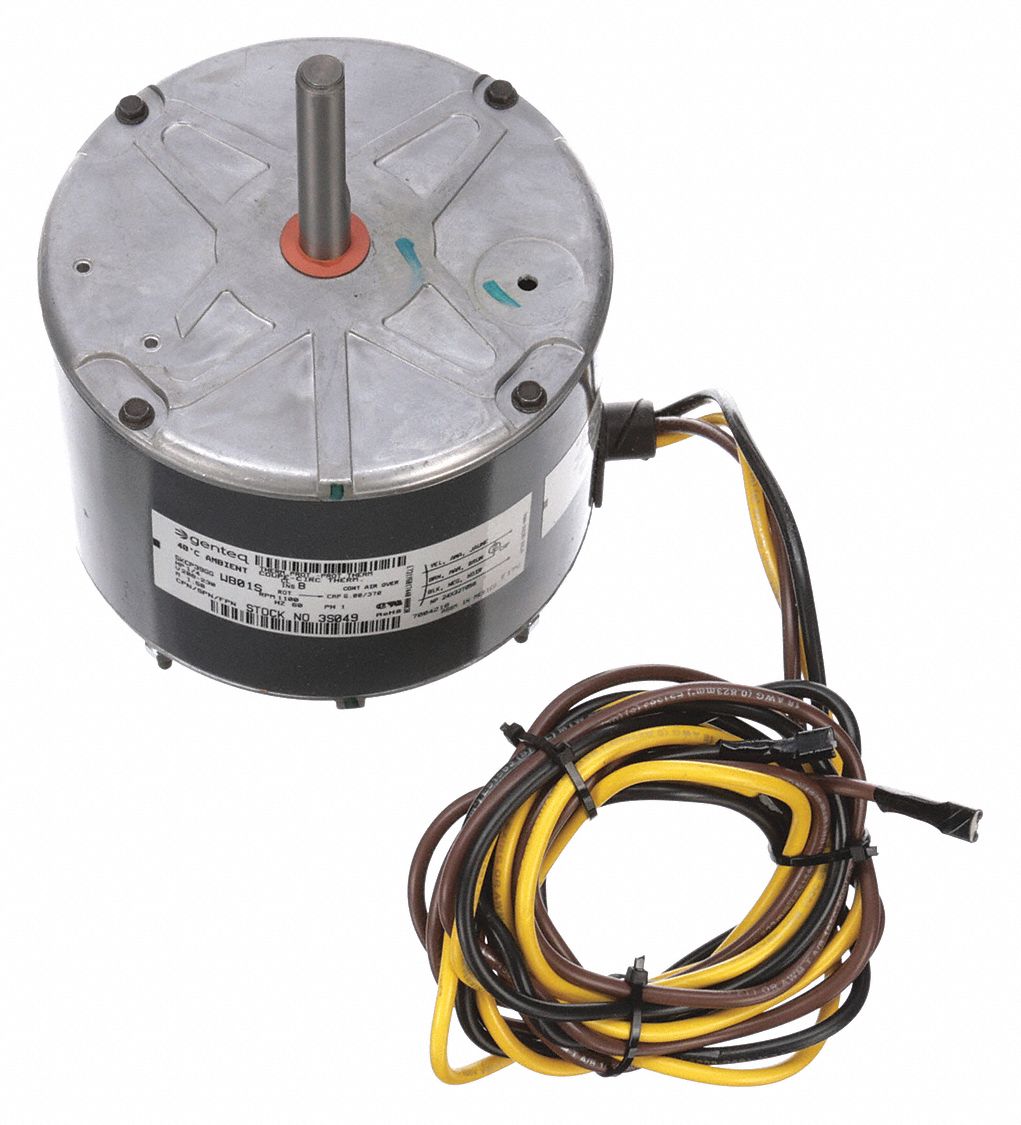

5KCP39GGWB01S - Genteq Replacement Condenser Fan Motor 1/4 HP 208-230 Volt 1100 RPM

5KCP39GGWB01S - Genteq Replacement Condenser Fan Motor 1/4 HP 208-230 Volt 1100 RPMzoom

Attributes

Key Value
ApplicationCondenser Fan
Body Dia.5-5/8"
Bolt Circle Dia.5-1/5"
Capacitor Required2MDV4
Country of Origin (subj.Mexico
DutyContinuous Air Over
Duty CycleContinuous
Frame48
Full Load Amps1.5A
HP1/4 HP
Hz60 Hz
Ins. ClassB
ItemMotor
Length Less Shaft4 3/8 in
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationOEM Replacement
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialSteel
Motor Mounting PositionVertical Shaft Down
Motor Mounting TypeExtended Studs
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationClockwise
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionAutomatic
Mounting Stud Pattern3-5/8" x 3-5/8"
Nameplate RPM1100 rpm
No. of Speeds1
Number of Shafts1
OEM Replacement BrandCarrier/BDP
Overall Length6.81"
Phase1
RotationCCWLE
RPM Range1001-1100
Shaft Dia.1/2"
Shaft Length2-1/2"
StandardsUL Recognized, CSA Cert.
Stud Size#8-32
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230V
Voltage Compatibility115/208-230V AC, 208-23.
Weight11 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.net3S04997.451In StockGenteq97.45 @ 1
thumbzoomZoroG4483823117.851In StockGenteq11.35117.85 @ 1
thumbzoomGlobal IndustrialWBB2777020139.951In StockGenteq139.95 @ 1
thumbzoomsustainablesupply.comC1544320143.311In StockGenteq11.35143.31 @ 1
