- mpn10GBS1012K4
- brandname: GOULDS WATER TECHNOLOGY
- manufacturername: GOULDS WATER TECHNOLOGY

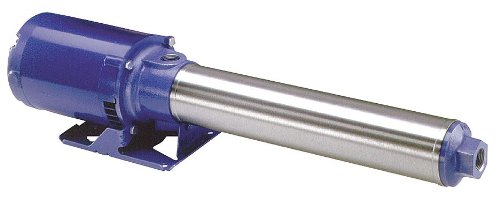

GOULDS Pumps 10GBS1012K4 Multi-Stage Booster Pump, 3 Phase, 230V-460V, 1 hp, 1 FNPT Outlet
- Brand: Goulds
- PartNumber: 10GBS1012K4
- Model: 10GBS1012K4
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Goulds Water Technology
- Label: Goulds Water Technology
Attributes
| Key | Value |
|---|
| Agency Compliance | CSA/UL/CE |
| Amps | 16/8.4-8.0 |
| Bearing Type | Ball |
| Booster Pump Type | Multi-Stage Booster Pump |
| Brand | Goulds Water Technology |
| Case Pressure (Maximum) | 242 psi |
| Compatible Discharge Pi. | 1 in |
| Compatible Intake Pipe . | 1 in |
| Compatible with Media T. | Water |
| Connection | NPT |
| Discharge | 1" |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Feet of Head (Minimum) | 260 ft of head |
| Flow Rate @ 10 psi | 19 gpm |
| Flow Rate @ 100 psi | 12.5 gpm |
| Flow Rate @ 120 psi | 8.8 gpm |
| Flow Rate @ 140 psi | 3.5 gpm |
| Flow Rate @ 15 psi | 19.2 gpm |
| Flow Rate @ 20 psi | 19 gpm |
| Flow Rate @ 40 psi | 17.4 gpm |
| Flow Rate @ 50 psi | 17 gpm |
| Flow Rate @ 70 psi | 15.2 gpm |
| Flow Rate @ 90 psi | 13.2 gpm |
| For Use With Potable Sy. | No |
| For Use With Systems | Non-Potable |
| Frame | 56J |
| Frequency | 60 HZ |
| GPM @ 10 PSI | 19 |
| GPM @ 100 PSI | 12.5 |
| GPM @ 120 PSI | 8 |
| GPM @ 20 PSI | 19 |
| GPM @ 40 PSI | 17 |
| GPM @ 60 PSI | 16 |
| GPM @ 80 PSI | 13 |
| Height | 5 3/4 in |
| Horsepower | 1 HP |
| Housing | Stainless Steel |
| Housing Material | Stainless Steel |
| Housing Material - Pumps | Stainless Steel |
| HP | 1 |
| HP - Pumps | 1 HP |
| Hz | 60 |
| Impeller Design | Closed |
| Impeller Material | Glass Filled Polycarbon. |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 1" FNPT, 1" |
| Inlet Size - Pumps | 1 in NPT |
| Intake and Discharge Si. | 1 in , 1 in |
| Intake Size | 1 in |
| Intake Type | NPT |
| Item | Booster Pump |
| Length | 25 9/16 in |
| Length (Straight Wirewa. | 25 9/16 in |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Max Flow | 10.00 GPM |
| Max Head | 600.00 FT |
| Max Temp (?F) | 160 |
| Max. Case Pressure | 375 psi |
| Max. Liquid Temp. | 160 Degrees F |
| Max. Pressure | 75 psi |
| Max. Pressure - Pumps | 75 psi |
| Maximum Feet of Head | 320 ft of head |
| Maximum Flow Rate | 16 gpm |
| Maximum RPM | 3,500 RPM |
| Mechanical Seal | Carbon vs. Silicon Carb. |
| Minimum Flow Rate | 3 gpm |
| Motor | ODP |
| Motor Ambient Temp. Rat. | 40 Degrees C |
| Motor Ambient Temperatu. | 104 Degrees F |
| Motor Ambient Temperatu. | 40 Degrees F |
| Motor Enclosure | ODP |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Type | ODP |
| Motor Frame Designation | 56J NEMA |
| Motor RPM | 3,450 RPM |
| Motor Type | Capacitor-Start |
| Mounting Orientation | Horizontal |
| Mounting Orientation Br. | Horiz. |
| MPN | 10GBS1012K4 |
| Nameplate Voltage | 230/460V AC |
| Nominal Voltage | 230/460V AC |
| Number of Stages - Pumps | 10 |
| Outlet | 1" FNPT |
| Outlet Size - Pumps | 1 in NPT |
| Overall Height | 5.75 in |
| Overall Length | 25.56 in |
| Overall Width | 6.06 in |
| Phase | 3 |
| Phase - Pumps | 3 |
| Phase Broad | 3 |
| Product Type | Simple product |
| Pump Housing Material | Stainless Steel |
| Pump Housing Material B. | SS |
| Pump Mounting Position | Horizontal |
| Pumping Application | Booster Service, Evapor. |
| Seal Material | Carbon, Silcon Carbide,. |
| Series | GB |
| Series Family | 10GB |
| Shut Off Pressure (Maxi. | 75 psi |
| Speed (RPM) | 3500 |
| Stages | 10 |
| Standards | CAN 22.2, CSA Certified. |
| UPC | 69766616252 |
| Voltage | 230-460, 230/460V |
| Voltage - Pumps | 240/460V AC |
| Weight | 42.000000 |
| Wetted Material | Carbon, Silicon Carbide. |
| Wetted Materials | Carbon, Engineered Comp. |
| Width | 6 1/16 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | andersonprocess.com | 10GBS1012K4 | 1577.1 | 1 | In Stock | 35 | Goulds Water Technology | 42.0 | 1577.1 @ 1 |
 | pumpproducts.com | 10GBS1012K4 | 1577.1 | 1 | In Stock | 10 | Goulds | | 1577.1 @ 1 |
 | sustainablesupply.com | C1735843 | 1606.33 | 1 | In Stock | | Goulds Water Technology | 42.0 | 1606.33 @ 1 |
 | Raptor Supplies | AC6BFR | 2236.733577 | 1 | In Stock | | GOULDS WATER TECHNOLOGY | | 2236.733577 @ 1 |
 | Zoro | G7010184 | 2253.0 | 1 | In Stock | 65 | Goulds Water Technology | 42.0 | 2253.0 @ 1 |
