Goulds 50SPM10

B00M1U6VKU

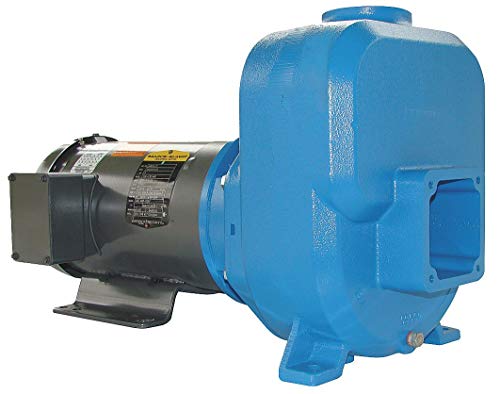

Goulds 50SPM10 Self Priming Pump, 5 HP, 230 V, 1 PH, ODP

Goulds 50SPM10 Self Priming Pump, 5 HP, 230 V, 1 PH, ODPzoom

Attributes

Key Value
Amps21.5
Best Efficiency Head90 to 120 ft
Best Efficiency Range G.120 to 160 gpm @ 120 to.
BrandGoulds Water Technology
Compatible Discharge Pi.2 1/2 in
Compatible with Media T.Water
ConnectionNPT
Discharge2-1/2"
Discharge TypeNPT
DutyContinuous
Duty - PumpsContinuous
Duty CycleContinuous
ElastomersBUNA-N
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.167 gpm
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 5 ft of Hea.218 gpm
Flow Rate @ 50 ft of He.Not Applicable
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame184JM
Frequency60 HZ
GPM @ 15 PSI235
GPM @ 20 PSI223
GPM @ 25 PSI215
GPM @ 30 PSI198
GPM @ 35 PSI178
GPM @ 40 PSI165
GPM @ 45 PSI148
GPM @ 50 PSI130
GPM @ 55 PSI110
GPM @ 60 PSI80
Height13 1/4 in
Horsepower5 HP
Housing300 Stainless Steel
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP5
HP - Pumps5 HP
Hz60
Impeller DesignClosed
Impeller MaterialCast Iron, Silicon Bron.
Impeller Size5.94"
Impeller TypeClosed
Inlet3", 3 in NPT
Inlet Pressure15 psi
Inlet Size - Pumps3 in NPT
Intake and Discharge Si.3 in , 2 1/2 in
ItemCentrifugal Pump
Item - Self Priming Pum.Self Priming Centrifuga.
Length23 in
Length (Straight Wirewa.23 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max Flow240.00 GPM
Max Head148.00 FT
Max Temp (?F)160
Max. Case Pressure85 psi
Max. Dia. Solids1/8"
Max. Dia. Solids - Pumps1/8 in
Max. Head148 ft.
Max. Head - Pumps148 ft
Max. Pressure64 psi
Max. Pressure - Pumps64 psi
Max. Specific Gravity1
Max. Temp - Pumps160 Degrees F
Maximum Feet of Head115.5 ft
Maximum RPM3,500 RPM
Mechanical SealCarbon vs. Ceramic
MotorODP
Motor EnclosureODP
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure BroadODPF
Motor Frame Designation184JM
Motor RPM3,500 RPM
Motor TypeODP
MPN50SPM10
Outlet2-1/2 in NPT
Outlet Size - Pumps2-1/2 in NPT
Overall Height13.2 in
Overall Length23 in
Overall Width11.4 in
Phase1
Phase - Pumps1
Phase Broad1
Port RotationTop
Port Rotation - PumpsNo
Product TypeSimple product
Pump Housing MaterialCast Iron
Pump Housing Material B.Ir
Pumping ApplicationDewatering, Lawn Irriga.
Seal MaterialCarbon/Ceramic
Seal TypeMechanical
Self-PrimingYes
SeriesPrime Line SPM
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.50 psi
Solid Diameter (Maximum)0.13 in
Speed (RPM)3500
Suction Lift25 ft.
Suction Lift - Pumps25 ft
UPC69766641742
Voltage230, 208-230V
Voltage - Pumps230V AC
Weight180.000000
Wetted Material316 Stainless Steel, Br.
Wetted Materials300 Stainless Steel, 31.
Width10 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomandersonprocess.com50SPM103028.91In Stock35Goulds Water Technology180.03028.9 @ 1
thumbzoompumpproducts.com50SPM103028.91In Stock10Goulds3028.9 @ 1
thumbzoomsustainablesupply.comC17407533571.541In StockGoulds Water Technology153.03571.54 @ 1
thumbzoomRaptor SuppliesAB4FJU3993.50946151In StockGOULDS WATER TECHNOLOGY3993.5094615 @ 1
thumbzoomZoroG05432864527.01In Stock26Goulds Water Technology153.04527.0 @ 1
