- mpn50SPM90
- brandname: Goulds Water Technology
- manufacturername: Goulds Water Technology

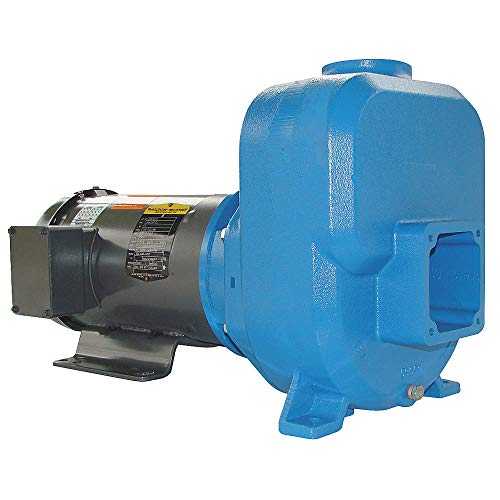

Centrifugal Pump, 5 HP, 11.8/5.9 Amps
- Brand: Goulds Pump
- PartNumber: 50SPM90
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GOULDS WATER TECHNOLOGY
- Label: GOULDS WATER TECHNOLOGY
Attributes
| Key | Value |
|---|
| Amps | 11.8/5.9 |
| Best Efficiency GPM @ P. | 140 gpm @ 110 ft |
| Best Efficiency Head | 90 to 120 ft |
| Best Efficiency Range G. | 120 to 160 gpm @ 120 to. |
| Brand | Goulds Water Technology |
| Compatible Discharge Pi. | 2 1/2 in |
| Compatible Intake Pipe . | 3 in |
| Compatible with Media T. | Water |
| Connection | NPT |
| Discharge | 2-1/2" |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty - Pumps | Continuous |
| Duty Cycle | Continuous |
| Elastomers | BUNA-N |
| Feet of Head (Minimum) | 46.2 ft |
| Flow Rate @ 1 ft of Hea. | Not Applicable |
| Flow Rate @ 10 ft of He. | 211 gpm |
| Flow Rate @ 100 ft of H. | Not Applicable |
| Flow Rate @ 140 ft of H. | Not Applicable |
| Flow Rate @ 15 ft of He. | Not Applicable |
| Flow Rate @ 160 ft of H. | Not Applicable |
| Flow Rate @ 180 ft of H. | Not Applicable |
| Flow Rate @ 20 ft of He. | 167 gpm |
| Flow Rate @ 200 ft of H. | Not Applicable |
| Flow Rate @ 220 ft of H. | Not Applicable |
| Flow Rate @ 240 ft of H. | Not Applicable |
| Flow Rate @ 280 ft of H. | Not Applicable |
| Flow Rate @ 30 ft of He. | Not Applicable |
| Flow Rate @ 5 ft of Hea. | 218 gpm |
| Flow Rate @ 50 ft of He. | Not Applicable |
| Flow Rate @ 70 ft of He. | Not Applicable |
| Flow Rate @ 80 ft of He. | Not Applicable |
| Flow Rate @ 90 ft of He. | Not Applicable |
| Frequency | 60 Hz |
| GPM @ 15 PSI | 235 |
| GPM @ 20 PSI | 223 |
| GPM @ 25 PSI | 215 |
| GPM @ 30 PSI | 198 |
| GPM @ 35 PSI | 178 |
| GPM @ 40 PSI | 165 |
| GPM @ 45 PSI | 148 |
| GPM @ 50 PSI | 130 |
| GPM @ 55 PSI | 110 |
| GPM @ 60 PSI | 80 |
| Horsepower | 5 hp |
| Housing | 300 Stainless Steel |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| HP | 5 |
| HP - Pumps | 5 hp |
| Hz | 60 |
| Impeller Design | Closed |
| Impeller Material | Cast Iron, Silicon Bron. |
| Impeller Size | 5.94" |
| Impeller Type | Closed |
| Inlet | 3", 3 in NPT |
| Inlet Pressure | 15 psi |
| Inlet Size - Pumps | 3 in NPT |
| Intake and Discharge Si. | 3 in , 2 1/2 in |
| Item | Centrifugal Pump |
| Item - Self Priming Pum. | Self Priming Centrifuga. |
| Length | 23 in |
| Length (Straight Wirewa. | 23 in |
| Max Flow | 240.00 GPM |
| Max Head | 148.00 FT |
| Max Temp (?F) | 160 |
| Max. Case Pressure | 85 psi |
| Max. Dia. Solids | 1/8" |
| Max. Dia. Solids - Pumps | 1/8 in |
| Max. Head | 148 ft. |
| Max. Head - Pumps | 148 ft |
| Max. Liquid Temp. | 160 Degrees F |
| Max. Pressure - Pumps | 64 psi |
| Max. Temp - Pumps | 160 Degrees F |
| Maximum Flow Rate | 218 gpm |
| Maximum RPM | 3,500 RPM |
| Mechanical Seal | Carbon vs. Ceramic |
| Minimum Flow Rate | 65 gpm |
| Motor | WD-PE |
| Motor Enclosure | TEFC |
| Motor Enclosure - Pumps | Totally Enclosed Fan-Co. |
| Motor Enclosure Broad | TEFC |
| Motor Enclosure Type | TEFC |
| Motor RPM | 3,500 RPM |
| Motor Type | TEFC |
| MPN | 50SPM90 |
| Nameplate Voltage | 208-230/460V AC |
| Nominal Voltage | 208-230/460V AC |
| Old Part Number | 50SPM40 |
| Outlet | 2-1/2 in NPT |
| Outlet Size - Pumps | 2-1/2 in NPT |
| Overall Height | 13.2 in |
| Overall Length | 23 in |
| Phase | 3 |
| Phase - Pumps | 3 |
| Phase Broad | 3 |
| Port Rotation - Pumps | No |
| Product Type | Simple product |
| Pumping Application | Dewatering, Lawn Irriga. |
| Seal Material | Carbon/Ceramic |
| Seal Type | Mechanical |
| Self-Priming | Yes |
| Series | SP, Prime Line SPM |
| Shaft Material | Stainless Steel |
| Shut Off Pressure (Maxi. | 50 psi |
| Solid Diameter (Maximum) | 0.13 in |
| Speed (RPM) | 3500 |
| Standards | ANSI 61, NSF Certified |
| Suction Lift | 25 ft. |
| Suction Lift - Pumps | 25 ft |
| Voltage | 230/460V, 208-230/460 |
| Voltage - Pumps | 208 to 230/460V AC |
| Weight | 136.000000 |
| Wetted Materials | 300 Stainless Steel, 31. |
