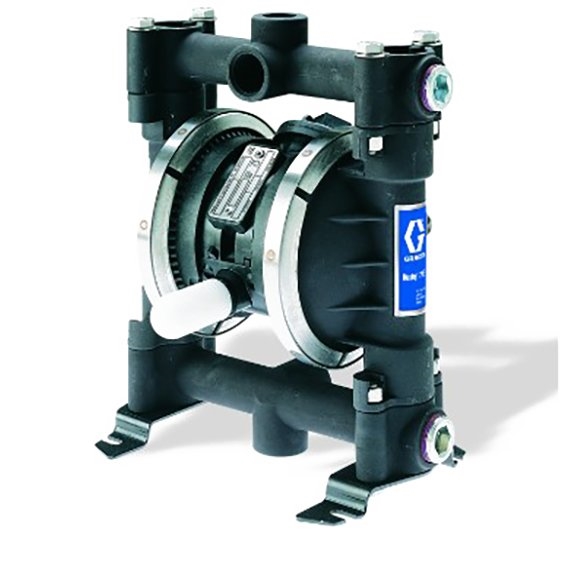

D43266 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air exhaust port size (in) | 3/8 |
| Air exhaust port thread gender, Air inlet thread gender, Fluid inlet thread gender, Fluid outlet thread gender | Female |
| Air exhaust port thread type, Air inlet thread type, Fluid inlet thread type, Fluid outlet thread type | NPT |
| Air inlet size (in) | 1/4 |
| Application | Industrial |
| Ball material, Diaphragm compatible material, Diaphragm Material | Santoprene |
| Center section material | Polypropylene |
| Compatible material | Antifreeze;Detergents;Motor Oil;Grease & Oil;Hydraulic Fluid;Cutting Oil;Water - Wastewater Treatment;Water;Ink |
| Connection Type | Threaded |
| Dimension uom code | IN |
| Division code | PRO |
| Fluid inlet size (cm), Fluid outlet size (cm) | 1.905 |
| Fluid inlet size (in), Fluid outlet size (in) | 3/4 |
| Fluid inlet size (mm), Fluid outlet size (mm) | 19.05 |
| Fluid section material, Material | Aluminum |
| Manifold configuration | Center Port |
| Manifold o-ring material | PTFE |
| Maximum air consumption (scfm) | 28 |
| Maximum air pressure (bar), Maximum fluid pressure (bar) | 7 |
| Maximum air pressure (kpa), Maximum fluid pressure (kpa) | 700 |
| Maximum air pressure (mpa), Maximum fluid pressure (mpa) | 0.7 |
| Maximum air pressure (psi), Maximum fluid pressure (psi) | 100 |
| Maximum cycle rate (cpm) | 400 |
| Maximum flow rate (gpm) | 16 |
| Maximum flow rate (l/min) | 60.6 |
| Maximum operating temperature (?c) | 107 |
| Maximum operating temperature (?f) | 225 |
| Maximum solid size (cm) | 0.2383 |
| Maximum solid size (in) | 0.09375 |
| Maximum solid size (mm) | 2.383 |
| Minimum operating temperature (?c) | 4 |
| Minimum operating temperature (?f) | 40 |
| Overall height (in) | 10.43 |
| Power source | Air |
| Seat Material | Acetal |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 8.5 |
