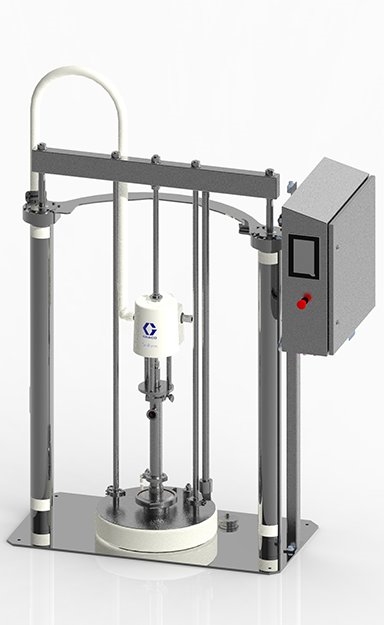

SDU.A03AAB3AE0C31 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Ambient/warm melt/hot melt, Maximum operating temperature (?f) | 90 |
| Application | Food;Personal Care |
| Application text | High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps |
| Compatible drum height (cm) | 101.6 |
| Compatible drum height (in) | 40 |
| Compatible drum height (mm) | 1016 |
| Compatible drum inside diameter (cm) | 54.6-59.0 |
| Compatible drum inside diameter (in) | 21.5-23.25 |
| Compatible drum inside diameter (mm) | 546-590 |
| Container type | Drum |
| Control panel material, Frame material, Ram material | Stainless Steel |
| Control panel type | Enclosed |
| Dimension uom code | IN |
| Division code | PRO |
| Finish/coating | Bead Blast |
| Includes | Stainless Steel Ram Piston Rods |
| Material container volume (gal) | 55 |
| Material container volume (l) | 208 |
| Maximum air inlet pressure (bar) | 6.89 |
| Maximum air inlet pressure (kpa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum flow rate (gpm) | 4 |
| Maximum flow rate (l/min) | 15.1 |
| Maximum fluid pressure (bar), Maximum working pressure (bar) | 44.8 |
| Maximum fluid pressure (kpa), Maximum working pressure (kpa) | 4480 |
| Maximum fluid pressure (psi), Maximum working pressure (psi) | 650 |
| Maximum height (cm) | 295 |
| Maximum height (ft) | 9.7 |
| Maximum height (in) | 116 |
| Maximum height (m) | 2.95 |
| Maximum height (mm) | 2946 |
| Maximum operating temperature (?c) | 32 |
| Maximum working pressure (mpa) | 4.5 |
| Minimum height (cm) | 194 |
| Minimum height (ft) | 6.4 |
| Minimum height (in) | 76.2 |
| Minimum height (m) | 1.94 |
| Minimum height (mm) | 1935 |
| Overall depth (cm) | 69.8 |
| Overall depth (in) | 27.5 |
| Overall depth (mm) | 699 |
| Overall width (cm) | 146 |
| Overall width (in) | 57.5 |
| Overall width (mm) | 1461 |
| Power type | Pneumatic |
| Pump ratio | 6:1 |
| Pump type | Piston |
| Type | Drum Unloader |
| Weight (kg) | 23.9712 |
| Weight (lb) | 528 |
| Wetted Material | 316 Stainless Steel;Polychloroprene;Nitrile;Nylon;UHMWPE;PTFE |
