Value N04100.075.0175

mpnN04100.075.0175
brandname: GRAINGER
manufacturername: GRAINGER

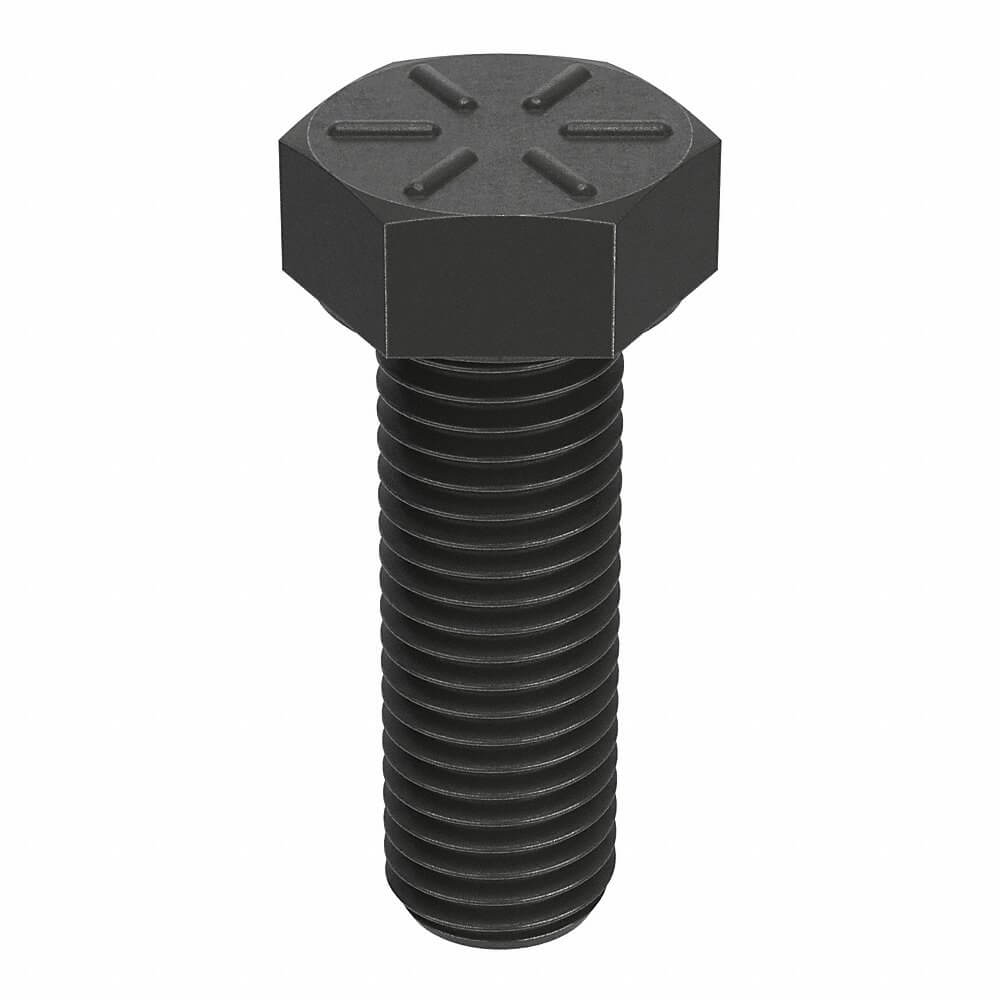

HHCS, 3/4-10x1-3/4, Steel, Gr 8, Plain, PK10

HHCS, 3/4-10x1-3/4, Steel, Gr 8, Plain, PK10

zoom

Brand: Value
PartNumber: N04100.075.0175
Model: N04100.075.0175
PackageQuantity: 1
Binding: Misc.

Attributes

Key	Value
Basic Material	Steel
Bolt Material	Steel
Country of Origin (subj.	United States
Dia./Thread Size	3/4"-10
Dimensional Standards	ASME B18.2.1
Dimensional Standards	ASME B18.2.1
Drive	Hex
Fastener Length	1 3/4 in
Fastener Finish	Plain
Fastener Industry Stand.	ASME B18.2.1
Fastener Length	1 3/4 in, 1-3/4 in
Fastener Thread Style	Fully Threaded
Fastener Thread Type	UNC (Coarse)
Finish	Black Oxide
Globally Sourced	Made in USA*
Head Height	15/32 in
Head Style	Hex
Head Type	Hex
Head Width	1.125 in, 1 1/8 in
Hex Head Cap Screw Type	Hex Head Cap Screw
Item	Hex Head Cap Screw
Manufacturer Location	Made in USA*
Material	Steel
Material Grade	Grade 8
Material Grade/Class	Grade 8
Material Quality Standa.	SAE J429
Material Quality Standa.	SAE J429
Maximum Temperature	302 Degrees F
Minimum Temperature	-58 Degrees F
Minimum Thread Length	1 3/4 in
Overall Length	1 3/4 in
Package Quantity	10 PK
Proof Load	120,000 psi
Rockwell Hardness	C33 to C39, HRC33
Screw Industry Standards	ASME B18.2.1
Screw Size	3/4 in
Standards	ASME B18.2.1 SAE J429
System of Measurement	Inch
Temp. Range	-58 Degrees to 302 Deg.
Tensile Strength	150,000 psi
Thread Direction	Right Hand
Thread Fit	2A
Thread Pitch	Fully Threaded
Thread Size	3/4"-10
Thread Style	Fully Threaded
Thread Type	UNC (Coarse), Coarse
Threadlocker Minimum Te.	3/4"-10
Type	Hex Head Cap Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0326825	13.0	1	10		Zoro Select	3.15	13.0 @ 10
	grainger.ca	WWG38TN18	26.73143498	1	10		GRAINGER APPROVED	3.15	26.73143498 @ 10
	Raptor Supplies	AH8HJY	34.749585	1	10		GRAINGER		34.749585 @ 10
