mpn:
brand:
manufacturer:
MPN:
Weight:
0.006875
Weight:
0.006875 LB
Preferred Price:
11.94
Min Offer Price:
10.32
Price:
11.94
Min Simple Price:
4.29
Absolute Min Price:
7.03
Min Price:
7.03
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
jM3MDU:::4FLT3
sku:
jM3MDU::R8:4FLT3@y0
condition:
11
seller:
Zoro
amzMan:
grainger approved
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid-Scale |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Application | Test and Measurement |
| Basic Gauge Case Material | Plastic |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back, Cleaned for Oxygen Service, Field Fillable, Freeze Resistant Movement, Includes Calibration Certificate, Includes Mounting Hardware, Includes Vent Plug, Liquid-Filled Case, Non-Sparking, Panel-Mountable, Removable Bezel | No |
| Case Color, Case Colour, Color, Gauge Case Color | Black |
| Connection Location, Process Connection Location | Bottom |
| Connection Size | 1/8 in NPT |
| Dial Colour | White |
| Dial Size (In.) | 1-1/2 |
| Dry Dampening Feature, Gauge Case Liquid, Vibration Resistance | None |
| For Use With | Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application | Test |
| Gauge Case Material, Material | ABS plastic |
| Gauge Connection Size, Process Connection Size | 1/8 in |
| Gauge Connection Type | MNPT |
| Gauge Lens Material, Lens Material | Acrylic |
| Gauge Nominal Dial Size, Nominal Dial Size | 1 1/2 in |
| Gauge Primary Range Units, Primary Scale Units | psi |
| Gauge Primary Range Values | 0 to 5000 |
| Gauge Sensor Material, Sensor Material | Bronze |
| Hazardous Location Rating, IP/NEMA Rating | Not Rated |

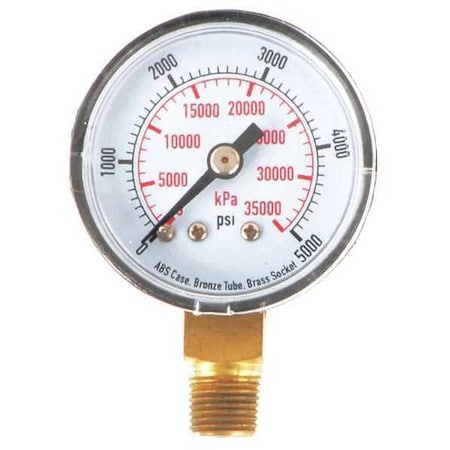

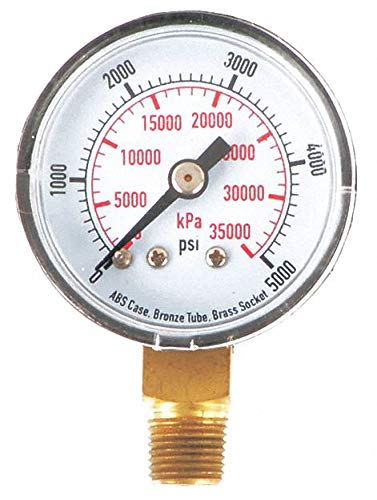

| Item | Commercial Pressure Gauge |
| Mounting Type | Stem-Mount |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 5,000 |
| Primary Scale Minor Graduations | 1, 2 |
| Process Connection Gender | Male |
| Process Connection Type | NPT |
| Range | 0 to 35,000 kPa, 0 to 5000 |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 35,000 |
| Secondary Scale Units | kPa |
| Smallest Graduation | 100 psi |
| Socket Material | Brass |
