Grayhill 70-OAC5A

B005T5JW1Y

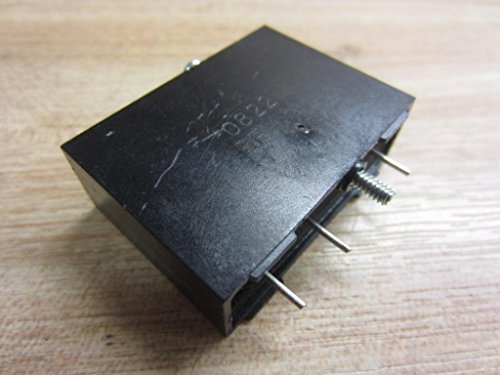

GRAYHILL 70-OAC5A 3.5 A 280 VAC Standard Normally Closed Through Hole AC Output Module - 1 item(s)

GRAYHILL 70-OAC5A 3.5 A 280 VAC Standard Normally Closed Through Hole AC Output Module - 1 item(s)zoom

Attributes

Key Value
ApplicationControl Systems ; Data .
Base Product Number70-OAC
CategoryRelays
ColorBlack
Connection to HostBoard Mount
Current - Input16 mA
Current - Output3.5A
Depth0.6 in
Dimensions1.7 x 1.25 x 0.6 in
FeaturesHold Down Screw
For Use WithIndustrial Control & Da.
Input Current16 mA
Input Resistance240 Ohms
Insulation Resistance100 MegaOhms
Isolation Voltage4000 VAC
Leakage Current4 mA (RMS)
Length1.7 in
Maximum Operating Tempe.+100 ?C
MfrGrayhill Inc.
Minimum Operating Tempe.-40 ?C
Module TypeDigital
Mounting Type5 Pin I/O Mounting Board
Number of Channels1
Number of IO Ports1
Operating Temperature-40 to +100 ?C
Operating Voltage240 V
Output24 to 280 VAC
Output TypeAnalog
PackageBulk
Power Dissipation1 W
Primary TypeOutput
Product HeaderAC Output Module
Product StatusActive
Range Output24 to 280 VAC
SeriesStandard Series, 70
Special FeaturesBuilt-In Status LED ; N.
StandardsUL Listed, CSA Certifie.
StyleStandard
Supply Voltage5 VDC
Temperature Operating R.-40 to +100 ?C
Turn Off Time8.33ms, 8.33 ms (Max.)
Turn On Time8.33ms, 8.33 ms
TypeAC Output Module
Voltage - Input5VDC
Voltage - Output24 ~ 280VAC
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH353648113.171137Grayhill, Inc.13.17 @ 1
Mouser706-70-OAC5A17.331141Grayhill17.33 @ 1
Verical70-OAC5A19.044286Grayhill19.04 @ 4
us.rs-online.com7021718521.811181Grayhill21.81 @ 1
Digi-Key183561121.811391Grayhill Inc.21.81 @ 1
thumbzoomNewark87F367221.82152GRAYHILL21.82 @ 1
thumbzoomComponent Electronics718-2223.08123Grayhill23.08 @ 1
AmazonTPB07PP8189F78.321In Stock1Grayhill78.32 @ 1
