- mpn385364
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

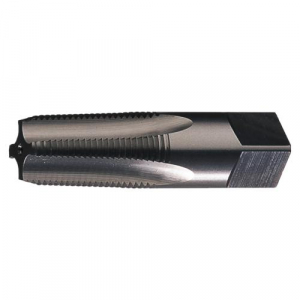

Pipe Tap, Taper, 1/8-27, Bright, 4 Flt
- Brand: Greenfield Threading
- PartNumber: 385364
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | Q |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 6 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 0.1250" |
| Drill Bit Size | 21/64 in, Q |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Hook Type | Medium |
| Item | Pipe Tap |
| List Number | PTT |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, M: Stainless. |
| Measurement System | Imperial |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 2-1/8 in, 2.1250", 2-1/. |
| Overall Length (Metric) | 53.97mm |
| Pitch Diameter Limit | H3 |
| Product Type | Tapered Pipe Tap |
| Series | PTT, Medium Hook Taper |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.437" |
| Shank Diameter | 7/16 in |
| Shank End Feature | Square |
| Shank Length | 1 3/8 in |
| Shank Size | 0.4375", 0.4375 in |
| Shank Size (Metric) | 11.11mm |
| Shank Square Length | 0.3750" |
| Shank Square Length (Me. | 9.52mm |
| Shank Square Width | 0.3280" |
| Shank Square Width (Met. | 8.33mm |
| Square Size | 0.328 in, 0.3280 in |
| Standards | USCTI Table 311 |
| Style | PTT |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming, Taper |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Pipe |
| Tap Finish | Bright |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Size | 1/8" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.3120" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/8"-27 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1/8-27 |
| Thread Creation | Thread Cutting |
| Thread Form | NPT |
| Thread Length | 0.75 in, 0.7500", 3/4",. |
| Thread Length (Metric) | 19.05mm |
| Thread Pitch | 27 |
| Thread Size | 1/8", 1/8-27 NPT, 1/8"-. |
| Thread Standard | NPT |
| Tool Size | 1/8-27 NPT |
| Type | Straight Flute |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6108839 | 23.28 | 2 | In Stock | | Greenfield Threading | | 23.28 @ 2 |
 | usmegastore.com | 385364 | 23.31 | 1 | In Stock | | Greenfield Threading | | 23.31 @ 1 |
 | heavydutydepot.com | 385364 | 23.31 | 5 | In Stock | | Greenfield Threading | | 23.31 @ 5 |
 | Zoro | G4357105 | 24.45 | 1 | 79 | | Greenfield Threading | 0.01 | 24.45 @ 1 |
 | rshughes.com | 662355-16205 | 25.98 | 1 | In Stock | 35 | Greenfield Threading | | 25.98 @ 1 |
 | Raptor Supplies | AA7ACB | 54.504333 | 1 | In Stock | | GREENFIELD TAP | | 54.504333 @ 1 |
