- mpn385458
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

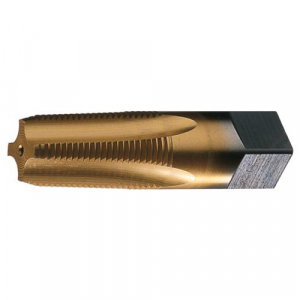

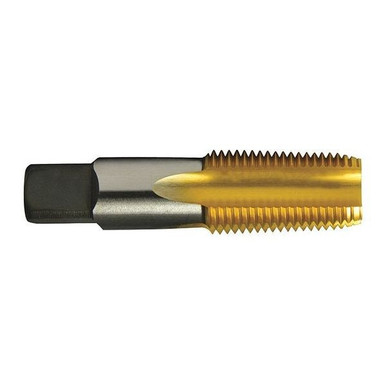

Greenfield Threading Tap Inch 1/2-14 Thread Size TiN
- Brand: Greenfield Threading
- PartNumber: 385458
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 0.7031 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Current Stock | 16 |
| Cutting Direction | Right Hand |
| Diameter | 0.5000" |
| Drill Bit Size | 11/16 in, 45/64 in |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| International Shipping | No |
| Item | Pipe Tap |
| List Number | PTT-TN |
| Material | HSS, High-Speed Steel |
| Material Application | K: Cast Iron, M: Stainl. |
| Material Grade - Machin. | PTT-TN |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 385458 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 3.125 in, 3.1250", 3-1/. |
| Overall Length (Metric) | 79.38mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Tapered Pipe Tap |
| Series | PTT-TN, Medium Hook Tap. |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.6875", 11/16" |
| Shank Diameter | 11/16 in |
| Shank End Feature | Square |
| Shank Length | 1 3/4 in |
| Shank Size | 0.6875 in, 0.6875" |
| Shank Size (Metric) | 17.46mm |
| Shank Square Length | 0.6250" |
| Shank Square Length (Me. | 15.88mm |
| Shank Square Width | 0.5150" |
| Shank Square Width (Met. | 13.08mm |
| SKU | ZO-G1824501 |
| Spiral Direction | Neutral |
| Square Size | 0.5150 in, 0.515 in |
| Standards | USCTI Table 311 |
| Style | PTT-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | No |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1/2" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.5790" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/2"-14 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1/2-14 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1 3/8 in, 1.3750", 1.37. |
| Thread Length (Metric) | 34.92mm |
| Thread Pitch | 14 |
| Thread Size | 1/2-14 NPT, 1/2"-14, 1/. |
| Thread Standard | NPT |
| Threads per Inch | 14 |
| Tool Size | 1/2-14 NPT |
| Type | Straight Flute |
| UPC | 093367854584 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | heavydutydepot.com | 385458 | 59.15 | 2 | In Stock | | Greenfield Threading | | 59.15 @ 2 |
 | usmegastore.com | 385458 | 64.28 | 1 | In Stock | | Greenfield Threading | | 64.28 @ 1 |
 | MRO Supply | 6108852 | 64.92 | 1 | In Stock | | Greenfield Threading | | 64.92 @ 1 |
 | Zoro | G1824501 | 64.99 | 1 | 26 | | Greenfield Threading | 0.25 | 64.99 @ 1 |
 | rshughes.com | 933678-54584 | 71.58 | 1 | In Stock | | Greenfield Threading | | 71.58 @ 1 |
 | simsupply.com | ZO-G1824501 | 74.35 | 1 | 16 | | Greenfield Threading | | 74.35 @ 1 |
| grainger.ca | GNF385458 | 99.39187364 | 1 | In Stock | | GREENFIELD THREADING | 2177.0 | 99.39187364 @ 1 |
