- mpn385760
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

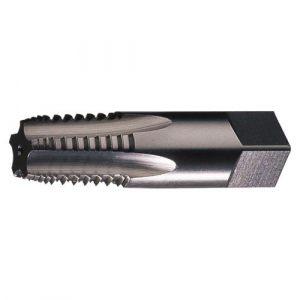

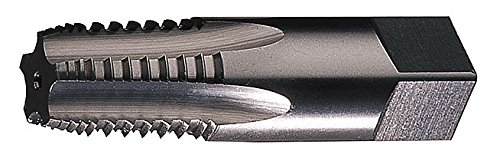

Interrupted Thread Pipe Tap, 1/4-18, Brt
- Brand: Greenfield Threading
- PartNumber: 385760
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 0.4375 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 3 per case |
| Diameter | 0.2500" |
| Drill Bit Size | 27/64 in, 7/16 in |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Item | Pipe Tap |
| Material | HSS, High-Speed Steel |
| Material Application | M: Stainless Steel, P: . |
| Material Grade - Machin. | PTTI |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 5, 4 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 2-7/16", 2 7/16 in, 2.4. |
| Overall Length (Metric) | 61.91mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Stainless Steel, Steel |
| Primary Material Applic. | M, P |
| Product Type | Tapered Pipe Tap |
| Series | Medium Hook Taper, PTTI |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.563", 0.562" |
| Shank End Feature | Square |
| Shank Length | 1 3/8 in |
| Shank Size | 0.5625 in, 0.5625" |
| Shank Size (Metric) | 14.29mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.4210" |
| Shank Square Width (Met. | 10.69mm |
| Spiral Direction | Neutral |
| Square Size | 0.4210 in |
| Standards | USCTI Table 311 |
| Style | PTTI |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | Yes |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1/4" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.4590" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1/4"-18 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1-1/16", 1.0625", 1.062. |
| Thread Length (Metric) | 26.99mm |
| Thread Pitch | 18 |
| Thread Size | 1/4-18 NPT, 1/4", 1/4"-. |
| Thread Standard | NPT |
| Threads per Inch | 18 |
| Tool Size | 1/4-18 NPT |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 385760 | 38.32 | 1 | In Stock | | Greenfield Threading | | 38.32 @ 1 |
 | heavydutydepot.com | 385760 | 38.32 | 3 | In Stock | | Greenfield Threading | | 38.32 @ 3 |
 | Zoro | G4357351 | 41.49 | 1 | 26 | | Greenfield Threading | 0.15 | 41.49 @ 1 |
 | rshughes.com | 662355-16105 | 43.63 | 1 | In Stock | 35 | Greenfield Threading | | 43.63 @ 1 |
| motionindustries.com | 05691845 | 55.96 | 1 | In Stock | | Greenfield Industries | | 55.96 @ 1 |
| grainger.ca | GNF385760 | 56.34431978 | 1 | In Stock | | GREENFIELD THREADING | 0.15 | 56.34431978 @ 1 |
 | Raptor Supplies | AA7ADB | 82.952064 | 1 | In Stock | | GREENFIELD TAP | | 82.952064 @ 1 |
