- mpn385885
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

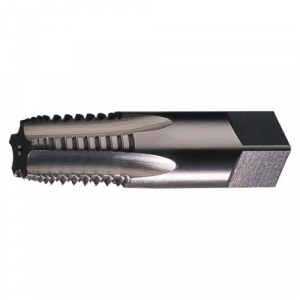

Interrupted Thread Pipe Tap, 1-11.5, Brt
- Brand: Greenfield Threading
- PartNumber: 385885
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| 75% Thread Drill Size | 1.1406 in |
| Application | Thru Hole |
| Brand | Greenfield Threading |
| Case Quantity | 1 per case |
| Chamfer Type | Semi-Bottoming |
| Cutting Direction | Right Hand |
| Diameter | 1.0000" |
| Drill Bit Size | 1 1/8 in, 1 9/64 in, 1-. |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Helix Angle | 0 Degrees |
| Hook Type | Medium |
| Item | Pipe Tap |
| List Number | PTTI |
| Material | HSS, High-Speed Steel |
| Material Application | M: Stainless Steel, P: . |
| Material Grade - Machin. | PTTI |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 5 |
| Number of Pieces | 1 |
| Operation Type | Thru Hole |
| Overall Length | 3-3/4", 3.75 in, 3.7500. |
| Overall Length (Metric) | 95.25mm |
| Pitch Diameter Limit | Not Rated |
| Primary Material Applic. | Stainless Steel, Steel |
| Primary Material Applic. | M, P |
| Product Type | Tapered Pipe Tap |
| Series | PTTI, Medium Hook Taper |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 1.125" |
| Shank Diameter | 1-1/8 in |
| Shank End Feature | Square |
| Shank Length | 2 in |
| Shank Size | 1.1250", 1.125 in |
| Shank Size (Metric) | 28.57mm |
| Shank Square Length | 0.8125" |
| Shank Square Length (Me. | 20.64mm |
| Shank Square Width | 0.8430" |
| Shank Square Width (Met. | 21.41mm |
| Spiral Direction | Neutral |
| Square Size | 0.843 in, 0.8430 in |
| Standards | USCTI Table 311 |
| Style | PTTI |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 311 |
| Tap Chamfer | Semi-Bottoming |
| Tap Construction | Semi-Bottoming, Medium . |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Hook | Medium (5-10) |
| Tap Hook Type | Medium (5-10) |
| Tap Interrupted Thread | Yes |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Size | 1" |
| Tap Spiral Point | No |
| Tap Standard Projection | 0.6780" |
| Tap Style | Pipe, Tapered Pipe Tap |
| Tap Thread Size | 1"-11-1/2, 1"-11 1/2 |
| Tap Thread Type | NPT |
| Tap Truncated Threads | No |
| Tap Type | Pipe Tap |
| Thread | 1-11-1/2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | NPT |
| Thread Length | 1.7500", 1-3/4", 1-3/4 . |
| Thread Length (Metric) | 44.45mm |
| Thread Pitch | 11.5 |
| Thread Size | 1-11.5 NPT, 1", 1"-11-1. |
| Thread Standard | NPT |
| Threads per Inch | 11.5 |
| Tool Size | 1-11.5 NPT |
| Type | Straight Flute |
