Attributes
| Key ^ | Value |
|---|---|
| Body Length, Length | 1-13/16" |
| Coil Insulation | Class 105 |
| Coil Resistance | 920.0 ohm |
| Coil Volts | 240VAC |
| Country of Origin (subject to change) | United States |
| Depth | 1-3/16" |
| Duty Cycle | Continuous |
| From Mounting Holes to Plunger Hole | 7/16" |

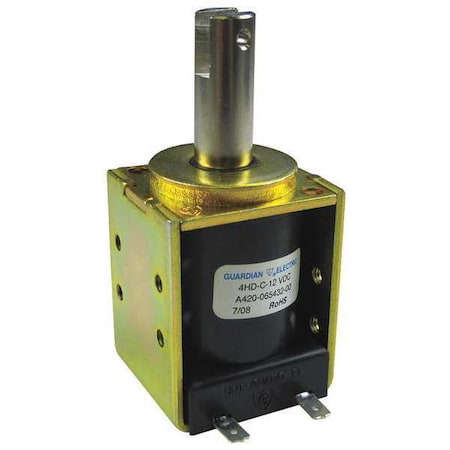

| Item | Solenoid |
| Material of Construction | Steel |
| Mounting Holes | 6-32 UNC -2B (4 Holes) |
| Pull @ 1 In. Stroke | 4.0 oz. |
| Pull @ 1/2 In. Stroke | 9.0 oz. |
| Pull @ 1/4 In. Stroke | 11.0 oz. |
| Pull @ 1/8 In. Stroke | 13.0 oz. |
| Pull @ 3/4 In. Stroke | 7.0 oz. |
| Pull @ 3/8 In. Stroke | 10.0 oz. |
| Pull @ 5/8 In. Stroke | 8.0 oz. |
| Pull Force Range | 4.0 to 13.0 oz. |
| Seated Amps | 920mA |
| Seated Watts | 12 |
| Solenoid Type | Box Frame, Push |
| Standards | UL, RoHs |
| Stroke Range | 1/8" to 1" |
| Terminals | Solder Lug |
| Width | 15/16" |
