Attributes
| Key ^ | Value |
|---|---|
| Balanced to RPM | 25,000 |
| Compatible with Product Type | Inductive Shrink Fit Units |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 0.003 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed) |
| For Use With | Carbide and HSS Tools |
| Hole Dia. | 50.00mm |

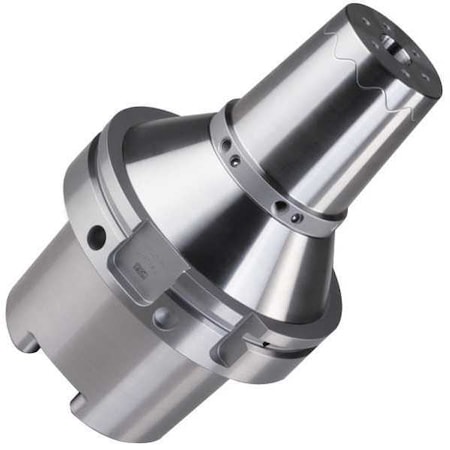

| Item | Shrink Fit Tool Holder |
| List Number | A125.150 |
| Nose Dia. | 82.00mm |
| Package Quantity | 1 |
| Projection | 130.00 mm |
| Projection Gage Line to Nose End | 130.00mm |
| Standards | DIN 69893 |
| Taper Size | HSK125A |
| Tool Depth | 88.00mm |
