brand:
manufacturer:
Weight:
5.0
Weight:
5.0 LB
Preferred Price:
3441.49
Price:
3441.49
Min Simple Price:
1944.35
Absolute Min Price:
2760.97
Min Price:
2760.97
Dimensions:
[12.0, 7.0, 7.0]
qty:
21
simpleSku:
NDkyMA:::A125.156.3/4Z.6.I
sku:
NDkyMA::S4:A125.156.3/4Z.6.I@y0
condition:
11
seller:
Zoro
amzMan:
haimer
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Balanced to RPM | 25,000 |
| Compatible with Product Type | Inductive Shrink Fit Units |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 0.003 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed) |
| For Use With | Carbide and HSS Tools |
| Hole Dia. | 3/4 in |

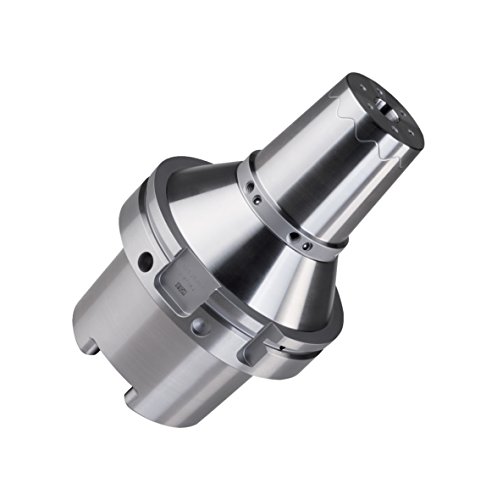

| Item | Shrink Fit Tool Holder |
| List Number | A125.156 |
| Nose Dia. | 2.2800 in |
| Projection | 9 in |
| Projection Gage Line to Nose End | 9.00" |
| Standards | DIN 69893-1 |
| Taper Size | HSK125A |
| Tool Depth | 2.0500 in |
