Hamilton S-SEC-13DB

B007IA465U

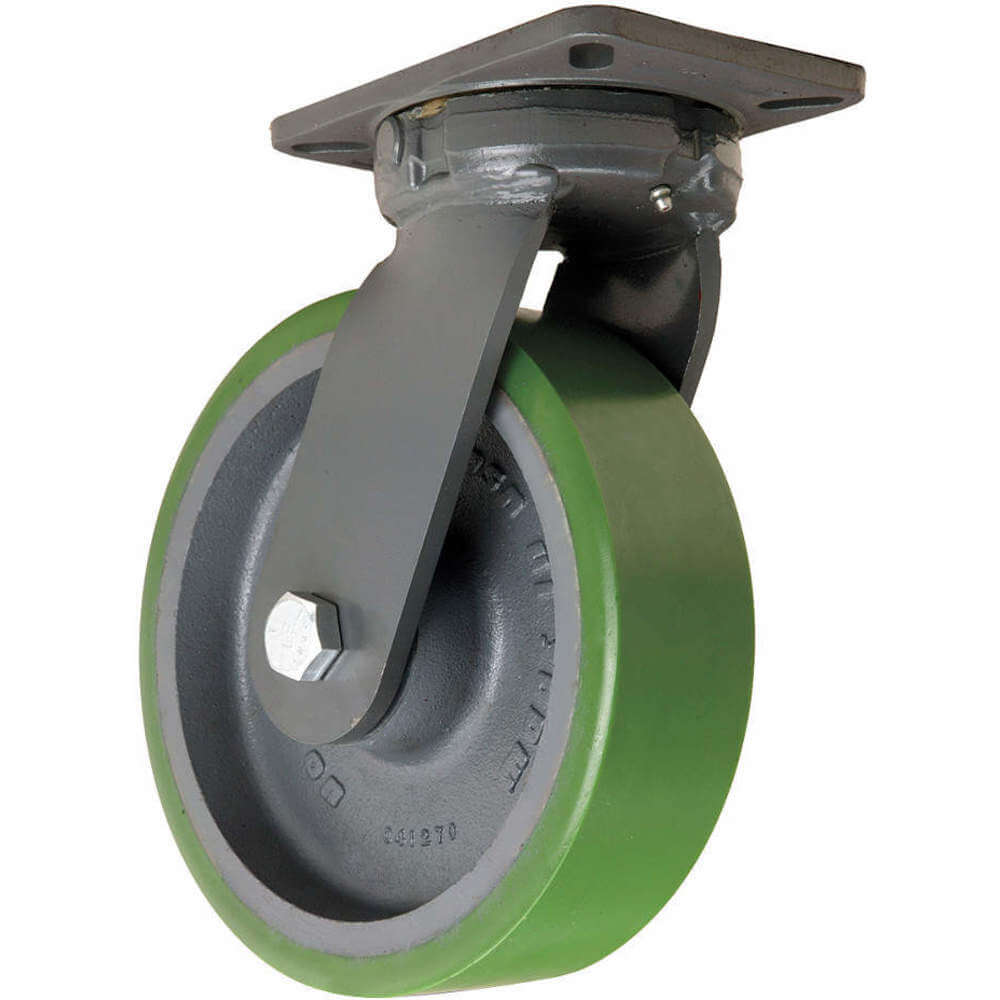

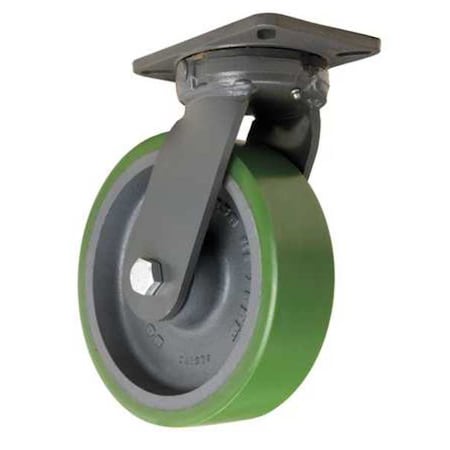

Hamilton S-SEC-13DB Swivel Caster SEC 10X3 DURALAST 3000 Battleship Gray

Hamilton S-SEC-13DB Swivel Caster SEC 10X3 DURALAST 3000 Battleship Grayzoom

Attributes

Key Value
ApplicationAerospace Tooling, All .
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Core MaterialCast Iron
Caster Frame MaterialSteel
caster load capacity ra.2,000 to 3,999 lb
Caster Load Rating RangeHeavy-Duty
Caster Max. Temp.200 Degrees F
Caster Min. Temp.-40 Degrees F
Caster Plate Hole Patte.A
Caster Plate Size5-1/4" x 7-1/4"
Caster Plate Thickness1/2"
Caster Product GroupSwivel Caster
Caster RacewaySingle Ball
caster rig type:Super Endurance
caster series:SEC Series
Caster Sub-TypeSwivel
Caster Swivel Lock TypeNo Lock Included
Caster Temp. Range-40 Degrees to 200 Deg.
Caster Temp. Range Avai.Yes
caster type:Swivel
Caster Wheel BearingsBall
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Polyurethane
Core ColorGray
Country of Origin (subj.United States
Durometer90 Shore A
Extended LeadNo
face width:3 in
FeaturesFloor Protective
Frame FinishEnamel
Frame MaterialForged Steel
IncludesSpanner Bushing
Includes Thread GuardsNo
Inside Bolt Hole Spacing4-1/8 in x 6-1/8 in
ItemKingpinless Plate Caster
load capacity:3000 lbs
Load Rating3000 lb
Load Rating Range3000 to 5999 lb
maximum bolt hole spaci.4-1/8 x 6-1/8 in
minimum bolt hole spaci.3-3/8 x 5-1/4 in
Mounting Bolt Dia.1/2 in
Mounting Height12 1/2 in
Mounting Plate Bolt Hol.A
Mounting Plate Size5 1/4 in x 7 1/4 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Outside Bolt Hole Spaci.3-3/8 in x 5-1/4 in
Overall Height12-1/2"
Plate Caster Bolt Hole .A
Plate Size5-1/4" x 7-1/4"
Plate Thickness1/2"
Replacement Wheel4DU72
StandardsICWM
Swivel ConstructionKingpinless
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeSingle Ball
Thread GuardsNo
tread color:Green
Tread ShapeStandard
Wheel Bearing TypePrecision Ball
wheel bearing type:Precision Ball
Wheel ColorGreen
Wheel Core MaterialCast Iron
Wheel Dia.10 in
wheel diameter:10 in
wheel hardness:95A
wheel material/type:Polyurethane on Iron Co.
Wheel Width3 in
Wheel/Tread ColorGreen
Wheel/Tread Hardness95 Shore A
Wheel/Tread Hardness Ra.Firm
Wheel/Tread MaterialPolyurethane

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0694626386.01In Stock26Hamilton41.24386.0 @ 1
AmazonTPB000R8N1DI394.551In Stock30Hamilton394.55 @ 1
thumbzoomsustainablesupply.comC1547405410.721In StockHamilton41.24410.72 @ 1
thumbzoommotionindustries.com05866147440.231In StockHamilton Caster440.23 @ 1
thumbzoomRaptor SuppliesAB3VKZ664.8009031In StockHAMILTON664.800903 @ 1
