HAMMOND 1414PHA

mpn1414PHA
brandname: Hammond Manufacturing
manufacturername: Hammond Manufacturing

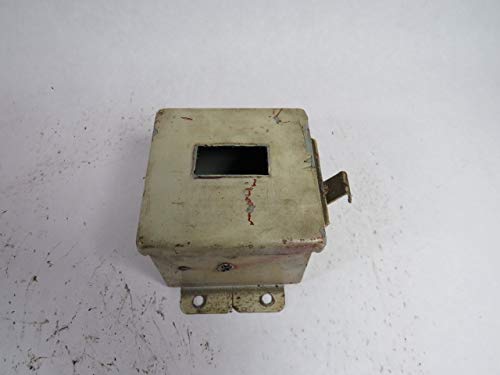

Hammond 1414PHA - Type 12 Mild Steel Junction Box, 1414 PH Series

Brand: HAMMOND
PartNumber: 1414PHA
Model: 1414PHA
PackageQuantity: 1
Binding: Electronics
Manufacturer: Hammond
Label: Hammond

Attributes

Key	Value
Application	Designed for use as ins.
Approvals	CE, CSA, UL
Approximate Depth	3" (76mm)
Approximate Height	4" (102mm)
Approximate Width	4" (102mm)
Area (L x W)	16.0in? (103cm?)
Back Panel Number	Included
Base Product Number	1414
Brand	Hammond Mfg.
Capacity	48 cu-in
Catalog Number	1414PHA
Category	Boxes, Enclosures, Racks
Color	Gray
Composition	Metallic
Configuration	Without Knock-Outs
Container Type	Box
Country of Origin	Canada
Cover Design	Hinged
Cover Material	Steel
Cover Type	Continuous Hinged
Cubic Capacity	48 Cubic in
Depth	3 in
Depth (In)	3.00
Description	BOX STEEL GRAY 4"L X 4"W
Description:	N12 J Box, Hinge Cover .
Design	Hinged Door, Lid
Detailed Description	Box Metal, Steel Gray H.
Digi-Key Part Number	HM417-ND
Dimensions	4 x 4 x 3 . ; 102 x 102.
Dimensions (H x W x D)	4 x 4 x 3"
Door Design	Hinged (Single Door)
Enclosure Mounting	Panel Mount
Enclosure Series	1414 PH
Estimated Weight	2.13
Family Name	1414 NEMA Family
Family Series	Hammond Manufacturing E.
Features	-
Finish	ANSI 61 Gray, Powder Co.
Gross Weight	2 lbs
Height	3.000" (76.20mm), 4 in
Height (In)	4.00
IEC Rating	IP54
Inner Panel	Sold Separately
IP Rating	IP54
Item Number	1414PHA
Item Type	N12 J Box, Hinge Cover .
Latching Mechanism	Clamps
Length	4 in
Locking Feature	Clamp
Made in USA	No
Manufacturer	Hammond Manufacturing C.
Manufacturer Part Number	1414PHA
Manufacturer Product Nu.	1414PHA
Manufacturer Standard L.	4 Weeks
Material	Steel, Metal, Mild Stee.
Material Flammability R.	-
MFG Part #:	1414PHA
Mfr	Hammond Manufacturing
Mounting	Feet, Wall
Mounting Type	Wall
Nema Rating	12, 13
NEMA Rating	12, 13, NEMA 13, NEMA 1.
NEMA Type	12 and 13
Net Weight	2 lbs
Nominal Depth	3 "
Nominal Height	4 "
Nominal Width	4 "
Number of Doors	1
Options Included	Gasketed Cover, Ground .
Package	Box
Panel Included	No
Part Number	1414PHA
Product Series	1414PH
Product Status	Active
Ratings	IP54, JIC EGP-1-1967, N.
RoHS	Yes
Series	1414 PH Series, 1414
Shipping Info	Shipped from Digi-Key
Size	4 in x 4 in x 3 in, Xtr.
Size / Dimension	4.000" L x 4.000" W (10.
Special Features	Body formed from 16 gau.
Standard	csa, ul, ce
Standards	UL Listed, CSA Certifie.
Sub Brand	1414 PH Series
Supplier:	Hammond Manufacturing
Thickness	14 Gauge
Type	Flanged, 1-Door, Wall M.
UPC	062398034740, 623980347.
UPC Code	623980347400
UPC:	623980347400
Weight	2 lbs (907.2 g)
Width	0 in, 4 in
Width (In)	4.00
Window/Clear Cover	No

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Verical	1414PHA	9.974	1	1		Hammond		9.974 @ 1
Hotenda	H18918	37.92	1	In Stock		Hammond Manufacturing		37.92 @ 1
Carlton Bates Company	62398034740	39.94	1	In Stock		HAMMOND MANUFACTURING		39.94 @ 1
Mouser	546-1414PHA	40.11	1	6		Hammond		40.11 @ 1
Onlinecomponents.com	1414PHA	41.63	1	In Stock		HAMMOND MFG		41.63 @ 1
Enclosure Hub	1414PHA	42.13	1	In Stock		Hammond Manufacturing		42.13 @ 1
turtle.com	HMC 1414PHA	44.77	1	In Stock		Hammond Manufacturing		44.77 @ 1
Solutions Direct	1414PHA	46.25	1	In Stock		Hammond Manufacturing		46.25 @ 1
Galco	1414PHA-HMND	47.26	1	In Stock		Hammond Manufacturing	2.0	47.26 @ 1
Walker Industrial	1414PHA	47.39	1	In Stock	17	Hammond Manufacturing		47.39 @ 1
nemasupply.com	1414PHA	48.01	1	In Stock		Hammond MFG		48.01 @ 1
AmazonTP	B005T5K8GW	48.66	1	In Stock	2	Hammond Manufacturing		48.66 @ 1
Hawk Electronics	1414PHA	49.7	1	In Stock		Hammond Mfg.		49.7 @ 1
Dale-Electric	1414PHA	52.5	1	In Stock		Hammond Manufacturing Co., Inc.		52.5 @ 1
Digi-Key	2360540	53.46	1	4		Hammond Manufacturing	2.0	53.46 @ 1
motorsandcontrol.com	1414PHA	54.15	1	In Stock		Hammond Manufacturing	2.13	54.15 @ 1
gordonelectricsupply.com	1414PHA	54.59	1	In Stock		HAMMOND MFG		54.59 @ 1
Newark	90F9588	55.28	1	101		HAMMOND		55.28 @ 1
kscdirect.com	HAM 1414PHA	56.86	1	In Stock		Hammond Manufacturing		56.86 @ 1
us.rs-online.com	70165173	58.83	1	2		Hammond Manufacturing		58.83 @ 1
crescentelectric.com	112577	75.9	1	In Stock		Hammond Mfg.		75.9 @ 1
Radwell	1414PHA	80.0	1	In Stock		HAMMOND MANUFACTURING		80.0 @ 1
