HAMMOND MFG. 1414PHG

B07R62V6Q7

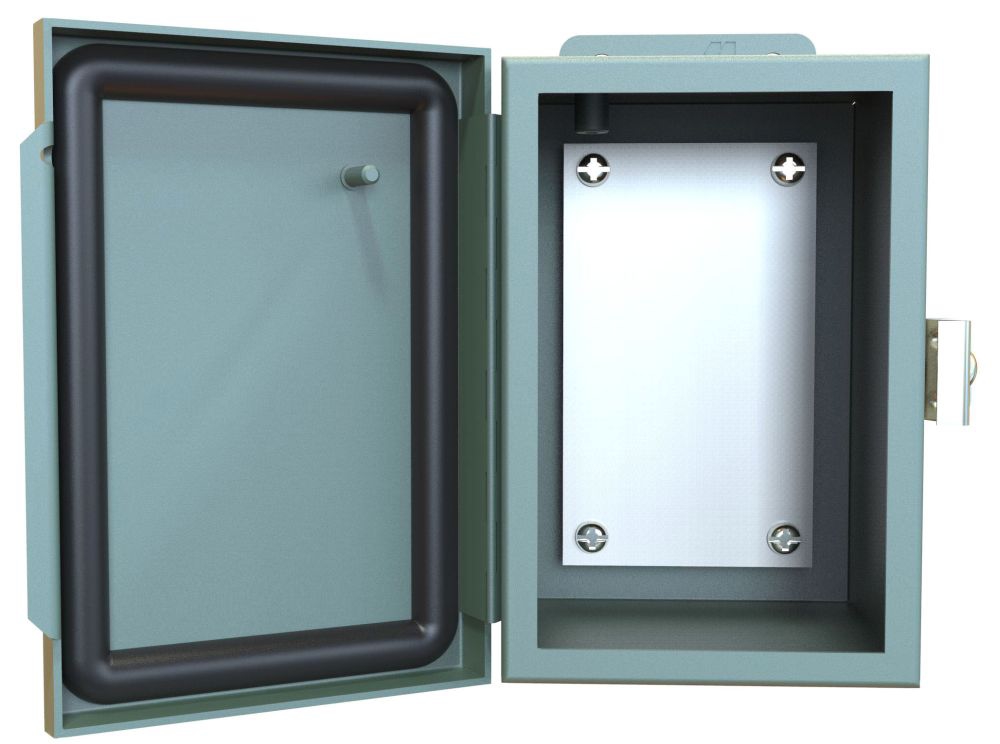

1414PHG, Enclosure - NEMA 12; Continuous Hinge, clamped Cover; Grey; Steel Enclosure; with Inner Panel

1414PHG, Enclosure - NEMA 12; Continuous Hinge, clamped Cover; Grey; Steel Enclosure; with Inner Panelzoom

Attributes

Key Value
Alternate Part No.546-1414PHG
ApplicationDesigned for use as ins.
ApprovalsCE, CSA, UL
Approximate Depth4" (102mm)
Approximate Height8" (203mm)
Approximate Width6" (152mm)
Area (L x W)48.0in? (310cm?)
Back Panel NumberIncluded
Base Product Number1414
BrandHammond Mfg., Hammond M.
Capacity168 cu-in
Catalog Number1414PHG
CategoryBoxes, Enclosures, Racks
ColorGray
CompositionMetallic
ConfigurationWithout Knock-Outs
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover MaterialSteel
Cover TypeContinuous Hinged
Cubic Capacity168 Cubic in
Depth3.5 in, 3-1/2 in
Depth (In)3.50
DescriptionBOX STEEL GRAY 8"L X 6"W
Description:N12 J Box, Hinge Cover .
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part NumberHM420-ND
Dimensions8 x 6 x 3.5 . ; 203 x 1.
Dimensions (H x W x D)8 x 6 x 3.5"
Door DesignHinged (Single Door)
Enclosure MountingPanel Mount
Enclosure Series1414 PH
Estimated Weight6.1
Family Name1414 NEMA Family
Family SeriesHammond Manufacturing E.
FeaturesInterior Panels
FinishANSI 61 Gray, Powder Co.
Gross Weight6 lbs
Height8 in, 3.500" (88.90mm)
Height (In)8.00
IEC RatingIP54
Inner PanelIncluded
IP RatingIP54
Item Number1414PHG
Item TypeN12 J Box, Hinge Cover .
Latching MechanismClamps
Length8 in
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part No.1414PHG
Manufacturer Part Number1414PHG
Manufacturer Product Nu.1414PHG
Manufacturer Standard L.4 Weeks
MaterialSteel, Metal, Mild Stee.
Material Flammability R.-
MFG Part #:1414PHG
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating12, 13
NEMA RatingNEMA 12/13, NEMA 13, 12.
NEMA Type12 and 13
Net Weight6 lbs
Nominal Depth4 "
Nominal Height8 "
Nominal Width6 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
Outside Depth8 in
Outside Height3.5 in
Outside Width6 in
PackageBox
Panel IncludedYes
Panel Size4.88 in W x 6.75 in H
Part Number1414PHG
ProductInstrument Cases
Product CategoryEnclosures, Boxes & Cas.
Product Series1414PH
Product StatusActive
RatingsIP54, JIC EGP-1-1967, N.
RoHSYes
Series1414 PH Series, 1414
Shipping InfoShipped from Digi-Key
SizeSmall, 8 in x 6 in x 3..
Size / Dimension8.000" L x 6.000" W (20.
Special FeaturesBody formed from 16 gau.
Standardcsa, ul, ce
StandardsUL Listed, CSA Certifie.
Sub Brand1414 PH Series
Supplier:Hammond Manufacturing
Thickness14 Gauge
TypeFlanged, 1-Door, Wall M.
UPC062398034870, 623980348.
UPC Code623980348704
UPC:623980348704
Weight6 lbs (2.7 kg)
Width0 in, 6 in
Width (In)6.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH1803753.451In StockHammond Manufacturing53.45 @ 1
Onlinecomponents.com1414PHG56.841In StockHAMMOND MFG56.84 @ 1
thumbzoomCarlton Bates Company6239803487060.591In StockHAMMOND MANUFACTURING60.59 @ 1
thumbzoomturtle.comHMC 1414PHG67.281In StockHammond Manufacturing67.28 @ 1
thumbzoomSolutions Direct1414PHG69.571In StockHammond Manufacturing69.57 @ 1
thumbzoomWalker Industrial1414PHG71.291In Stock17Hammond Manufacturing71.29 @ 1
thumbzoomGalco1414PHG-HMND73.721In StockHammond Manufacturing6.073.72 @ 1
Hawk Electronics1414PHG74.71In StockHammond Mfg.74.7 @ 1
Dale-Electric1414PHG78.981In StockHammond Manufacturing Co., Inc.78.98 @ 1
thumbzoomswatee.com1414PHG79.34151Hammond79.34 @ 1
thumbzoomDigi-Key236048780.41130Hammond Manufacturing6.080.41 @ 1
thumbzoommotorsandcontrol.com1414PHG81.471In StockHammond Manufacturing6.181.47 @ 1
thumbzoomgordonelectricsupply.com1414PHG82.091In StockHAMMOND MFG82.09 @ 1
us.rs-online.com7016516183.51In StockHammond Manufacturing83.5 @ 1
thumbzoomNewark90F959083.631151HAMMOND83.63 @ 1
kscdirect.comHAM 1414PHG85.531In StockHammond Manufacturing85.53 @ 1
AmazonTPB07R62V6Q785.91In Stock2Hammond Mfg85.9 @ 1
thumbzoomcrescentelectric.com278170114.191In StockHammond Mfg.114.19 @ 1
