mpn:
brand:
manufacturer:
MPN:
Description:

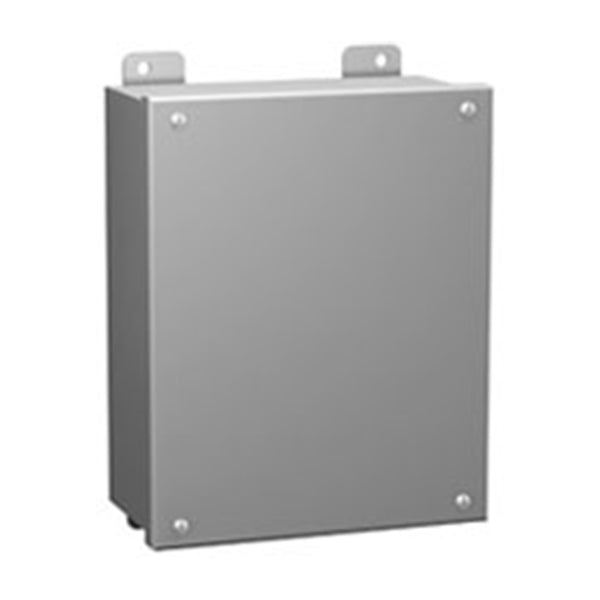

Enclosure, Flanged, Panel, Steel, 4x4x3in, NEMA13, Hinged, 1414 SC Series
Weight:
2.0
Weight:
2.0 LB
Preferred Price:
78.87
Price:
78.87
Min Simple Price:
40.37
Absolute Min Price:
62.32
Min Price:
62.32
Dimensions:
[10.0, 8.0, 7.0]
qty:
21
simpleSku:
jgwODA:::1414SCA
sku:
jgwODA::0Y:1414SCA@y0
condition:
11
seller:
Carlton Bates Company
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water. |
| Approvals | CE, CSA, UL |
| Approximate Depth | 3" (76mm) |
| Approximate Height, Approximate Width | 4" (102mm) |
| Back Panel Number, Inner Panel | Included |
| Body Height | 4 in. |
| Body Length, Height, Width | 4 in |
| Body Width | 3 in. |
| Brand | Hammond Mfg. |
| Capacity | 48 cu-in |
| Catalog Number, Item Number, Manufacturer Part Number, MFG Part #:, Part Number | 1414SCA |
| Color | Gray |
| Composition | Metallic |
| Configuration | Without Knock-Outs |
| Country of Origin | Canada |
| Cover Design | Lift-Off Cover |
| Cover Type, Door Design | Lift-Off |
| Cubic Capacity | 48 Cubic in |
| Depth | 3 in |
| Depth (In) | 3.00 |
| Description: | N12 J Box, Screw Cover - 4 x 4 x 3 - Steel/Gray |
| Dimensions | 4 x 4 x 3 . ; 102 x 102 x 76 in ; mm |
| Dimensions (H x W x D) | 4 x 4 x 3" |
| Enclosure Mounting | Panel Mount |
| Enclosure Series | 1414 SC |
| Estimated Weight | 2 |
| Family Name | 1414 NEMA Family |
| Family Series | Hammond Manufacturing Enclosures, 1414SC Series |
| Finish | ANSI 61 Gray, Cover and Enclosure are Phosphatized and Finished in ANSI/ASA 61 Gray Recoatable Powder Coating, Powder Coated |
| Gross Weight, Net Weight | 2 lbs |
| Height (In), Width (In) | 4.00 |
| IEC Rating, IP Rating | IP54 |
| Item Type | N12 J Box, Screw Cover w/panel |
| Latching Mechanism | Screws |
| Locking Feature | Screw |
| Made in USA, Window/Clear Cover | No |
| Manufacturer | Hammond Manufacturing Co., Inc. |
| Manufacturer, Supplier: | Hammond Manufacturing |
| Material | Steel, Metal, Mild Steel |
| Mounting | Feet |
| Mounting, Mounting Type | Wall |
| NEMA Rating | NEMA 13, NEMA 12/13 |
| NEMA Rating, Nema Rating | 12, 13 |
| NEMA Type | 12 and 13 |
| Nominal Depth | 3 " |
| Nominal Height, Nominal Width | 4 " |
| Number of Doors | 1 |
| Options Included | Gasketed Cover, Ground Stud |
| Panel Included, RoHS | Yes |
| Product Series | 1414SC |
| Series | 1414 Series |
| Series, Sub Brand | 1414 SC Series |
| Size | 4 in x 4 in x 3 in, Xtra Small |
| Special Features | Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Welded brackets provide for enclosure mounting. Cover is secured with captive, plated steel screws, threaded into sealed wells. Oil resistant gaskets are permanently secured. Models larger than 4" x 4" include a removable 14 gauge inner panel. Internal threaded weld studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. |
| Standard | csa, ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Type | Flanged, Wall Mount Enclosures |
| UPC | 062398035650 |
| UPC, UPC Code, UPC: | 623980356501 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Carlton Bates Company | 62398035650 | 40.37 | 40.37 | 1 | In Stock | HAMMOND MANUFACTURING | 40.37 @ Qty: 1+ | ||
| Onlinecomponents.com | 1414SCA | 42.09 | 42.09 | 1 | In Stock | HAMMOND MFG | 42.09 @ Qty: 1+ | |||
| Enclosure Hub | 1414SCA | 44.44 | 44.44 | 1 | In Stock | Hammond Manufacturing | 44.44 @ Qty: 1+ | |||
 | Solutions Direct | 1414SCA | 46.84 | 46.84 | 1 | In Stock | Hammond Manufacturing | 46.84 @ Qty: 1+ | ||
 | Walker Industrial | 1414SCA | 47.99 | 47.99 | 1 | In Stock | 17 | Hammond Manufacturing | 47.99 @ Qty: 1+ | |
 | nemasupply.com | 1414SCA | 48.31 | 48.31 | 1 | In Stock | Hammond MFG | 48.31 @ Qty: 1+ | ||
| Hawk Electronics | 1414SCA | 50.3 | 50.3 | 1 | In Stock | Hammond Mfg. | 50.3 @ Qty: 1+ | |||
| Dale-Electric | 1414SCA | 53.17 | 53.17 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 53.17 @ Qty: 1+ | |||
 | turtle.com | HMC 1414SCA | 53.57 | 53.57 | 1 | In Stock | Hammond Manufacturing | 53.57 @ Qty: 1+ | ||
 | motorsandcontrol.com | 1414SCA | 54.84 | 54.84 | 1 | In Stock | Hammond Manufacturing | 2.0 | 54.84 @ Qty: 1+ | |
 | gordonelectricsupply.com | 1414SCA | 55.59 | 55.59 | 1 | In Stock | HAMMOND MFG | 55.59 @ Qty: 1+ | ||
 | Newark | 84F003 | 55.82 | 55.82 | 1 | 155 | HAMMOND | 55.82 @ Qty: 1+ | ||
 | Automation Direct | 1414SCA | 56.0 | 56.0 | 1 | 73 | Hammond | 2.0 | 56.0 @ Qty: 1+ | |
| kscdirect.com | HAM 1414SCA | 57.58 | 57.58 | 1 | In Stock | Hammond Manufacturing | 57.58 @ Qty: 1+ | |||
| us.rs-online.com | 70165180 | 61.37 | 61.37 | 1 | 6 | Hammond Manufacturing | 61.37 @ Qty: 1+ | |||
 | Galco | 1414SCA-HMND | 62.04 | 62.04 | 1 | 1 | Hammond Manufacturing | 2.0 | 62.04 @ Qty: 1+ | |
 | crescentelectric.com | 1120896 | 76.87 | 76.87 | 1 | In Stock | Hammond Mfg. | 76.87 @ Qty: 1+ |
