Hammond Manufacturing 1418N4D6

B005T8J55Y

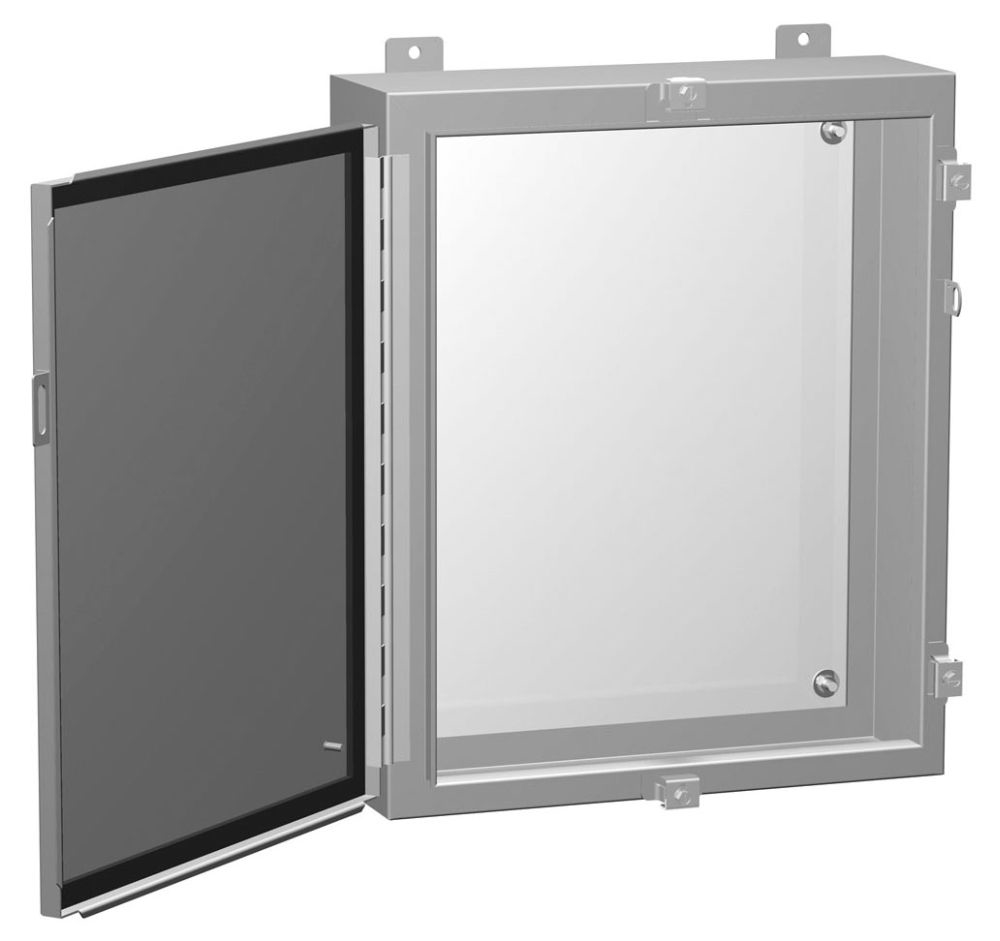

Hammond Manufacturing 1418N4D6 Panel ENCL. 20HX20WX6D

Hammond Manufacturing 1418N4D6 Panel ENCL. 20HX20WX6Dzoom

Attributes

Key Value
Alternate Part No.546-1418N4D6
ApplicationDesigned for use as ins.
Area (L x W)400in? (2581cm?)
Back Panel NumberIncluded
Base Product Number1418
BrandHammond Mfg., Hammond M.
Capacity2400 cu-in
Catalog Number1418N4D6
CategoryBoxes, Enclosures, Racks
ColorGray
Container TypeBox
Country of OriginCanada
Cover TypeHinged
Cubic Capacity2400 Cubic in
Delivery RestrictionsDue to size or weight o.
Depth6 in
Depth (In)6.00
DescriptionBOX STEEL GRAY 20"L X 2.
Description:N4 Wallmount Encl w/pan.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part Number1418N4D6-ND
Dimensions (H x W x D)20 x 20 x 6"
Door DesignHinged (Single Door)
Enclosure MountingWall Mount
Enclosure Series1418 N4
Estimated Weight40
FeaturesInterior Panels, Mounti.
FinishANSI 61 Gray, Powder Co.
Gross Weight40 lbs
Height20 in, 6.000" (152.40mm)
Height (In)20.00
IEC RatingIP66
Inner PanelIncluded
IP RatingIP54
Item TypeN4 Wallmount Encl w/pan.
LockPadlock
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part No.1418N4D6
Manufacturer Product Nu.1418N4D6
Manufacturer Standard L.4 Weeks
MaterialSteel, 14 ga Mild Steel.
Material Flammability R.-
MFG Part #:1418N4D6
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
NEMA RatingNEMA 3R/4/12/13/IP66, 3.
Nema Rating3R, 4, 13
NEMA Type3R, 4, 12 and 13
Number of Doors1
Outside Depth152 mm
Outside Height508 mm
Outside Width508 mm
PackageBox
Panel Height432 mm
Panel Size17 in L x 17 in W
Panel Width432 mm
Part Number1418N4D6
ProductWall Mount Enclosures
Product CategoryElectrical Enclosures
Product StatusActive
RatingsIP66, JIC EGP-1-1967, N.
Series1418, 1418 Series, 1418.
Shipping InfoShipped from Digi-Key
Size20 in x 20 in x 6 in
Size / Dimension20.000" L x 20.000" W (.
Special FeaturesFormed 14 gauge steel b.
Standardcsa, ul, ce
StandardsUL, CSA, IEC, RoHS
Sub Brand1418 N4 Series
Supplier:Hammond Manufacturing
Thickness14 Gauge
TypeSingle Door, Junction B.
Unit Weight18.144 kg
UPC623980378800, 062398037.
UPC Code623980378800
UPC:623980378800
VentilationNot Available
Weight40 lbs (18.1 kg)
Width20 in
Width (In)20.00

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1418N4D6361.451In StockHAMMOND MFG361.45 @ 1
thumbzoomCarlton Bates Company62398037880435.281In StockHAMMOND MANUFACTURING435.28 @ 1
thumbzoomSolutions Direct1418N4D6499.141In StockHammond Manufacturing499.14 @ 1
AmazonTPB005T8J55Y500.731In Stock5Hammond Manufacturing500.73 @ 1
Hawk Electronics1418N4D6502.01In StockHammond Mfg.502.0 @ 1
thumbzoomDigi-Key2359506504.771In StockHammond Manufacturing40.0504.77 @ 1
thumbzoomWalker Industrial1418N4D6511.411In Stock17Hammond Manufacturing511.41 @ 1
thumbzoomNewark24B6176522.12129HAMMOND522.12 @ 1
us.rs-online.com70305911541.391In StockHammond Manufacturing541.39 @ 1
Dale-Electric1418N4D6566.61In StockHammond Manufacturing Co., Inc.566.6 @ 1
thumbzoomturtle.comHMC 1418N4D6571.391In StockHammond Manufacturing571.39 @ 1
thumbzoommotorsandcontrol.com1418N4D6584.481In StockHammond Manufacturing40.0584.48 @ 1
thumbzoomGalco1418N4D6-HMND585.221In StockHammond Manufacturing40.0585.22 @ 1
thumbzoomgordonelectricsupply.com1418N4D6590.01In StockHAMMOND MFG590.0 @ 1
thumbzoomAutomation Direct1418N4D6594.0131Hammond40.0594.0 @ 1
kscdirect.comHAM 1418N4D6613.631In StockHammond Manufacturing613.63 @ 1
thumbzoomswatee.com1418N4D6678.56116Hammond678.56 @ 1
GuardianHAMM-1418N4D6818.761In StockHammond Mfg818.76 @ 1
thumbzoomcrescentelectric.com259503859.521In StockHammond Mfg.859.52 @ 1
