Hammond Manufacturing 1418N4E6

B005T8JO0U

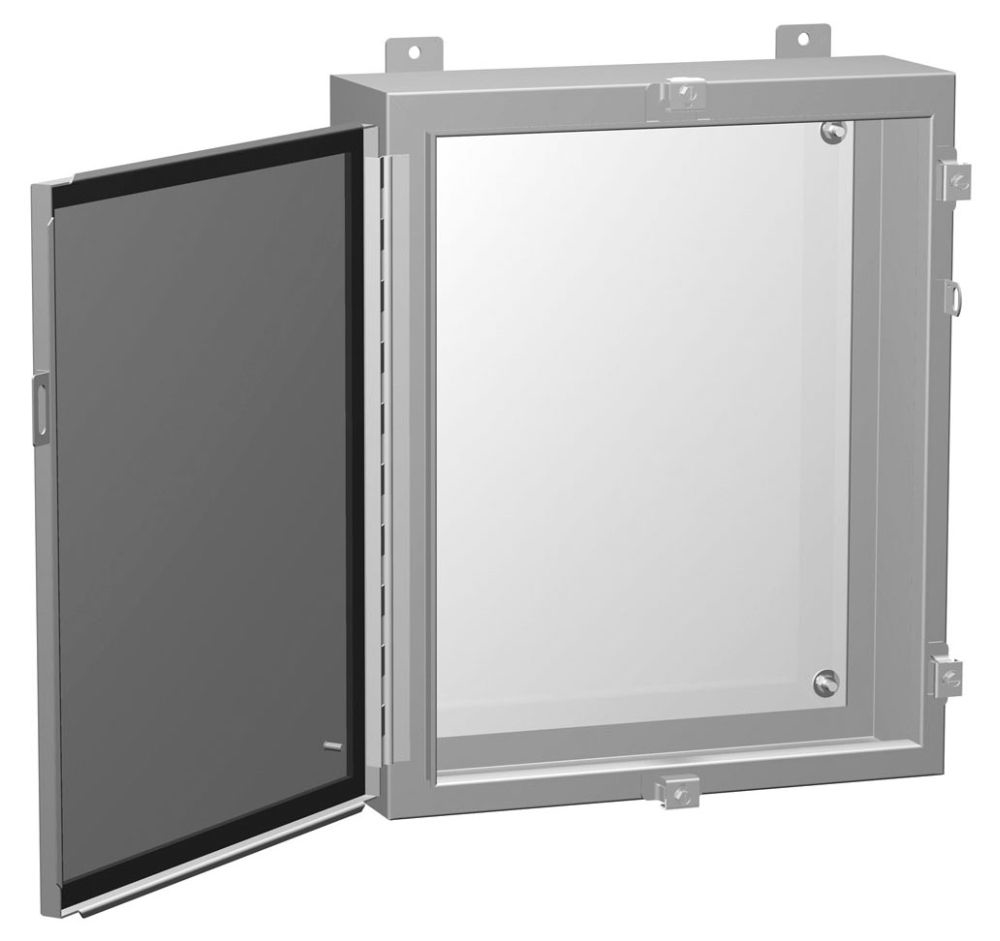

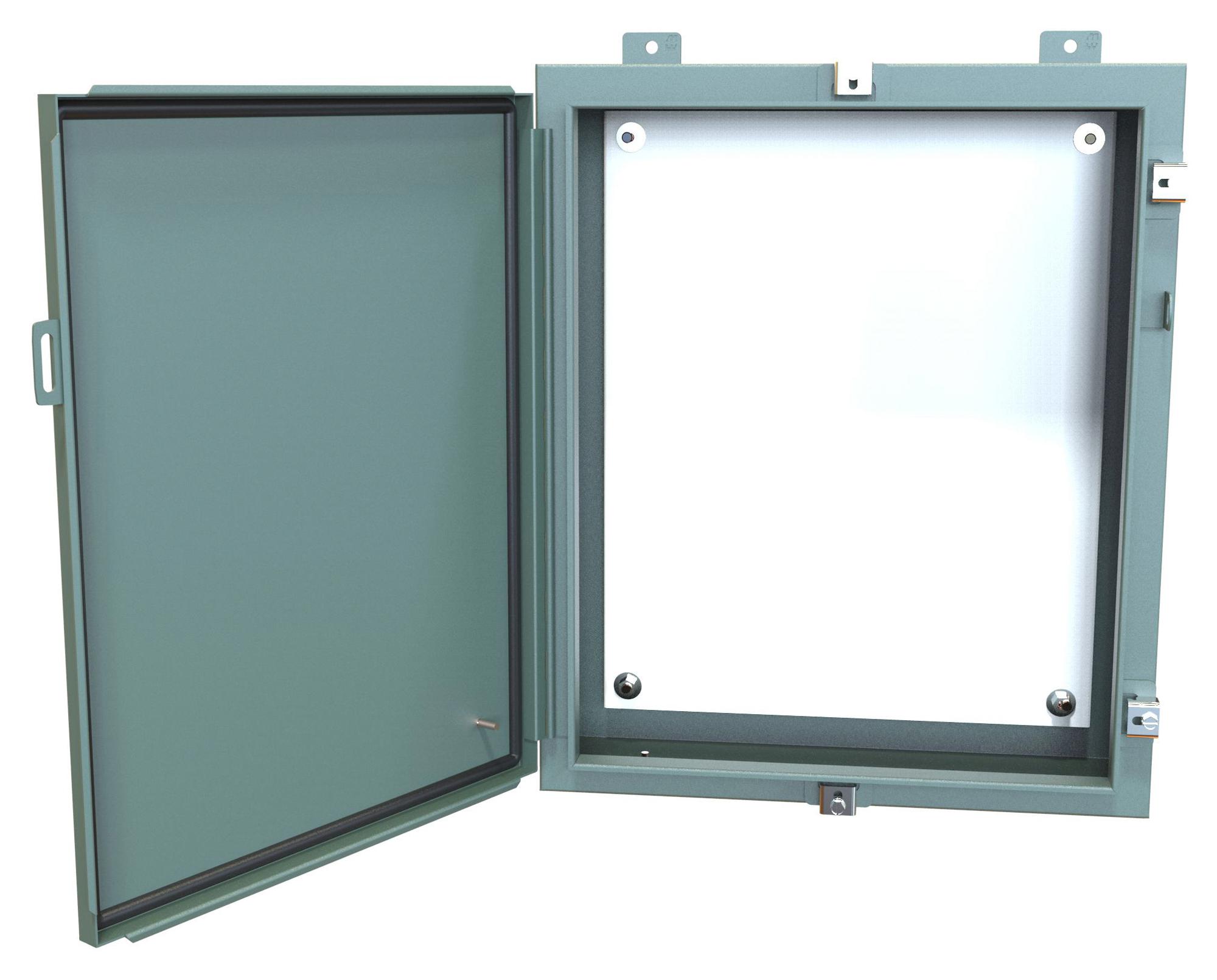

Hammond Manufacturing 1418N4E6 NEMA4 PNL ENCL 24X20X6

Hammond Manufacturing 1418N4E6 NEMA4 PNL ENCL 24X20X6zoom

Attributes

Key Value
ApplicationDesigned for use as ins.
ApprovalsCE, CSA, UL
Approximate Depth6" (152mm)
Approximate Height24" (610mm)
Approximate Width20" (508mm)
Area (L x W)480in? (3097cm?)
Back Panel NumberIncluded
Base Product Number1418
BrandHammond Mfg.
Capacity2880 cu-in
Catalog Number1418N4E6
CategoryBoxes, Enclosures, Racks
ColorGray
CompositionMetallic
Container TypeBox
Country of OriginCanada
Cover DesignHinged
Cover TypeHinged
Cubic Capacity2880 Cubic in
Depth6 in
Depth (In)6.00
DescriptionBOX STEEL GRAY 24"L X 2.
Description:N4 Wallmount Encl w/pan.
DesignHinged Door, Lid
Detailed DescriptionBox Metal, Steel Gray H.
Digi-Key Part Number1418N4E6-ND
Dimensions24 x 20 x 6 . ; 610 x 5.
Dimensions (H x W x D)24 x 20 x 6"
Door DesignHinged (Single Door)
Enclosure MountingWall Mount
Enclosure Series1418 N4
Estimated Weight53
Family SeriesHammond Manufacturing E.
FeaturesInterior Panels, Mounti.
FinishANSI 61 Gray, Powder Co.
Gross Weight56 lbs
Height24 in, 6.000" (152.40mm)
Height (In)24.00
IEC RatingIP66
Inner PanelIncluded
IP RatingIP54
Item Number1418N4E6
Item TypeN4 Wallmount Encl w/pan.
Latching MechanismClamps
LockPadlock
Locking FeatureClamp
Made in USANo
ManufacturerHammond Manufacturing C.
Manufacturer Part Number1418N4E6
Manufacturer Product Nu.1418N4E6
Manufacturer Standard L.4 Weeks
MaterialSteel, 14 ga Mild Steel.
Material Flammability R.-
MFG Part #:1418N4E6
MfrHammond Manufacturing
MountingFeet, Wall
Mounting TypeWall
Nema Rating3R, 4, 13
NEMA RatingNEMA 3R/4/12/13/IP66, 3.
NEMA Type3R, 4, 12 and 13
Net Weight53 lbs
Nominal Depth6 "
Nominal Height24 "
Nominal Width20 "
Number of Doors1
Options IncludedGasketed Cover, Ground .
PackageBox
Panel IncludedYes
Panel Size21 in L x 17 in W
Part Number1418N4E6
Part StatusActive
Product Series1418N4
Product StatusActive
RatingsIP66, JIC EGP-1-1967, N.
RoHSYes
Series1418, 1418 Series, 1418.
Shipping InfoShipped from Digi-Key
SizeMedium, 24 in x 20 in x.
Size / Dimension24.000" L x 20.000" W (.
Special FeaturesStainless steel continu.
Standardcsa, ul, ce
StandardsUL, CSA, IEC, RoHS
Sub Brand1418 N4 Series
Supplier:Hammond Manufacturing
Thickness14 Gauge
TypeJunction Box, Wall Moun.
UPC623980379401, 062398037.
UPC Code623980379401
UPC:623980379401
Weight56 lbs (25.4 kg)
Width20 in
Width (In)20.00
Window/Clear CoverNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1418N4E6405.951In StockHAMMOND MFG405.95 @ 1
thumbzoomCarlton Bates Company62398037940488.461In StockHAMMOND MANUFACTURING488.46 @ 1
thumbzoomNewark24B6180559.83115HAMMOND559.83 @ 1
thumbzoomSolutions Direct1418N4E6560.31In StockHammond Manufacturing560.3 @ 1
Hawk Electronics1418N4E6564.01In StockHammond Mfg.564.0 @ 1
thumbzoomDigi-Key2359492566.631In StockHammond Manufacturing56.0566.63 @ 1
thumbzoomGalco1418N4E6-HMND572.471In StockHammond Manufacturing56.0572.47 @ 1
thumbzoomWalker Industrial1418N4E6574.091In Stock17Hammond Manufacturing574.09 @ 1
us.rs-online.com70165425584.111In StockHammond Manufacturing584.11 @ 1
Dale-Electric1418N4E6636.041In StockHammond Manufacturing Co., Inc.636.04 @ 1
thumbzoomturtle.comHMC 1418N4E6641.071In StockHammond Manufacturing641.07 @ 1
thumbzoommotorsandcontrol.com1418N4E6656.111In StockHammond Manufacturing53.0656.11 @ 1
thumbzoomgordonelectricsupply.com1418N4E6660.01In StockHAMMOND MFG660.0 @ 1
thumbzoomAutomation Direct1418N4E6667.0110Hammond53.0667.0 @ 1
kscdirect.comHAM 1418N4E6688.831In StockHammond Manufacturing688.83 @ 1
thumbzoomcrescentelectric.com355463964.851In StockHammond Mfg.964.85 @ 1
