HAMMOND 270DAX

B088GTMBGK

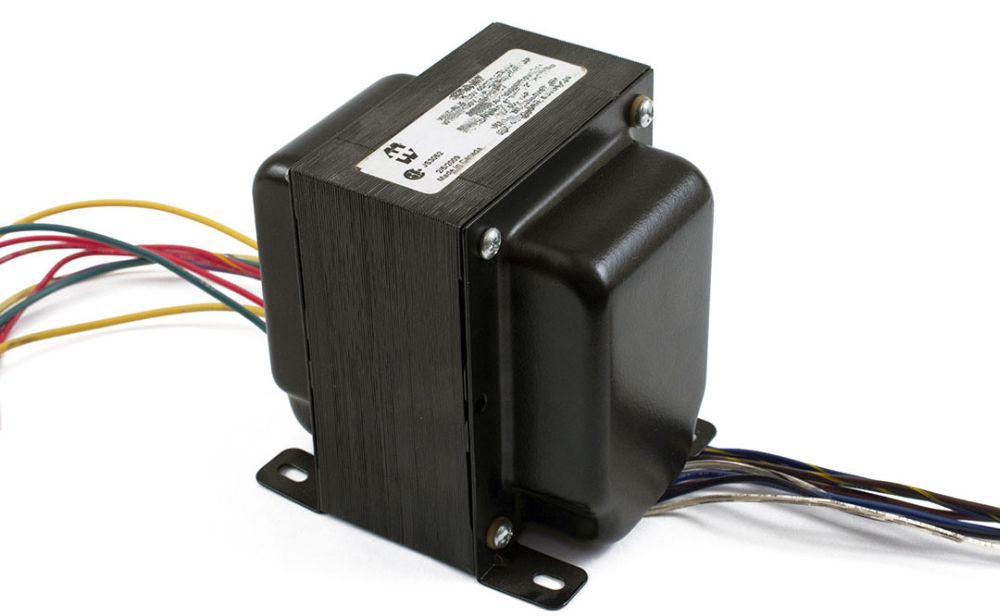

270DAX, Power Transformer 2000Vrms 146VA 11 Terminal Wire Lead Flange Mount (1 Items)

270DAX, Power Transformer 2000Vrms 146VA 11 Terminal Wire Lead Flange Mount (1 Items)zoom

Attributes

Key Value
1Case Quantity
117 VAC, 50/60 HzFirst Voltage
2.5''Length (in)
270DAXStock Code
3.06''Height (in)
3.2''Width (in)
3.5 lbsWeight (lb.)
520V C.T. @ 104ma.Secondary Voltage
62398024178UPC
76VAPower Rating (VA)
ApprovalsCSA
Center TapYes
ConfigurationSingle Primary/Triple S.
CSA, RoHSUL Listed
Current - Output (Max)104mA, 3.5A
Description:260-0-260,90MA, 6.3V@4A.
EnclosedYes
Family SeriesHammond Manufacturing T.
For additional options .Notes
Gross Weight0 lbs
HammondBrand
Height - Seated (Max)79.50mm
Insulation ClassClass A
Item Number270DAX
ManufacturerHammond Manufacturing C.
Manufacturer Part Number270DAX
MFG Part #:270DAX
MfrHammond Manufacturing
MountingChassis
Mounting TypeChassis Mount
Net Weight0 lbs
Part StatusActive
Power - Max76VA
Power TransformersFamily
Primary Voltage117 V
Primary Winding(s)Single
Product Series200
RoHSYes
Secondary Voltage520 V
Secondary Winding(s)Dual
Size / Dimension63.50mm L x 76.20mm W
Supplier:Hammond Manufacturing
Temperature Rise (F)221 ?F
TerminationWire Leads
Termination StyleWire Leads
TypeLaminated Core, Isolati.
UPC062398024178
UPC:62398024178
VA Rating76 VA
Voltage - Isolation2000Vrms
Voltage - Primary117V
Voltage - Secondary (Fu.520V, 6.3V
Weight3.5 lbs (1.6 kg)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com270DAX64.141In StockHAMMOND MFG64.14 @ 1
thumbzoomDigi-KeyHM5002-ND66.81In StockHammond Manufacturing66.8 @ 1
Hawk Electronics270DAX73.81In StockHammond Mfg.73.8 @ 1
thumbzoomCarlton Bates Company6239802417874.211In StockHAMMOND MANUFACTURING74.21 @ 1
Dale-Electric270DAX85.571In StockHammond Manufacturing Co., Inc.85.57 @ 1
Newark50H679588.47111HAMMOND88.47 @ 1
AmazonSCB005T7KPOA88.791In StockHammond Manufacturing88.79 @ 1
thumbzoomgordonelectricsupply.com270DAX89.091In StockHAMMOND MFG89.09 @ 1
kscdirect.comHAM 270DAX92.931In StockHammond Manufacturing92.93 @ 1
thumbzoomGalco270DAX-HMND103.271In StockHammond Manufacturing103.27 @ 1
thumbzoomRadwell270DAX120.01In StockHAMMOND MANUFACTURING120.0 @ 1
thumbzoombulbspro.com270DAX123.921In StockHammond123.92 @ 1
