mpn:
brand:
manufacturer:
MPN:
Description:

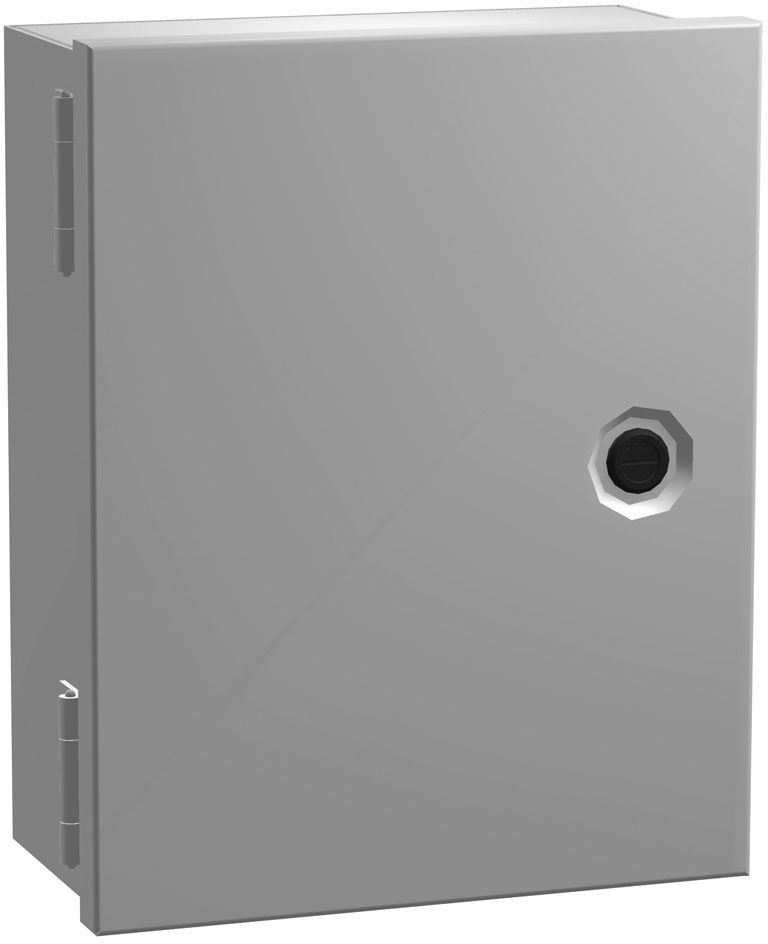

Enclosure, Wallmount, Hinge Door, Quarter Turn, NEMA 1, Steel, Gray, 10x10x4
Weight:
0.5625
Weight:
9.0 LB
Preferred Price:
102.69
Price:
102.69
Min Simple Price:
56.12
Absolute Min Price:
79.69
Min Price:
79.69
Dimensions:
[10.0, 10.0, 10.0]
qty:
21
simpleSku:
jgwODA:::N1J10104
sku:
jgwODA::E4:N1J10104@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
hammond manufacturing
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Application | Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection. |
| Approvals | CSA, UL |
| Approximate Depth | 4" (102mm) |
| Approximate Height | 10" (254mm) |
| Approximate Width | 10" (254mm) |
| Back Panel Number | Included |
| Body Height | 10 in. |
| Body Length | 10 in |
| Body Width | 4 in. |
| Brand | Hammond Mfg. |
| Catalog Number | N1J10104 |
| Color | Gray |
| Composition | Metallic |
| Configuration | Without Knock-Outs |
| Country of Origin | Canada |
| Cover Design | Hinged |
| Cover Type | Hinged |
| Cubic Capacity | 10 in x 10 in x 4 in |
| Depth | 4 in |
| Depth (In) | 4.00 |
| Description: | N1 Enclosure w/panel - 10 x 10 x 4 - Steel/Gray |
| Dimensions | 10 x 10 x 4 . ; 254 x 254 x 102 in ; mm |
| Dimensions (H x W x D) | 10 x 10 x 4" |
| Door Design | Hinged (Single Door) |
| Enclosure Mounting | Wall Mount |
| Enclosure Series | N1J |
| Estimated Weight | 9 |
| Family Series | Hammond Manufacturing Enclosures, N1J Series |
| Finish | ANSI 61 Gray, Gray Powder (Enclosure and Cover), White Powder (Inner Panel), Powder Coated |
| Gross Weight | 9 lbs |
| Height | 10 in |
| Height (In) | 10.00 |
| IEC Rating | IP20 |
| Inner Panel | Included |
| IP Rating | IP20 |
| Item Number | N1J10104 |
| Item Type | Type 1 Mild Steel Small Wallmount Enclosure |
| Latching Mechanism | Quarter-Turn Latch |
| Lock | Quarter-Turn Latch |
| Locking Feature | Quarter Turn |
| Made in USA | No |
| Manufacturer | Hammond Manufacturing Co., Inc., Hammond Manufacturing |
| Manufacturer Part Number | N1J10104 |
| Material | Steel, 16 ga Mild Steel, Metal, Mild Steel |
| MFG Part #: | N1J10104 |
| Mounting | Wall |
| Mounting Type | Wall |
| Nema Rating | 1 |
| NEMA Rating | 1, NEMA 1 |
| NEMA Type | 1 |
| Net Weight | 9 lbs |
| Nominal Depth | 4 " |
| Nominal Height | 10 " |
| Nominal Width | 10 " |
| Number of Doors | 1 |
| Options Included | Ground Stud |
| Panel Included | Yes |
| Panel Size | 8-1/4 in L x 8-1/4 in W |
| Part Number | N1J10104 |
| Product Series | N1J |
| RoHS | Yes |
| Series | N1J, N1J Series |
| Size | Small, 10 in x 10 in x 4 in |
| Special Features | Formed and spot welded from 16 gauge steel. Formed steel covers close by use of slotted quarter turn latch. Full swing door using butt hinges. Through holes in back for wall mounting. Bonding stud is provided on the door and a grounding stud is provided on the box. Includes 14 gauge steel inner panel., Hinged ; Inner Panel |
| Standard | csa, ul, ce |
| Standards | UL, CSA, IEC, RoHS |
| Sub Brand | N1J Series |
| Supplier: | Hammond Manufacturing |
| Type | Junction Box, Wall Mount Enclosures |
| UPC | 062398028125, 623980281254 |
| UPC Code | 623980281254 |
| UPC: | 623980281254 |
| Width | 10 in |
| Width (In) | 10.00 |
| Window/Clear Cover | No |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | N1J10104 | 56.12 | 56.12 | 1 | In Stock | HAMMOND MFG | 56.12 @ Qty: 1+ | |||
 | turtle.com | HMC N1J10104 | 65.89 | 65.89 | 1 | In Stock | Hammond Manufacturing | 65.89 @ Qty: 1+ | ||
 | Carlton Bates Company | 62398028125 | 66.53 | 66.53 | 1 | In Stock | HAMMOND MANUFACTURING | 66.53 @ Qty: 1+ | ||
 | Walker Industrial | N1J10104 | 70.09 | 70.09 | 1 | In Stock | 17 | Hammond Manufacturing | 70.09 @ Qty: 1+ | |
 | Solutions Direct | N1J10104 | 72.83 | 72.83 | 1 | In Stock | Hammond Manufacturing | 72.83 @ Qty: 1+ | ||
| Hawk Electronics | N1J10104 | 73.5 | 73.5 | 1 | In Stock | Hammond Mfg. | 73.5 @ Qty: 1+ | |||
| Dale-Electric | N1J10104 | 77.65 | 77.65 | 1 | In Stock | Hammond Manufacturing Co., Inc. | 77.65 @ Qty: 1+ | |||
 | Galco | N1J10104-HMND | 78.34 | 78.34 | 1 | In Stock | Hammond Manufacturing | 9.0 | 78.34 @ Qty: 1+ | |
 | motorsandcontrol.com | N1J10104 | 80.1 | 80.1 | 1 | In Stock | Hammond Manufacturing | 9.0 | 80.1 @ Qty: 1+ | |
 | gordonelectricsupply.com | N1J10104 | 80.59 | 80.59 | 1 | In Stock | HAMMOND MFG | 80.59 @ Qty: 1+ | ||
| Digi-Key | 2569382 | 83.08 | 83.08 | 1 | In Stock | hammond-manufacturing | 83.08 @ Qty: 1+ | |||
| kscdirect.com | HAM N1J10104 | 84.1 | 84.1 | 1 | In Stock | Hammond Manufacturing | 84.1 @ Qty: 1+ | |||
 | Newark | 73J1718 | 86.08 | 86.08 | 1 | 93 | HAMMOND | 86.08 @ Qty: 1+ | ||
 | Automation Direct | N1J10104 | 91.0 | 91.0 | 1 | 22 | Hammond | 9.0 | 91.0 @ Qty: 1+ | |
| us.rs-online.com | 70164426 | 94.08 | 94.08 | 1 | 2 | Hammond Manufacturing | 94.08 @ Qty: 1+ | |||
 | crescentelectric.com | 587045 | 101.8 | 101.8 | 1 | In Stock | Hammond Mfg. | 101.8 @ Qty: 1+ |
